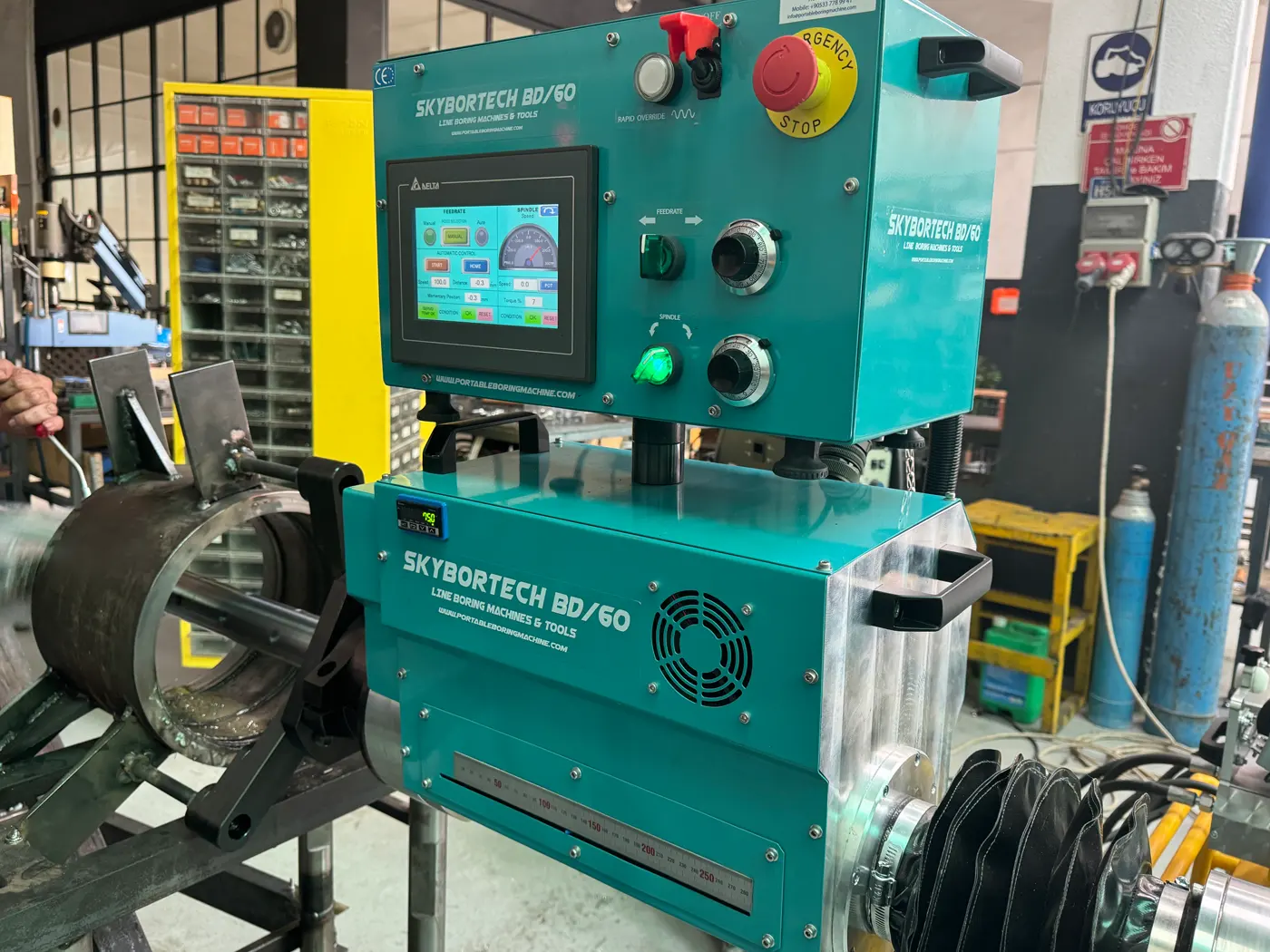

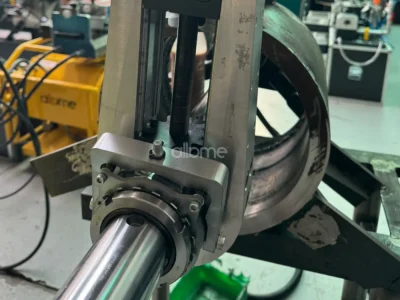

BD 60 Line Boring Machine
The BD 60 is a heavy duty benchmount line boring machine suitable for workshop or on site solutions. With its 60 mm bar shaft, the author them can drill between 62 and a whopping 700 mm with it-optimized for everything from construction to mining to heavy machine repair.
Description
BD 60 Portable Line Boring Machine
The BD 60 is a heavy duty benchmount line boring machine suitable for workshop or on site solutions. With its 60 mm bar shaft, the author them can drill between 62 and a whopping 700 mm with it-optimized for everything from construction to mining to heavy machine repair.

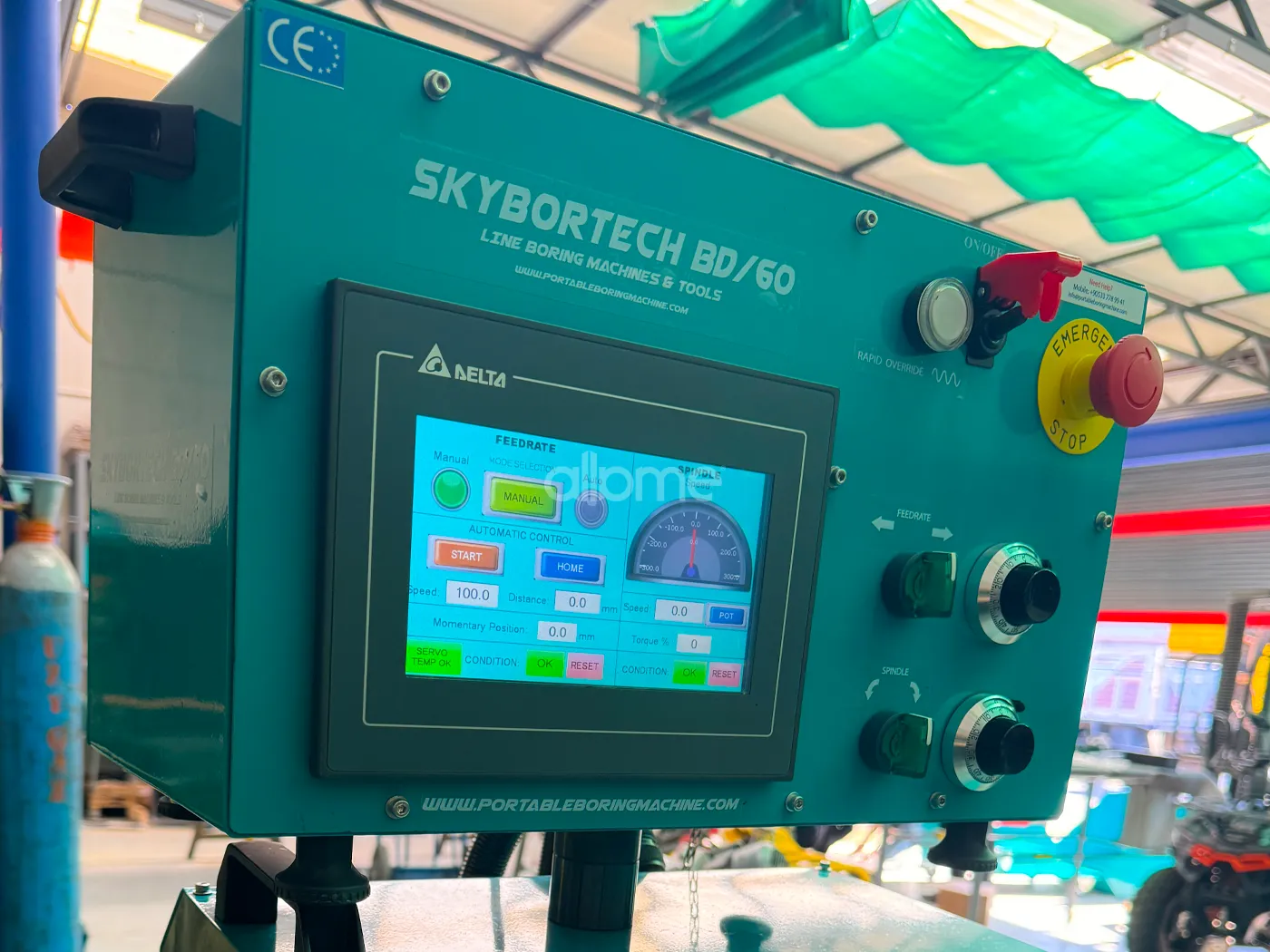

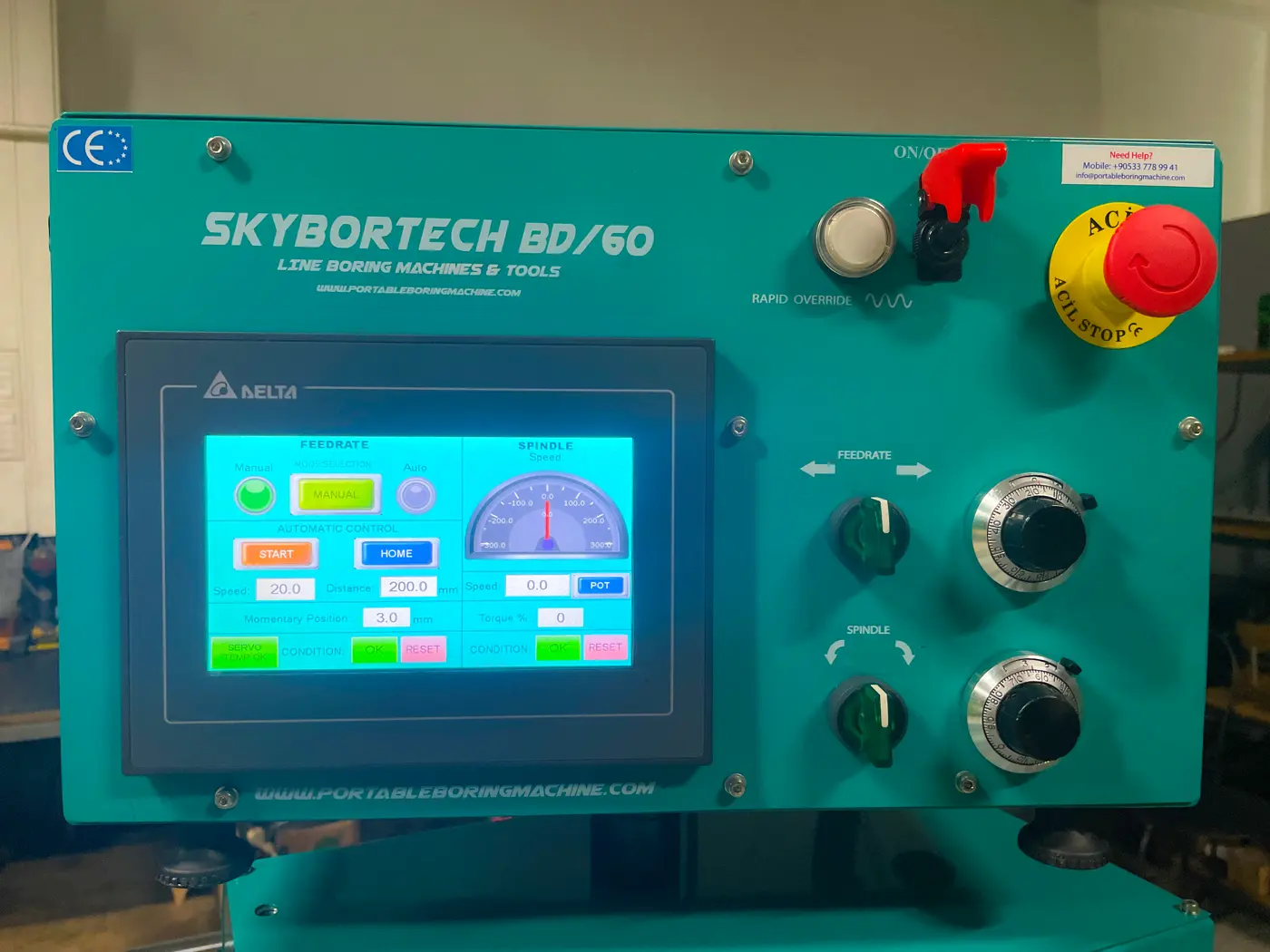

AC servo system driven, BD 60 features a high quality rotation and feed is accurate. The 1.5 kW motorprovides constant torque and accuracy even under the toughest loads. The servo-controlled feed system provides fine adjustment in the range of 0.05 mm–95 mm, providing control over depth and accuracy.

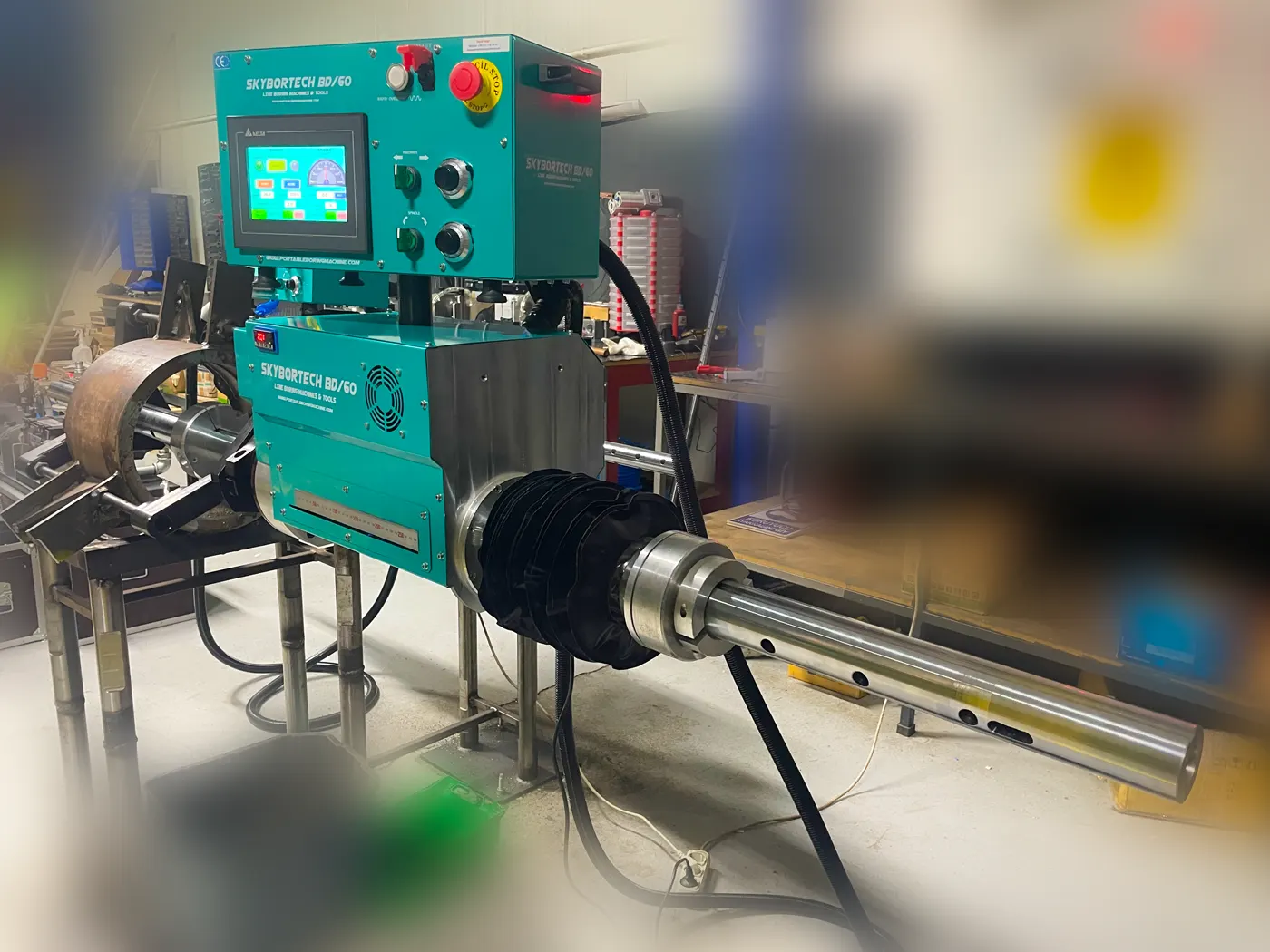

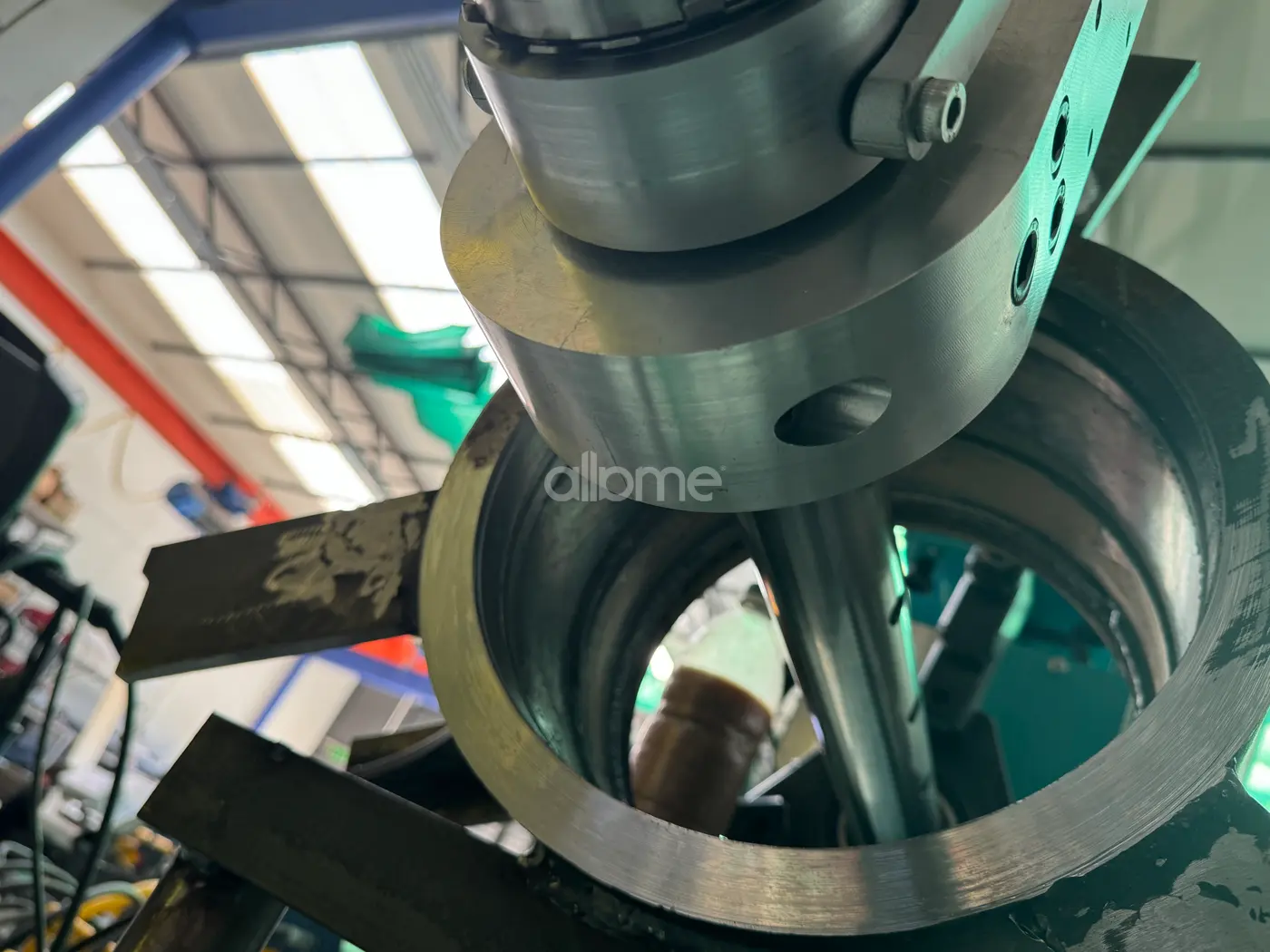

The BD 60 is lightweight, portable and quick to set-up for use in the field. Equipped for both bore welding and bore repairs, it provides consistent results while cutting downtime and extending equipment life.
| BD 60 Technical Specifications | |
|---|---|

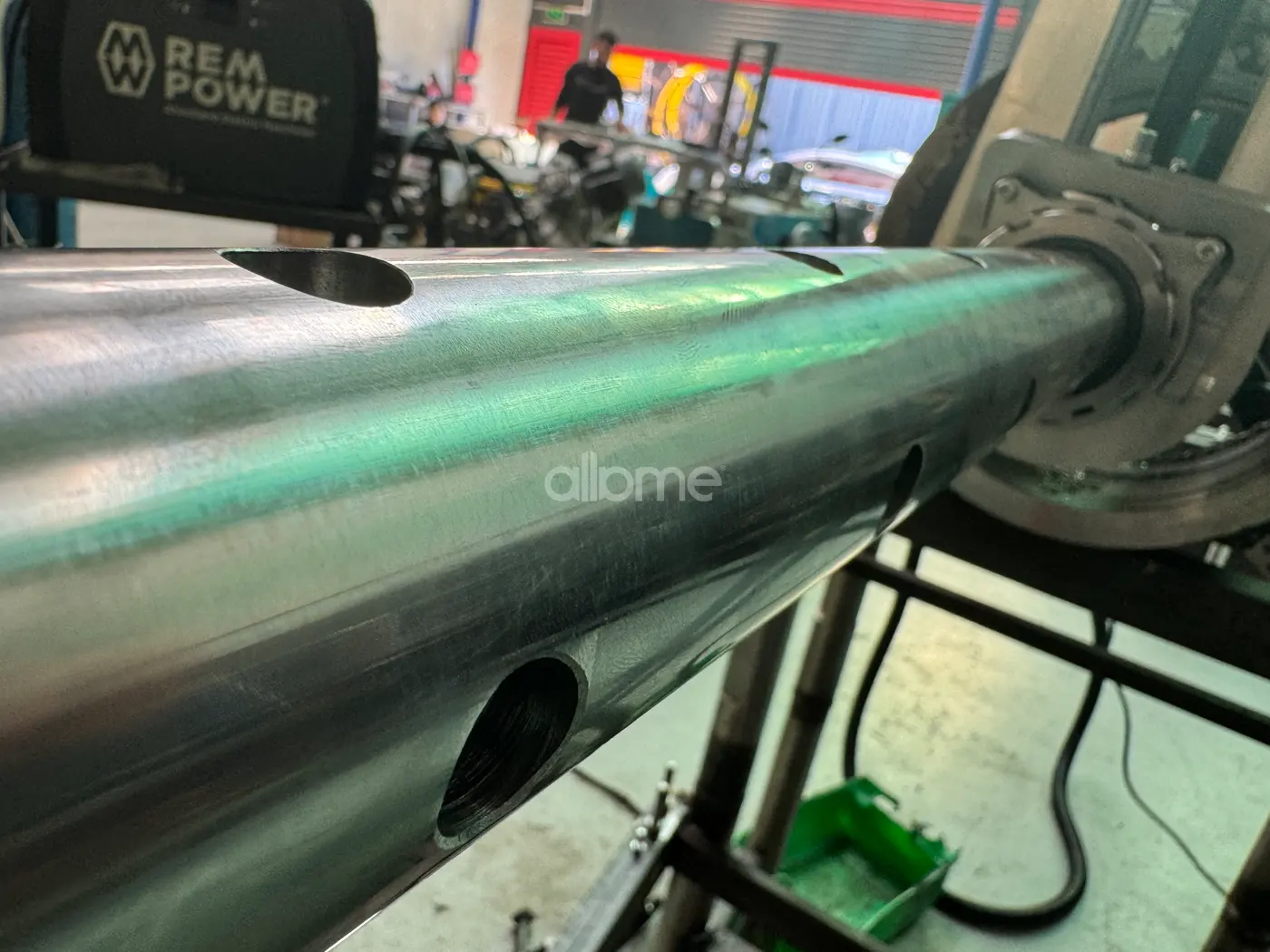

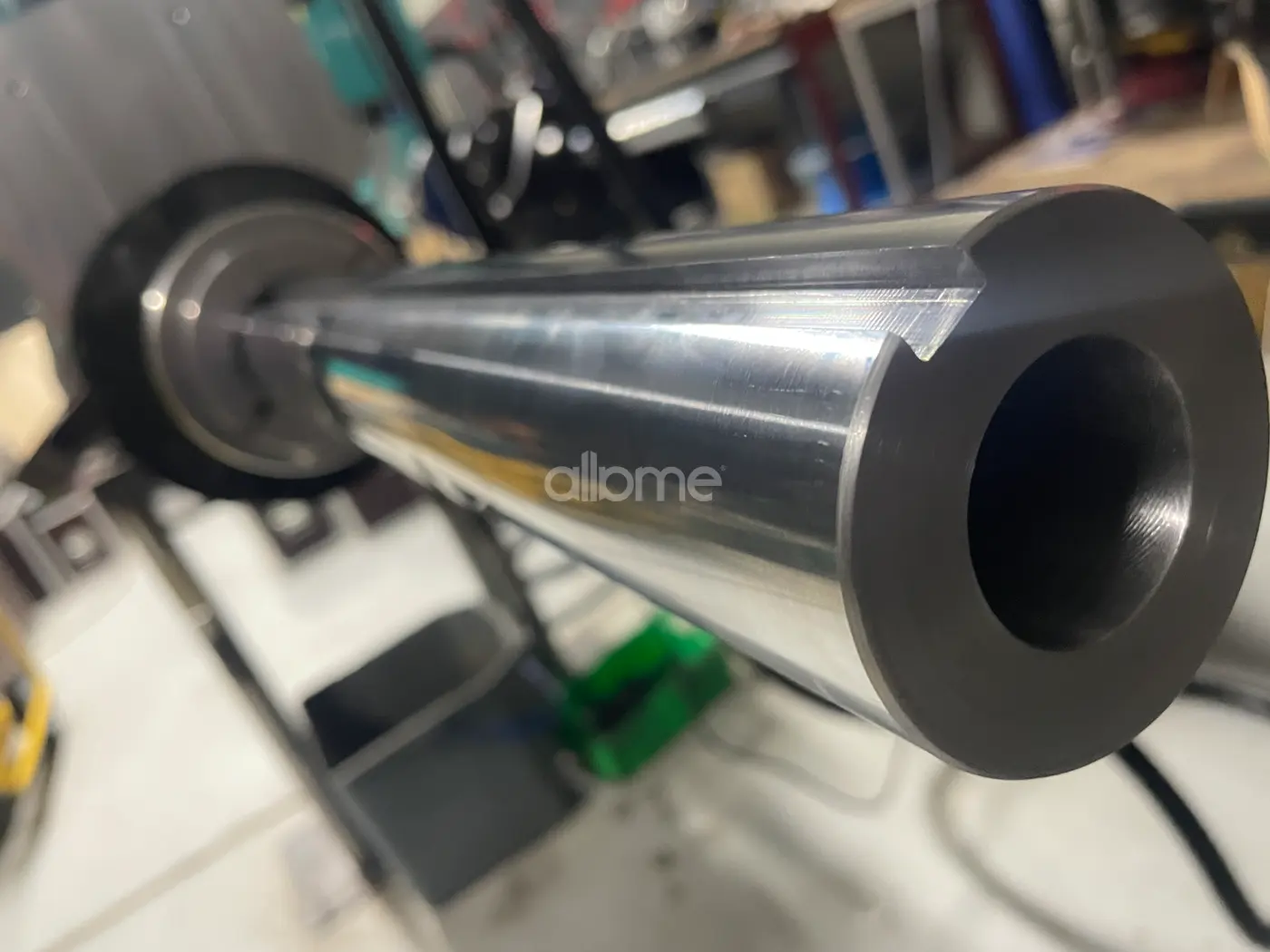

| Bar Shaft Diameter | 60 mm |
| In-hole Machining Diameter (Boring) | From 62 mm to 700 mm |
| In-hole Machining Diameter (Welding) | From 65 mm to 700 mm |
| Electric Motors & Drive Specifications | |
| Bar Shaft Turn Motor Power | 1500 Watts, 5000 RPM, 220–240 VAC (Servo System) |
| Motor Gearbox | 1/10 Rotation, 360 Nm Max |
| Electric Drive Speed Range | 1–170 RPM |
| Working Voltage | 220–240 VAC |
| Feed System | AC Servo Motor, 400 Watts |
| Servo Speed Adjustment | 0.05 mm – 95 mm |
| Feed Motor Power | 400 Watts, 5000 RPM, 220–240 VAC (Servo System) |
| Feed Motor Gearbox | 1/10 Rotation, 40 Nm Max |
| Stroke | 230 mm |
