HydroSky Cable Blowing Machine
The HYDROSKY Fiber Cable Blowing Machine has been specifically designed to provide safe and quick installation of fiber optic cables. It runs on a self-propelled hydraulic system that provides powerful and seamless pushing power.
Description
0%
HYDROSKY
Hydraulic Strength,
Fiber Speed
Cable diameter range from 6mm up to 24mm,
Microduct diameter range from 12mm up to 50mm,
Working with self powered hydraulic power unit with two hydraulic motors.
Microduct diameter range from 12mm up to 50mm,
Working with self powered hydraulic power unit with two hydraulic motors.
The HYDROSKY Fiber Cable Blowing Machine has been specifically designed to provide safe and quick installation of fiber optic cables. It runs on a self-propelled hydraulic system that provides powerful and seamless pushing power.
The HYDROSKY fits cable sizes of 6 mm up to 24 mm and microducts size from 12mm up to 50 mm. Dual hydraulic motor drive system makes the operation stable and accuracy high even in long distance.
Its heavy‐duty construction and adjustable pushing force and speed make it easy to operate. Hydraulic driven, from its 9 HP Honda engine, for constant force in any field condition.

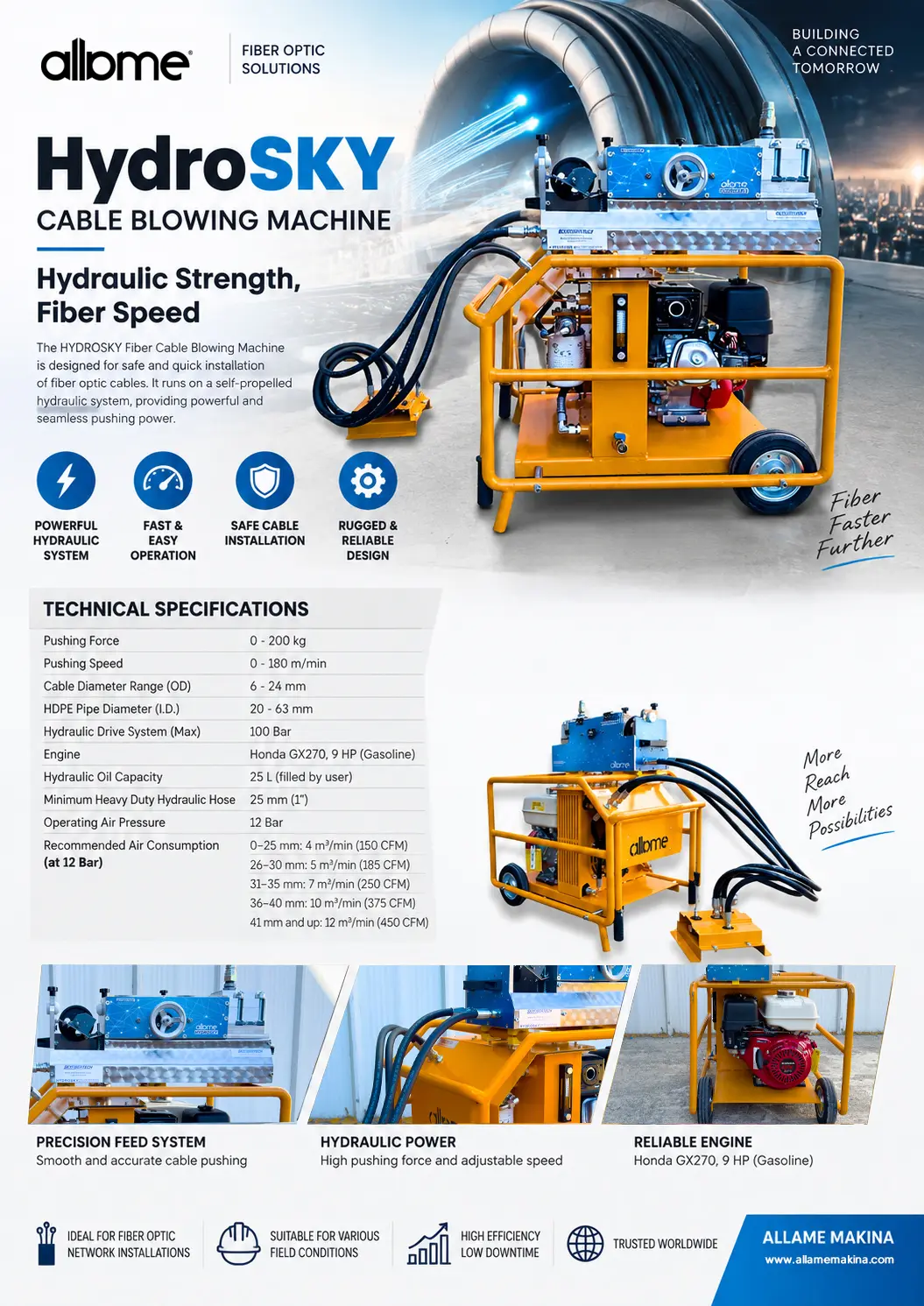

Technicial Specifications
| Specification | Value |
|---|---|
| Pushing Force | 0 – 200 kg |
| Pushing Speed | 0 – 180 m/min |
| Cable Diameter Range (OD) | 6 – 24 mm |
| HDPE Pipe Diameter (O.D.) | 20 – 63 mm |
| Hydraulic Drive System (Max) | 100 Bar |
| Engine | Honda GX270, 9 HP (Gasoline) |
| Hydraulic Oil Capacity | 25 L (filled by user) |
| Minimum Heavy Duty Hydraulic Hose | 25 mm (1″) |
| Operating Air Pressure | 12 Bar |
| Recommended Air Consumption (at 12 Bar) | 0–25 mm: 4 m³/min (150 CFM) 26–30 mm: 5 m³/min (185 CFM) 31–35 mm: 7 m³/min (250 CFM) 36–40 mm: 10 m³/min (375 CFM) 41 mm and up: 12 m³/min (450 CFM) |
HydroSKY Additional Features

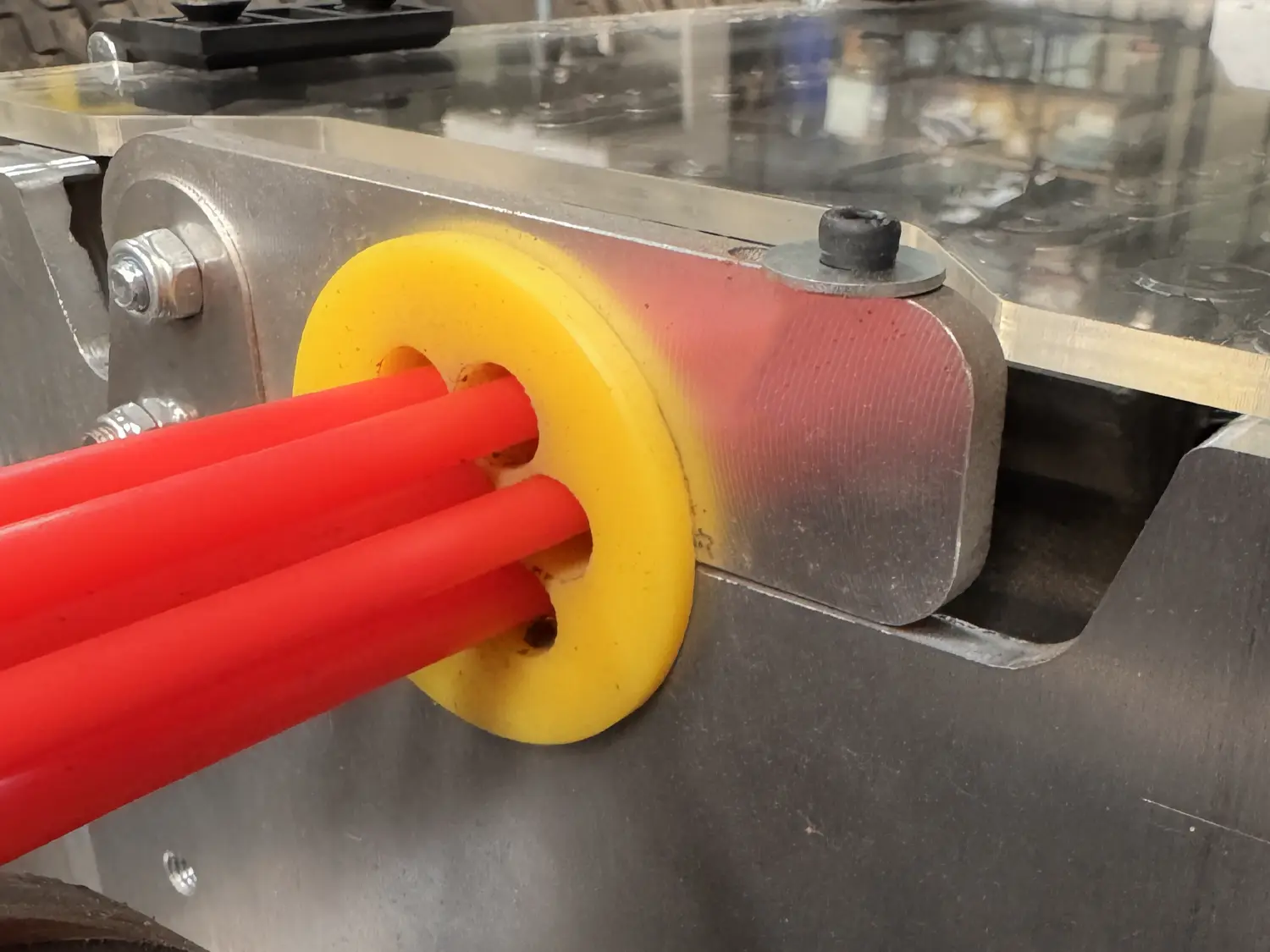

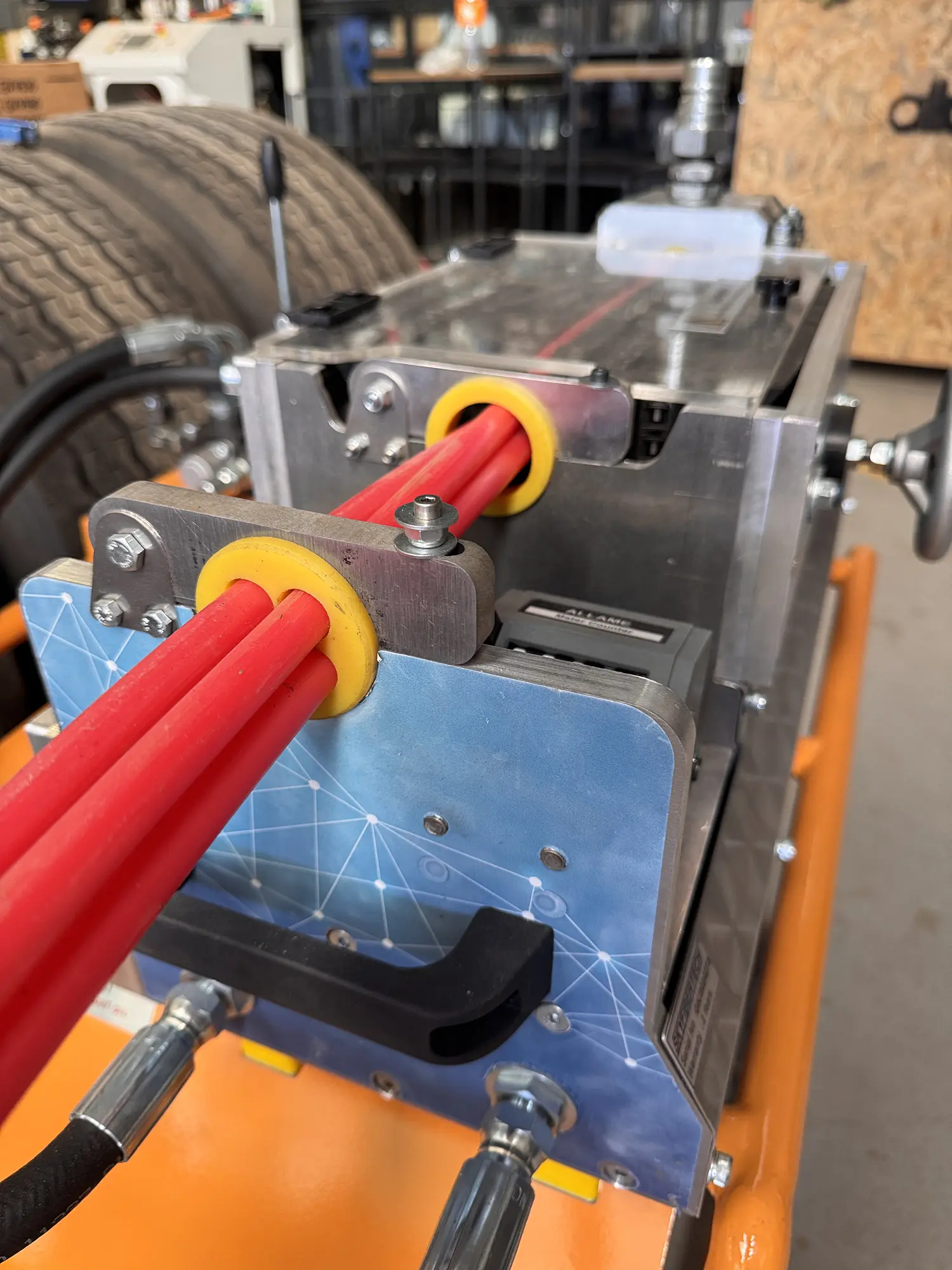

Optional Microduct Blowing System
The HydroSKY can be configured for both fiber optic cable blowing and microduct blowing applications.
In addition to blowing fiber optic cables, HydroSKY can also be equipped to install microduct pipes through existing ducts.
The Microduct Blowing System is an optional configuration and must be requested before placing the order.

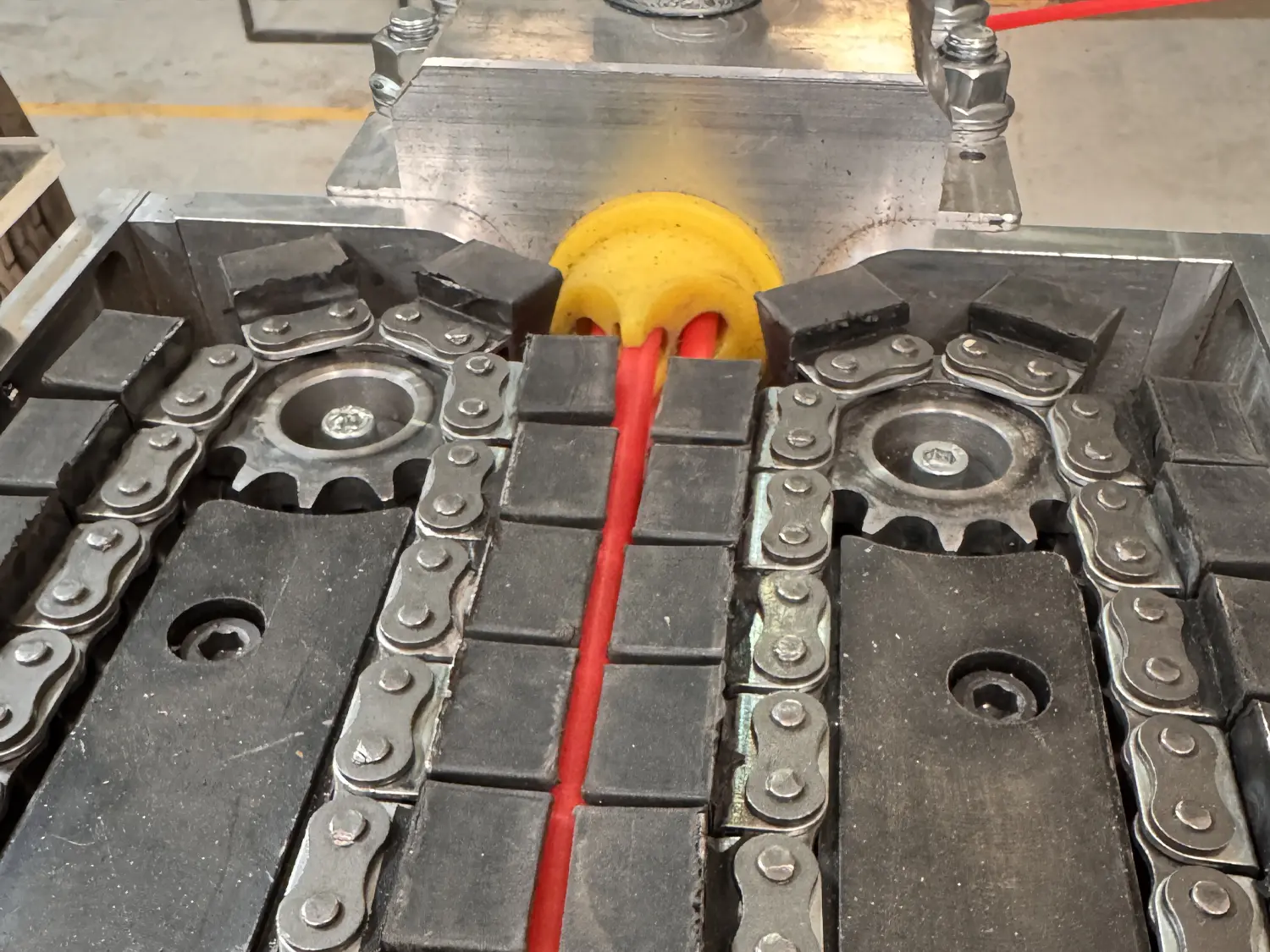

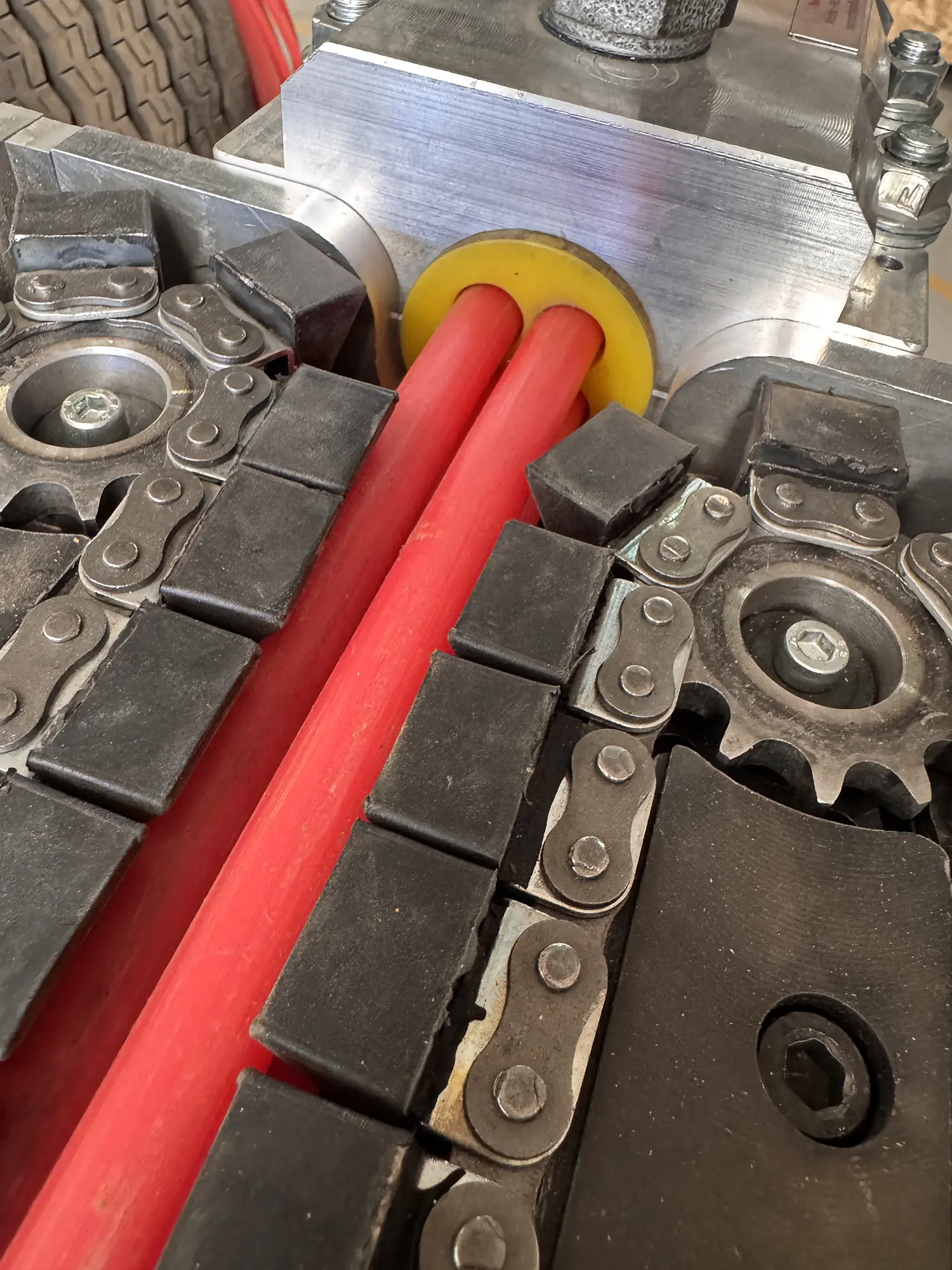

Microduct Blowing Capability
With the appropriate microduct configuration, HydroSKY can feed and install multiple microduct pipes through the installation route.
The system is designed for microduct applications such as:
- 7 × 7 mm microduct
- 6 × 10 mm microduct
- 5 × 12 mm microduct
- 4 × 14 mm microduct
The actual configuration should be selected according to the microduct dimensions and the customer’s application requirements.

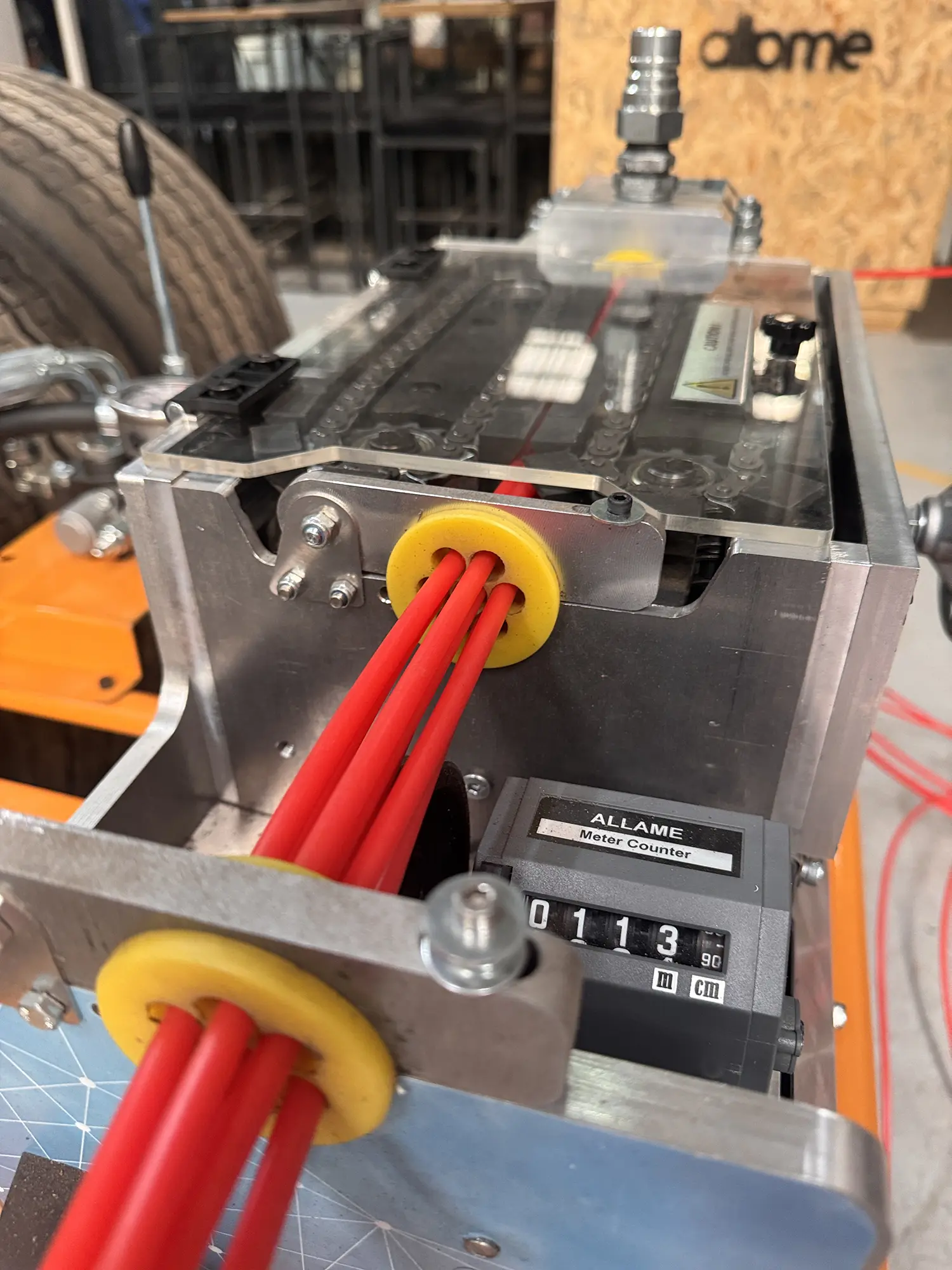

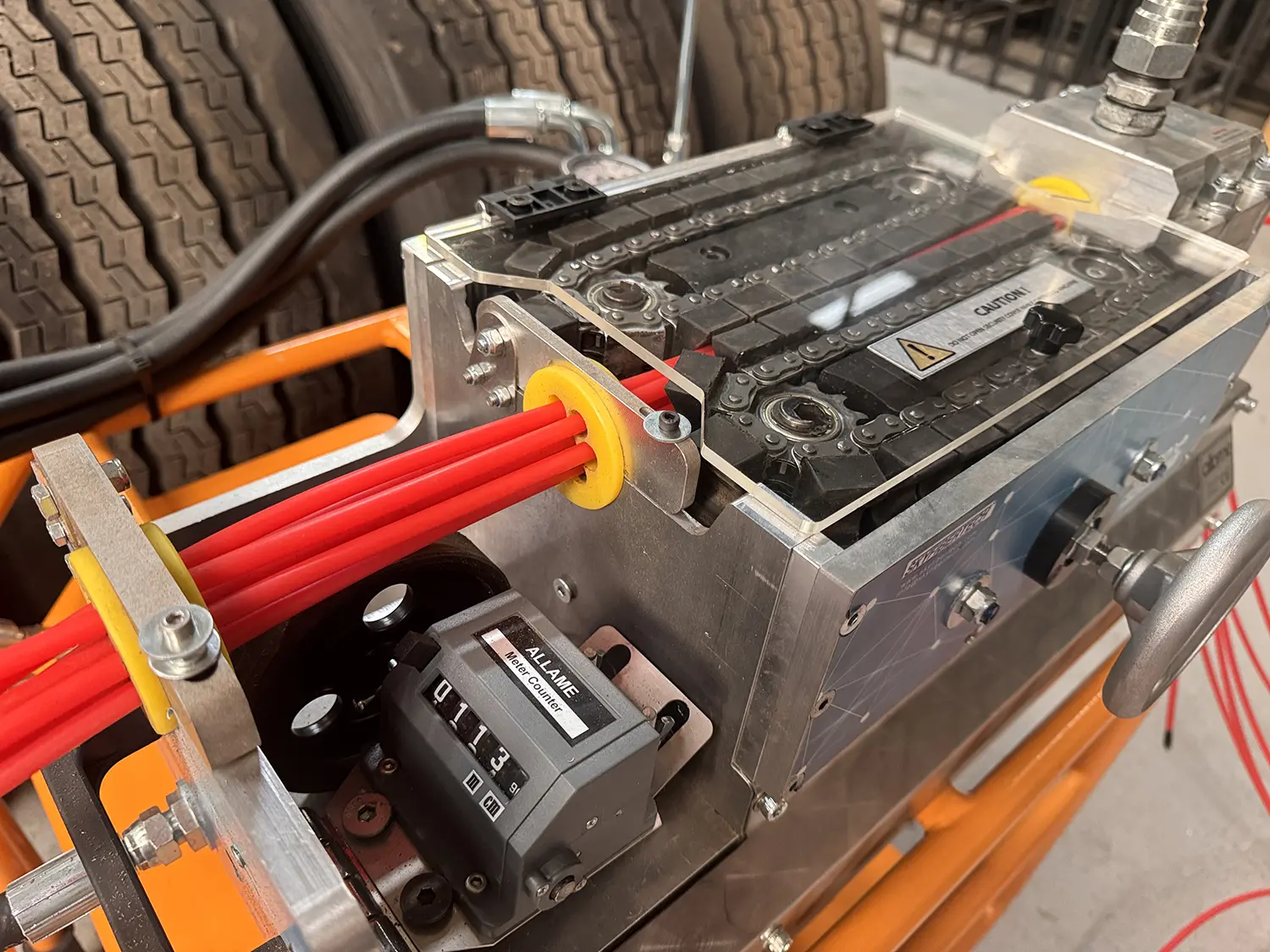

Microduct Meter Counter
The optional system includes a mechanical meter counter for monitoring the length of microduct being installed.
The counter helps the operator:
- Monitor installation length
- Track the amount of microduct installed
- Control the installation process
- Record approximate installation distances
This provides a simple and practical way to monitor microduct installation during operation.
⚠️ Important: Microduct Option Must Be Requested Before Ordering
The standard HydroSKY is configured for fiber optic cable blowing.
If you also need to use the machine for microduct blowing, please inform us before placing your order.
The machine must be prepared with the appropriate Microduct Blowing System and feeding components according to the microduct dimensions you intend to install.
Please provide the microduct dimensions when requesting this option.
For example:
7 × 7 mm | 6 × 10 mm | 5 × 12 mm | 4 × 14 mm
This allows us to prepare the correct configuration for your application.

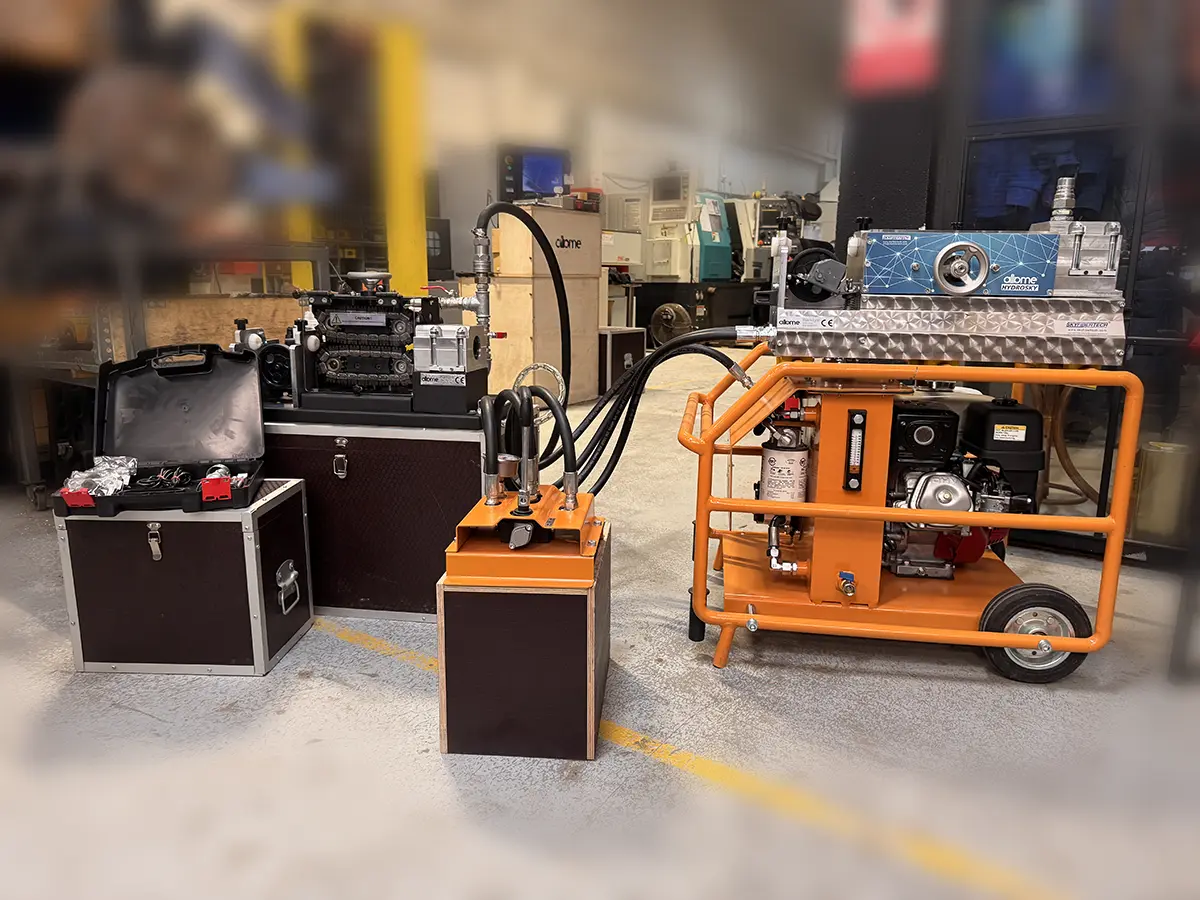

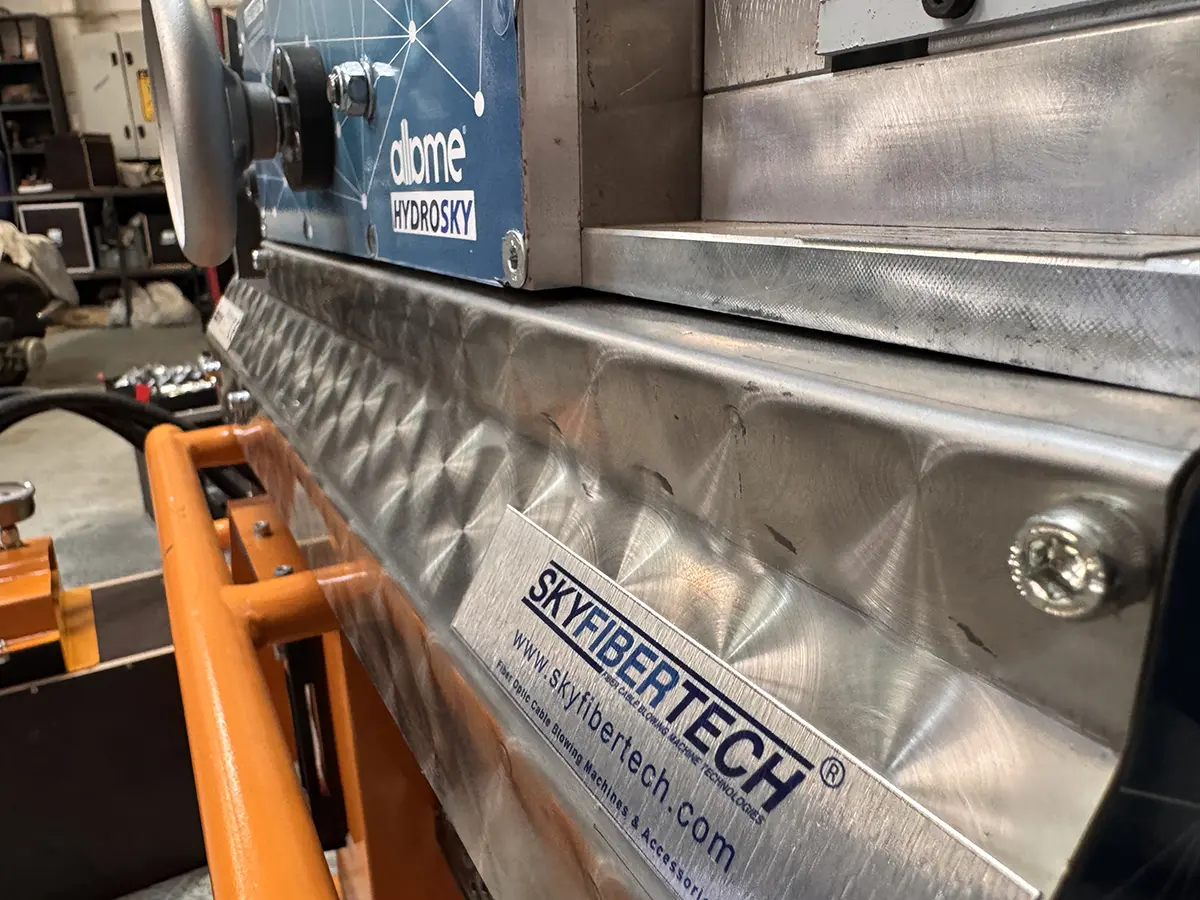

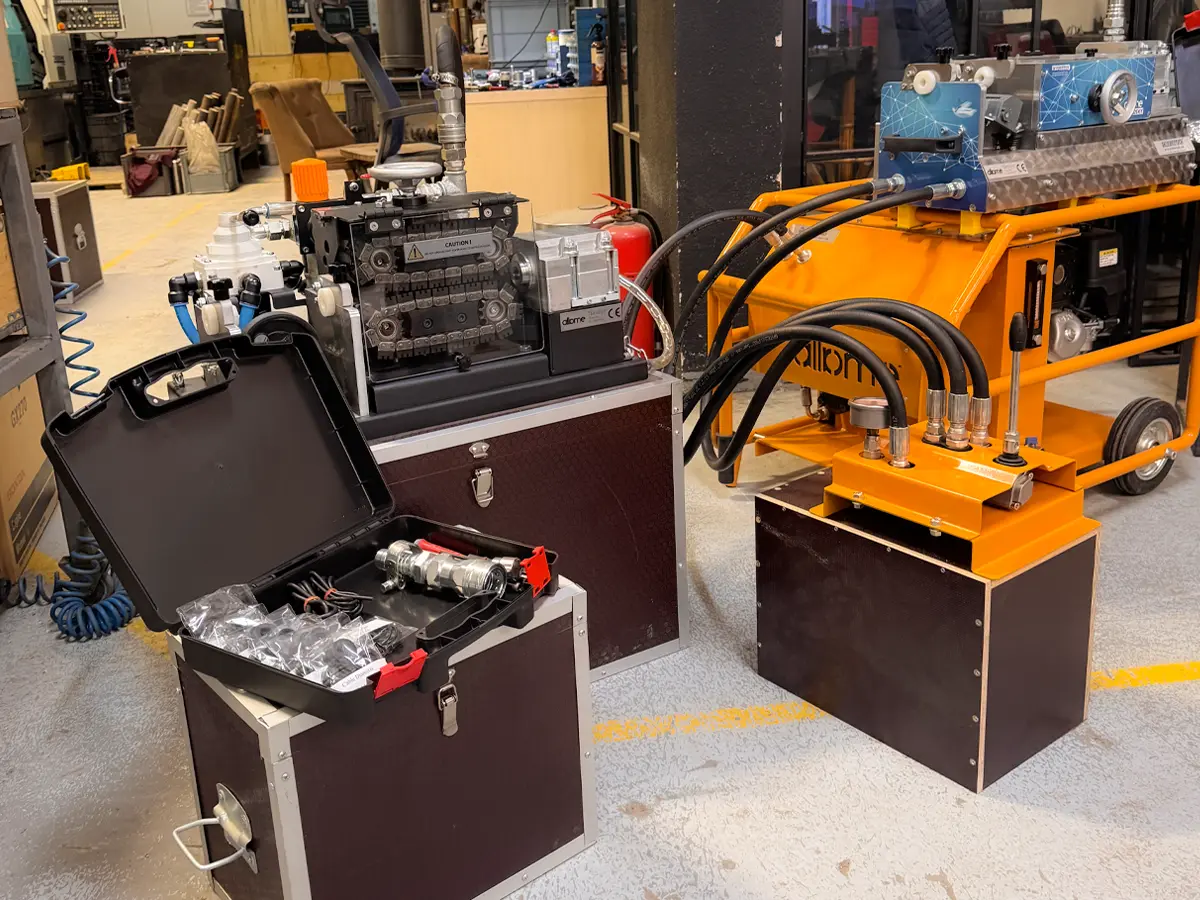

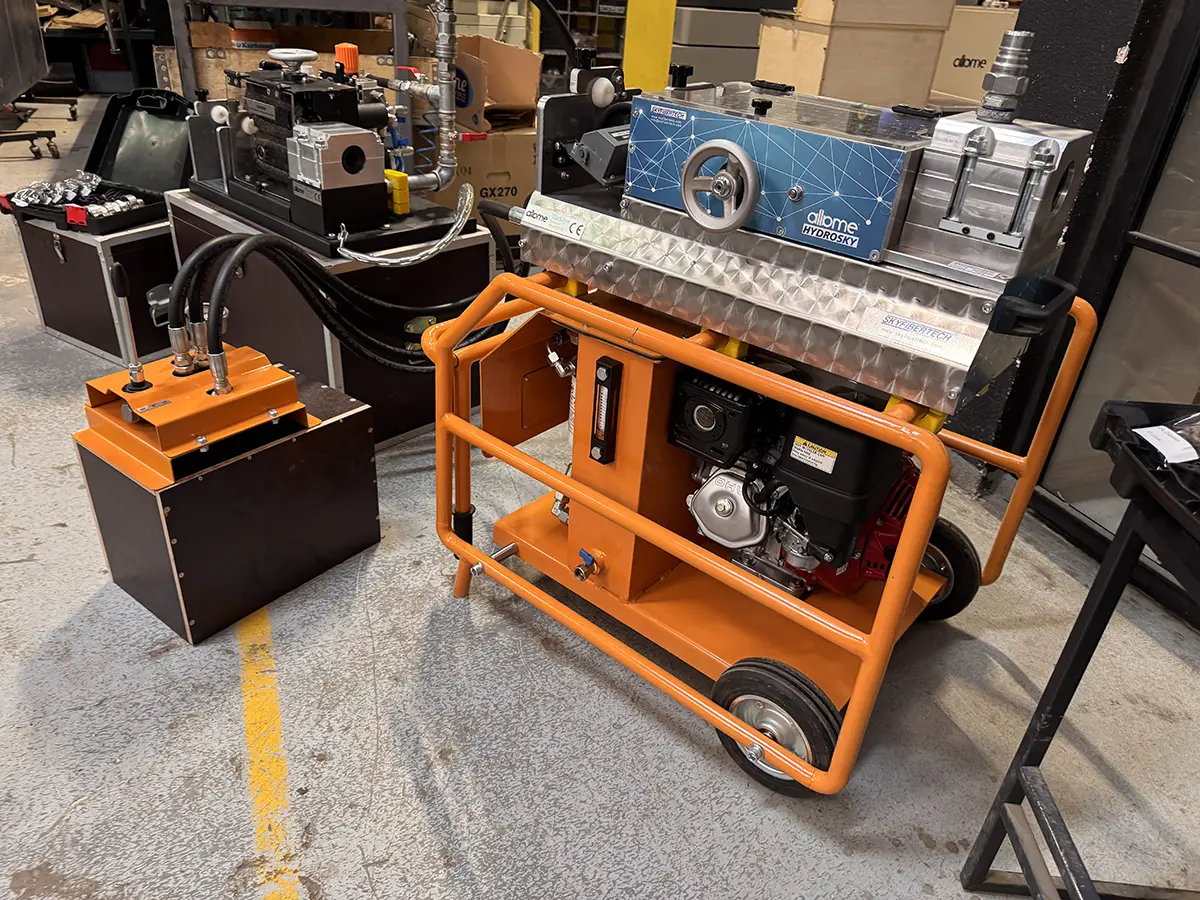

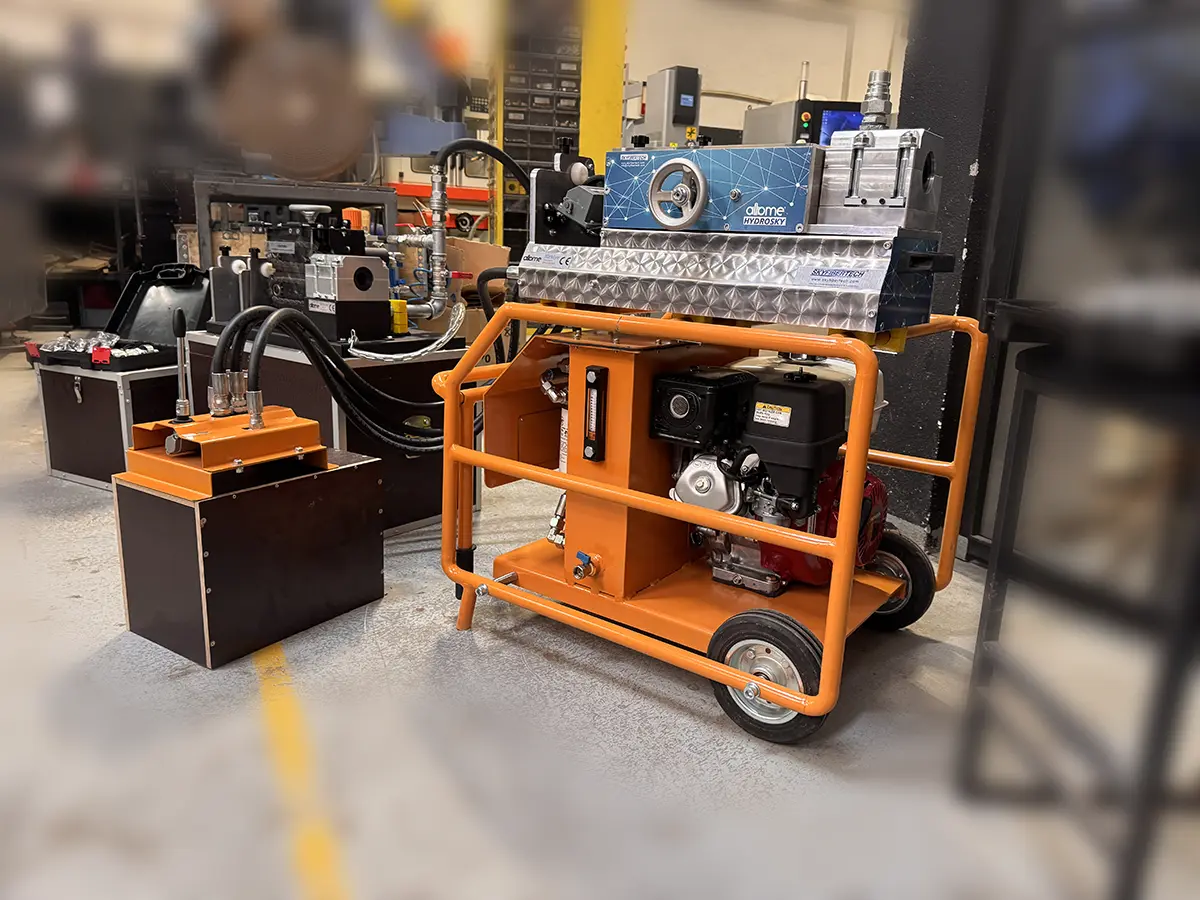

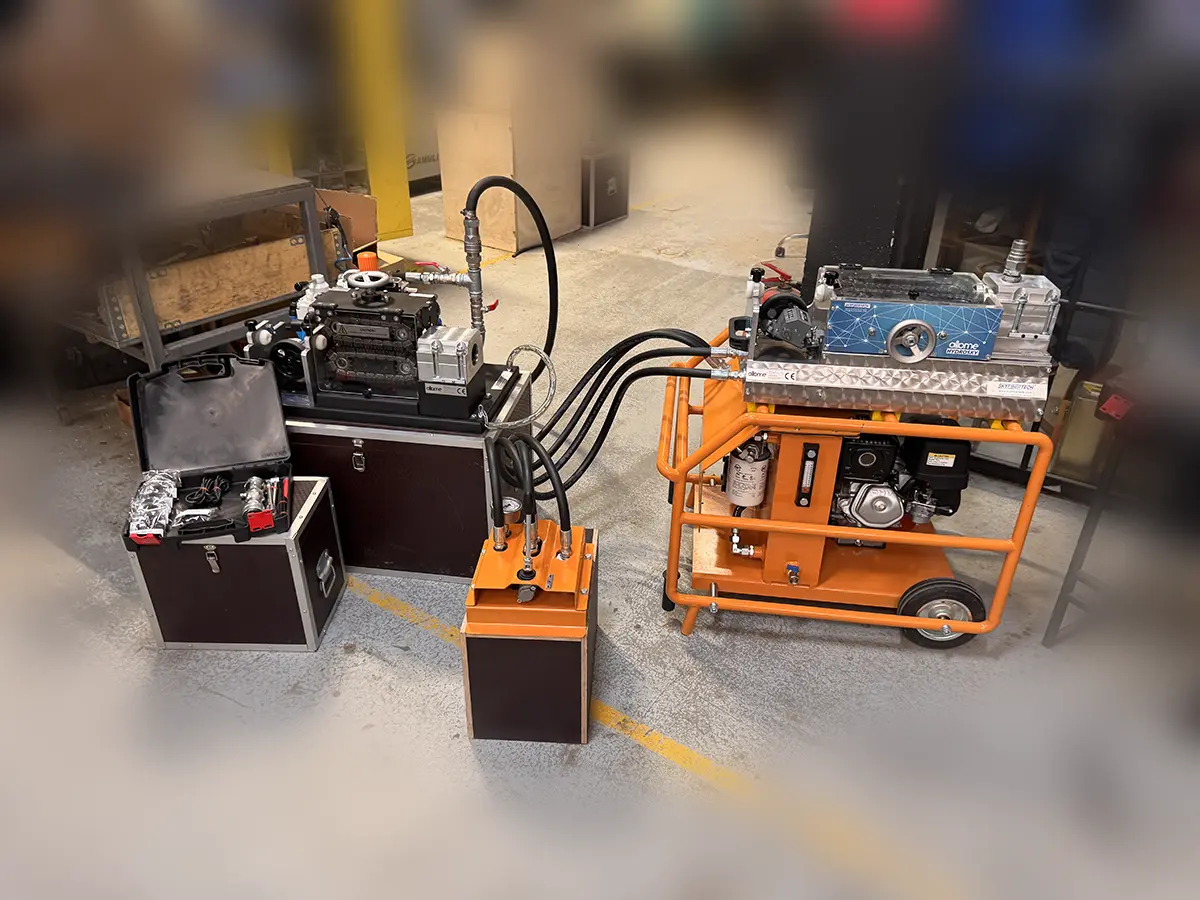

Photo Gallery
Video Gallery
Reviews (0)
About brand
SKYFIBERTECH
Skyfibertech is Allame Makina’s brand dedicated to advanced fiber optic cable blowing technology. Built with precision and durability, our machines deliver maximum efficiency in fiber installation projects. From air blowing machines to cable blowing accessories and testing equipment, Skyfibertech provides a complete range of solutions. Trusted worldwide, it simplifies and accelerates fiber network construction with powerful performance, easy operation, and long-lasting reliability.
Package Size & Weight
Box Dimensions
Cable Blowing Machine Hydrosky
100x100x110cm ve 220Kg (LxWxH) Complete set.
All package dimensions and weights are provided for general reference and may vary depending on the final product configuration and shipment content.
Standard Accessories
Cable Blowing Machines
HYDROSKY STANDART ACESSORIES 2026
Download the HYDROSKY Standard Accessories Catalog to review the accessories and components supplied with the machine. The document includes duct adapters, sealing elements, installation tools, and other standard items required for fiber optic cable blowing operations.
