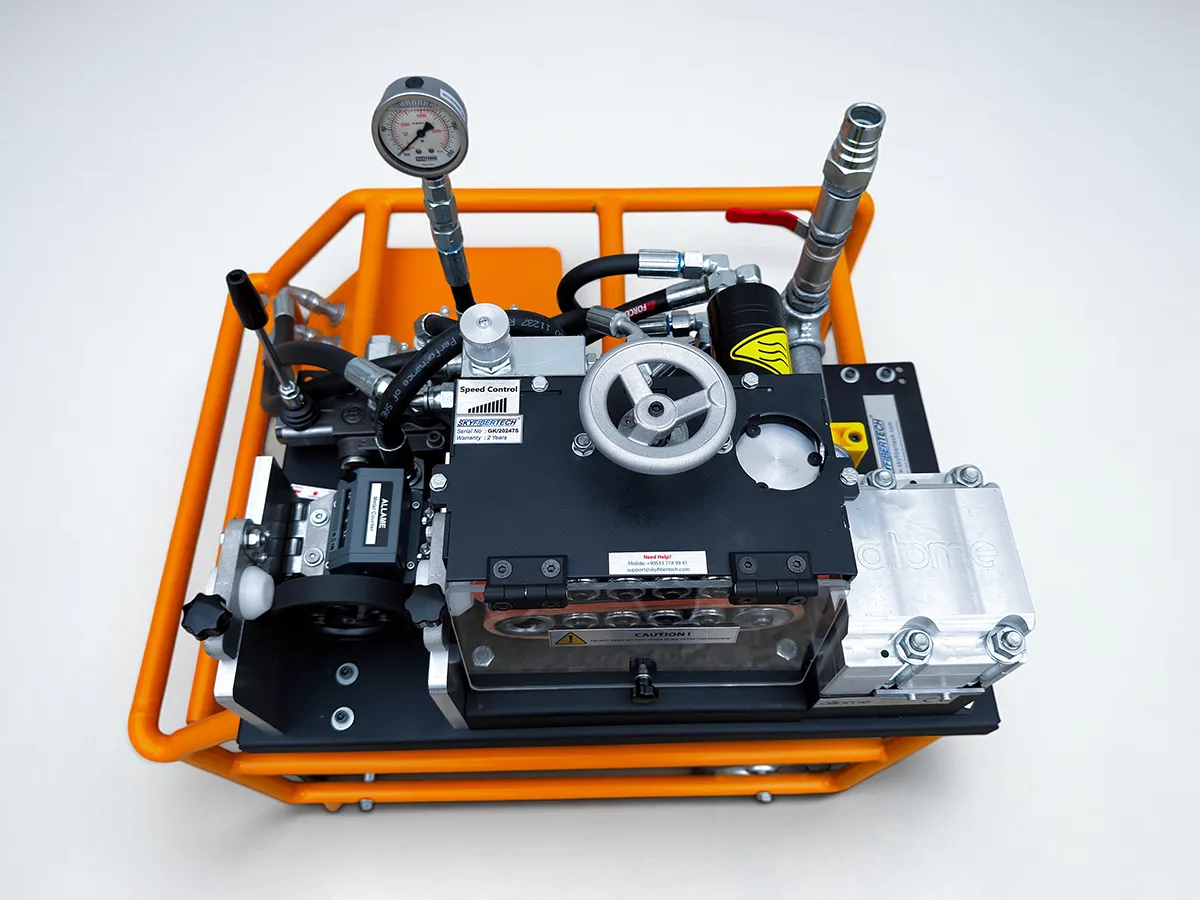

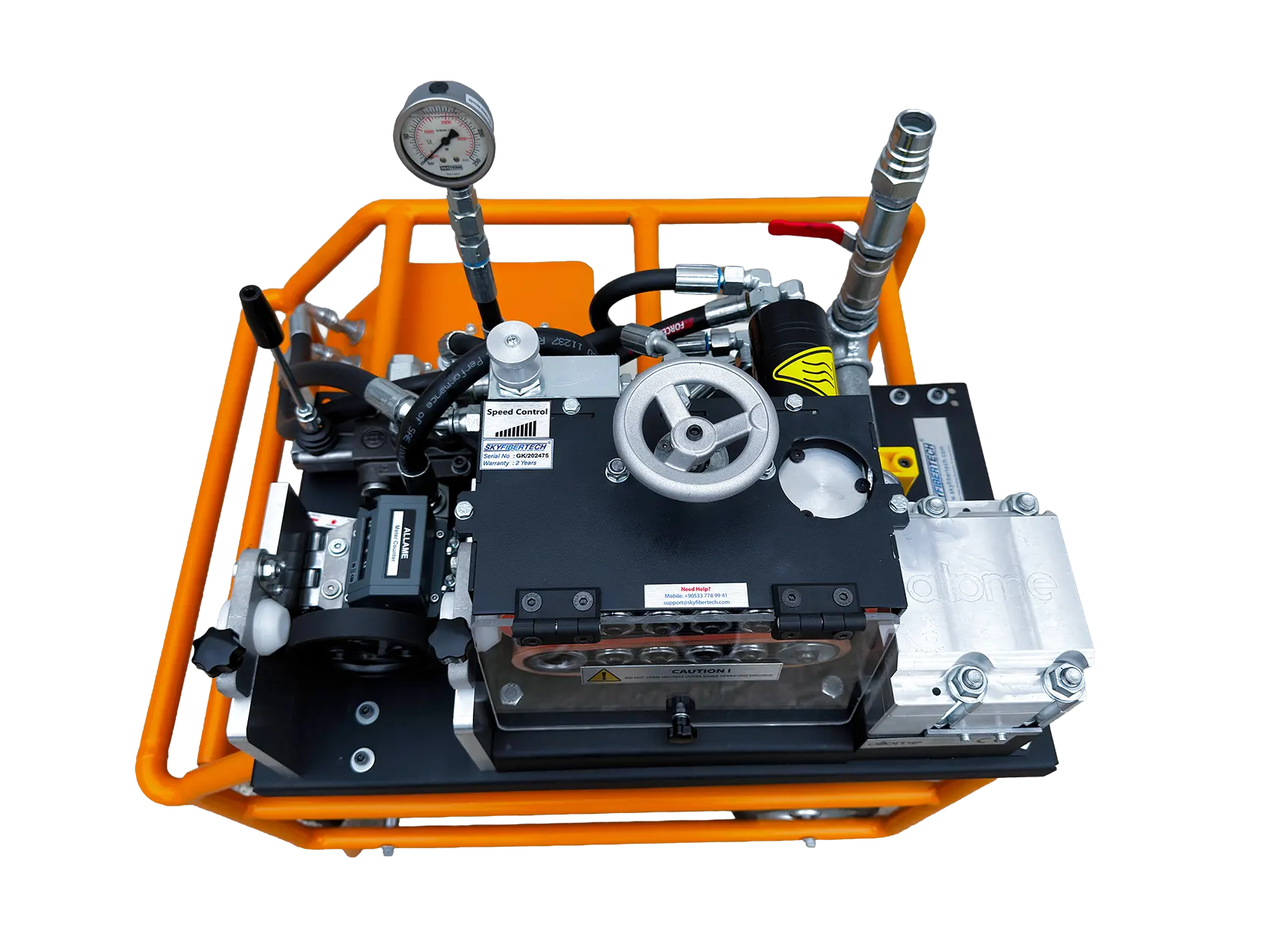

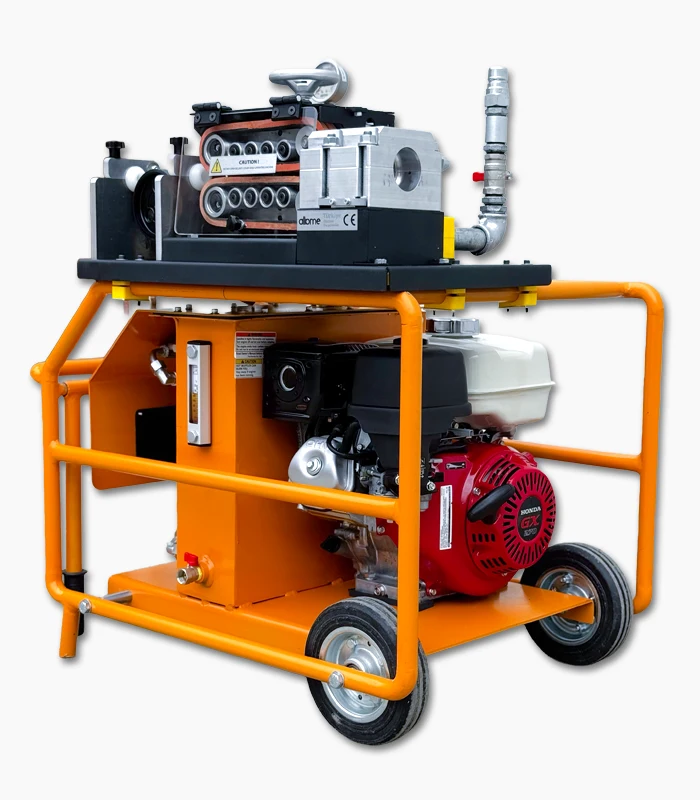

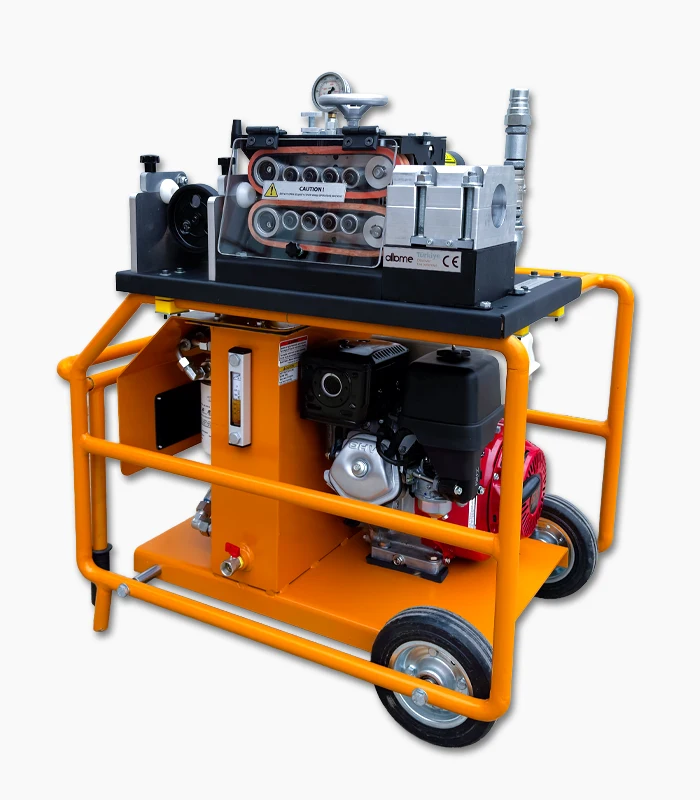

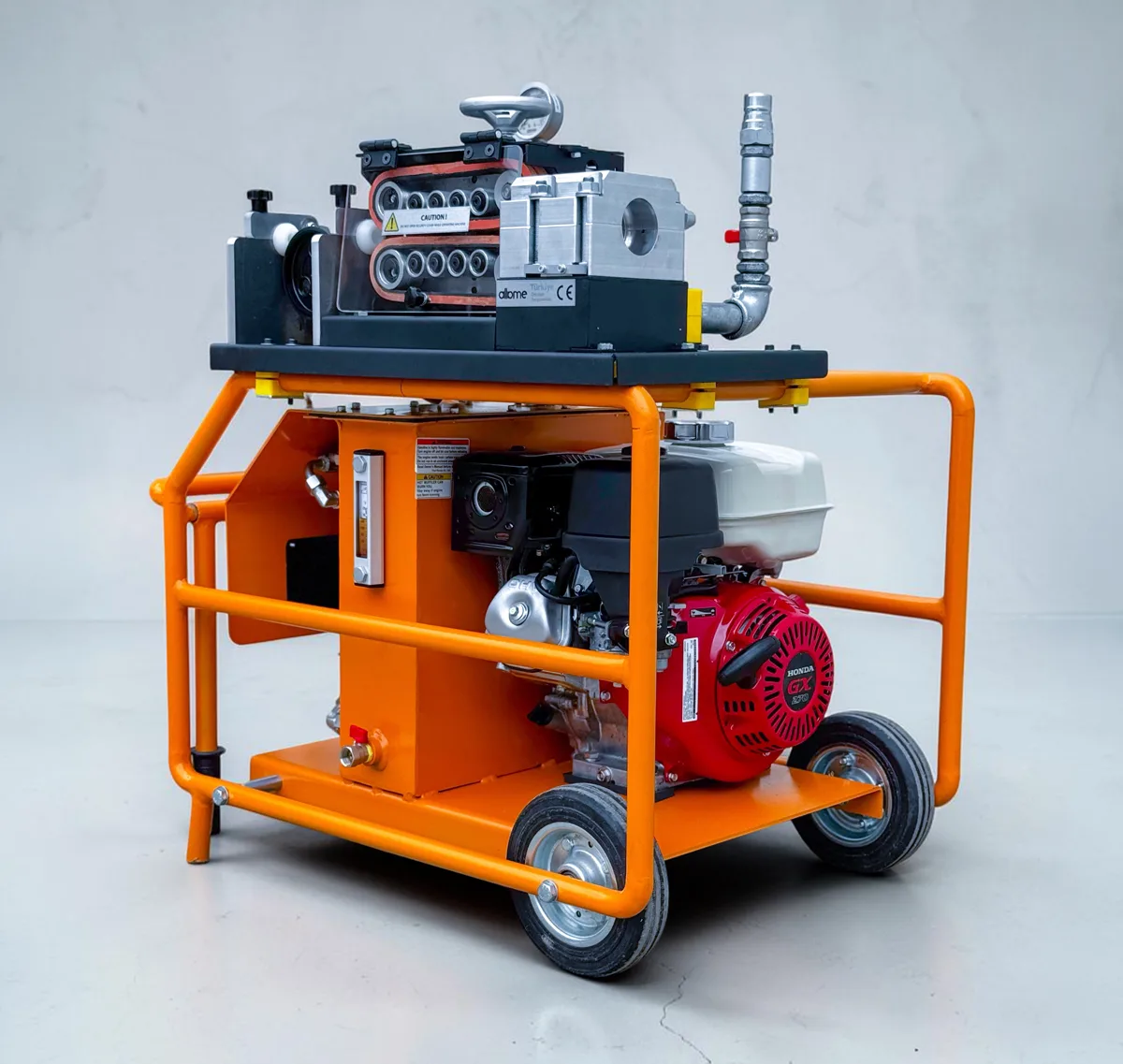

Hydraulic MiniSKY Cable Blowing Machine
Hydro MiniSKY combines the compact structure of the MiniSKY with the strong hydraulic drive system used in the HYDROSKY series.
This model is designed for contractors who need more stable pushing performance in smaller cable ranges. It offers smooth and controlled cable installation while keeping the machine compact and easy to handle on site.
Hydro MiniSKY supports cable diameters from 2.5 mm up to 16 mm.
It also works with microduct sizes from 7 mm up to 50 mm.
Description
0%
HYDRO MINISKY
Hydraulic Strength,
Fiber Speed
Cable diameter range from 2,5mm up to 16mm
microduct diameter range from 7mm up to 50mm

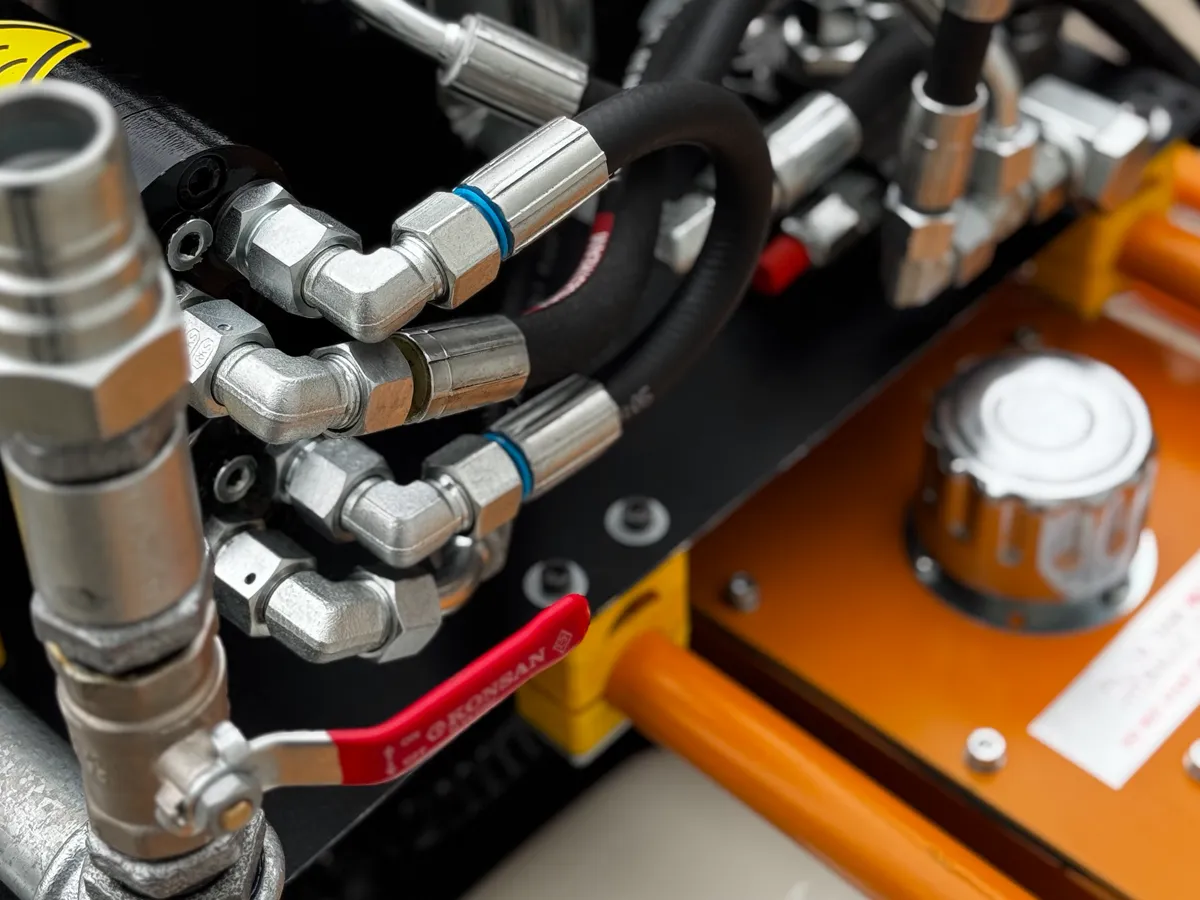

Working with self powered hydraulic power unit with two hydraulic motors.
microduct diameter range from 7mm up to 50mm
Working with self powered hydraulic power unit with two hydraulic motors.
Hydro MiniSKY combines the compact structure of the MiniSKY with the strong hydraulic drive system used in the HYDROSKY series.
This model is designed for contractors who need more stable pushing performance in smaller cable ranges. It offers smooth and controlled cable installation while keeping the machine compact and easy to handle on site.
Hydro MiniSKY supports cable diameters from 2.5 mm up to 16 mm.
It also works with microduct sizes from 7 mm up to 50 mm.

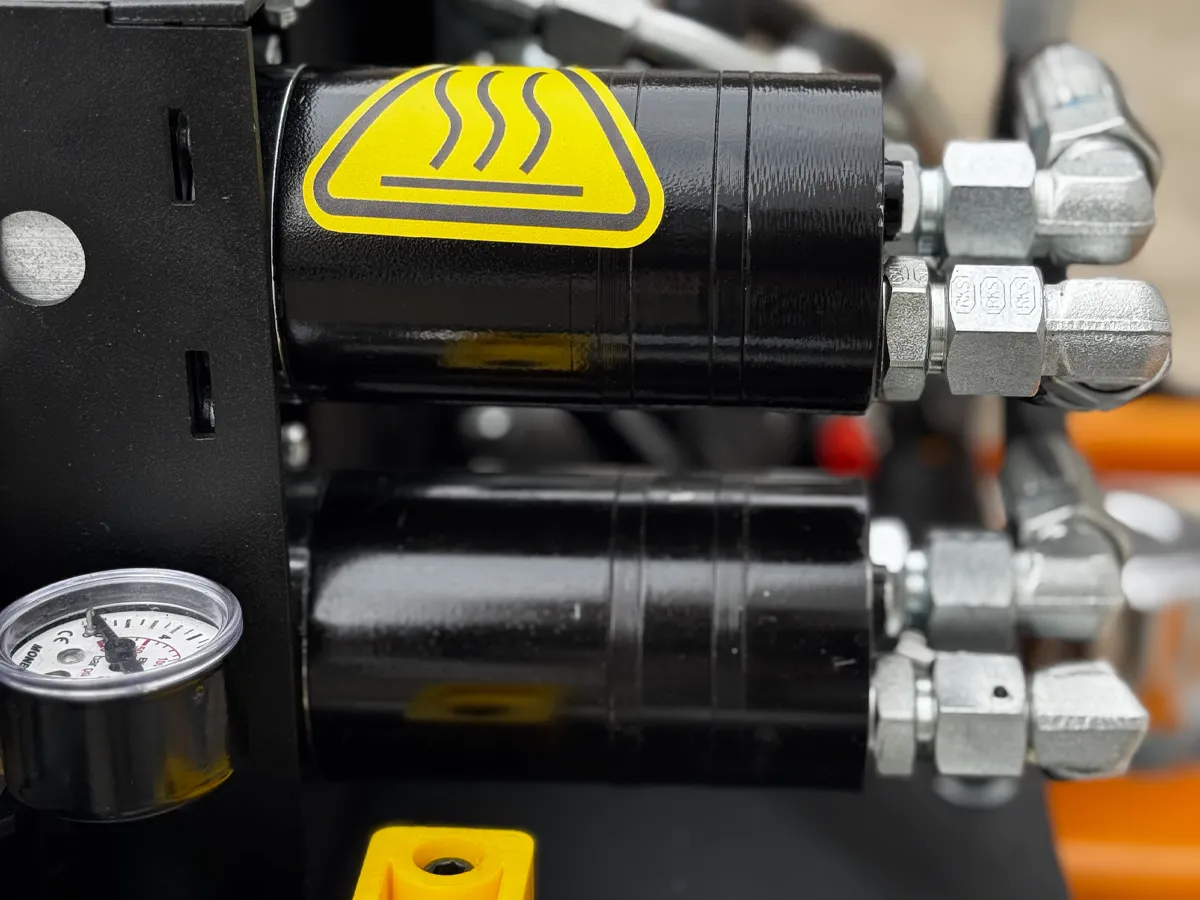

The machine operates with a self powered hydraulic unit and dual hydraulic motors. This system provides steady cable feeding and balanced pushing force during installation. It helps reduce cable stress and supports reliable performance in longer duct routes.
The compact body makes transport and setup simple. Operators can move the machine easily between different job locations. The control system is clear and practical for daily field work.
Hydro MiniSKY is suitable for FTTH projects, telecom infrastructure installations, and microduct fiber applications where stable hydraulic performance is needed in medium cable sizes.
It combines power, control, and portability in one machine.
Technicial Specifications
| Specification | Value |
|---|---|
| Pushing Force | 0 – 200 kg |
| Pushing Speed | 0 – 180 m/min |
| Cable Diameter Range (OD) | 2,5 – 16 mm |
| HDPE Pipe Diameter (O.D.) | 8 – 63 mm |
| Hydraulic Drive System (Max) | 100 Bar |

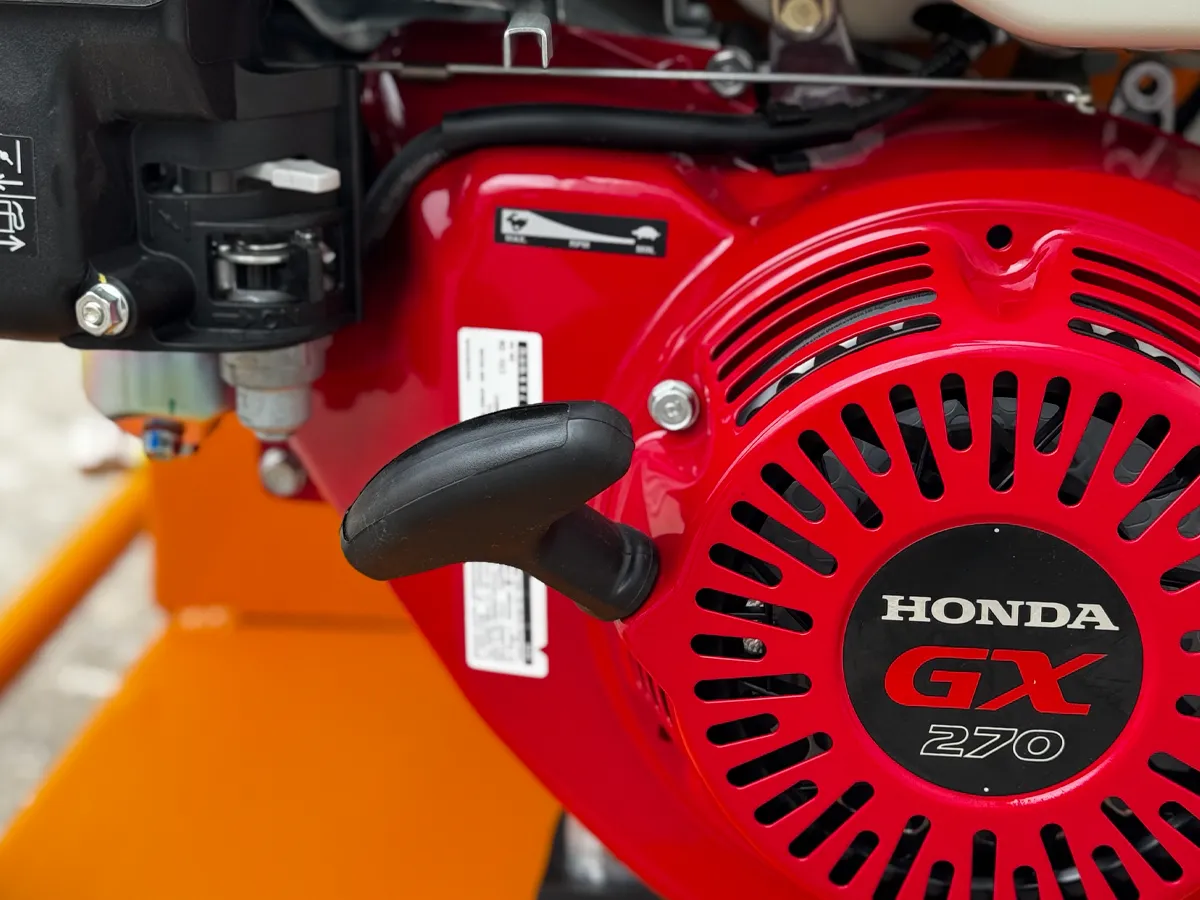

| Engine | Honda GX270, 9 HP (Gasoline) |

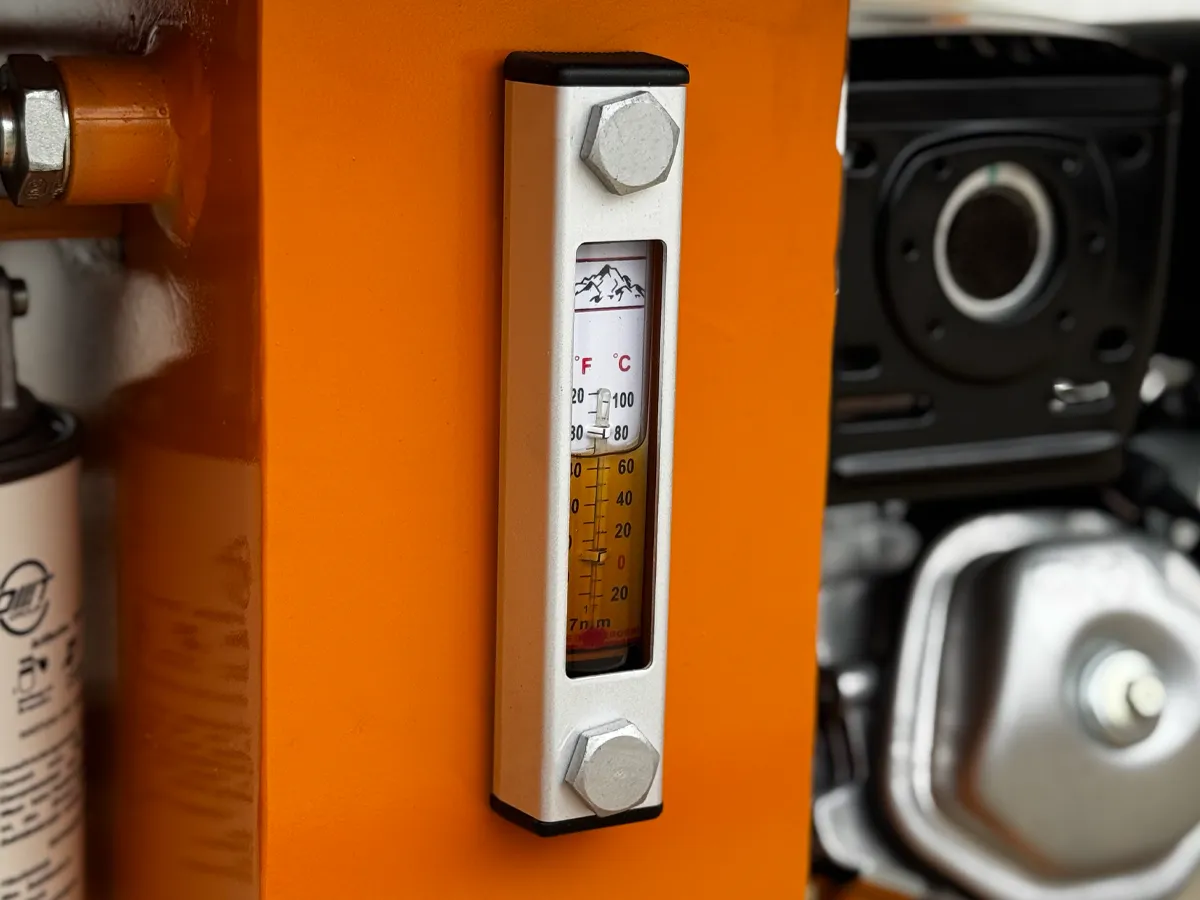

| Hydraulic Oil Capacity | 25 L (filled by user) |
| Minimum Heavy Duty Hydraulic Hose | 25 mm (1″) |
| Operating Air Pressure | 12 Bar |
| Recommended Air Consumption (at 12 Bar) | 0–25 mm: 4 m³/min (150 CFM) 26–30 mm: 5 m³/min (185 CFM) 31–35 mm: 7 m³/min (250 CFM) 36–40 mm: 10 m³/min (375 CFM) 41 mm and up: 12 m³/min (450 CFM) |

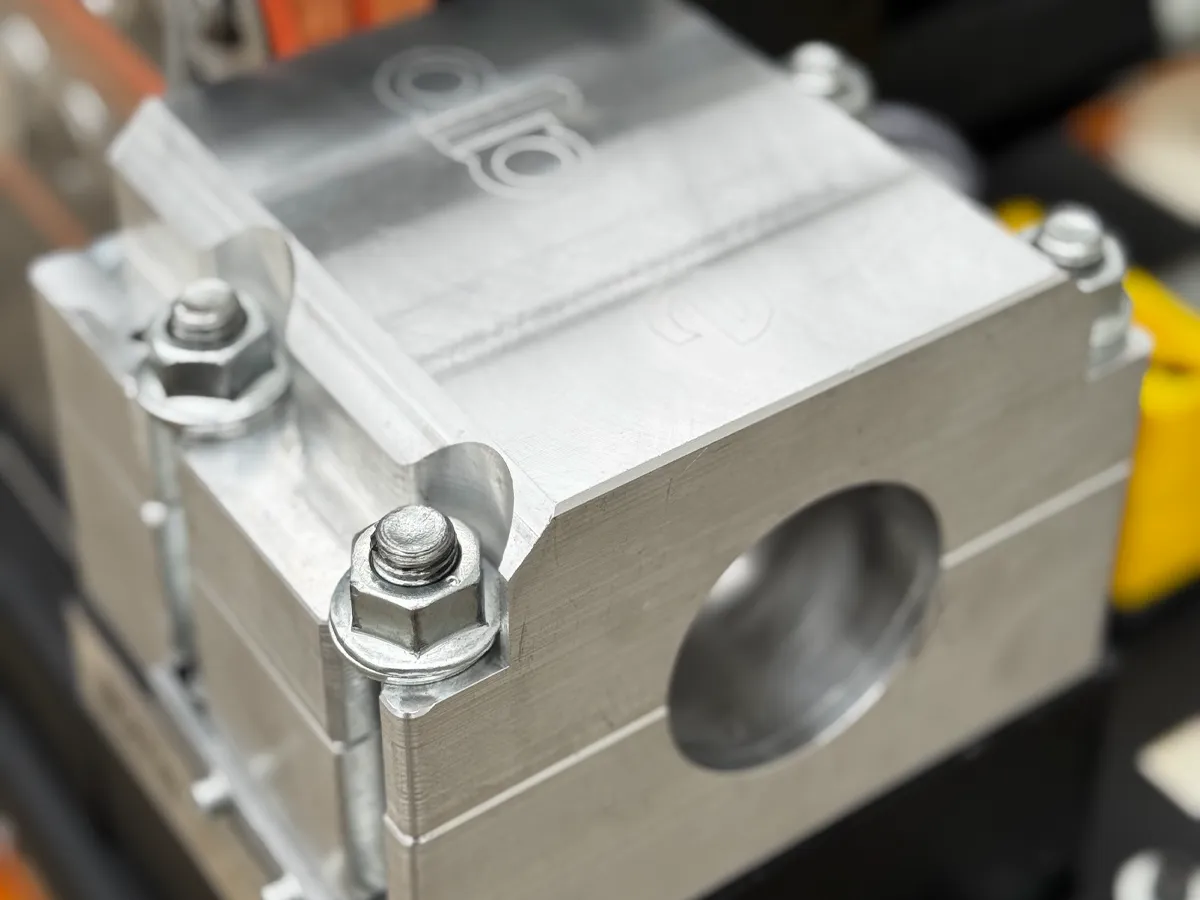

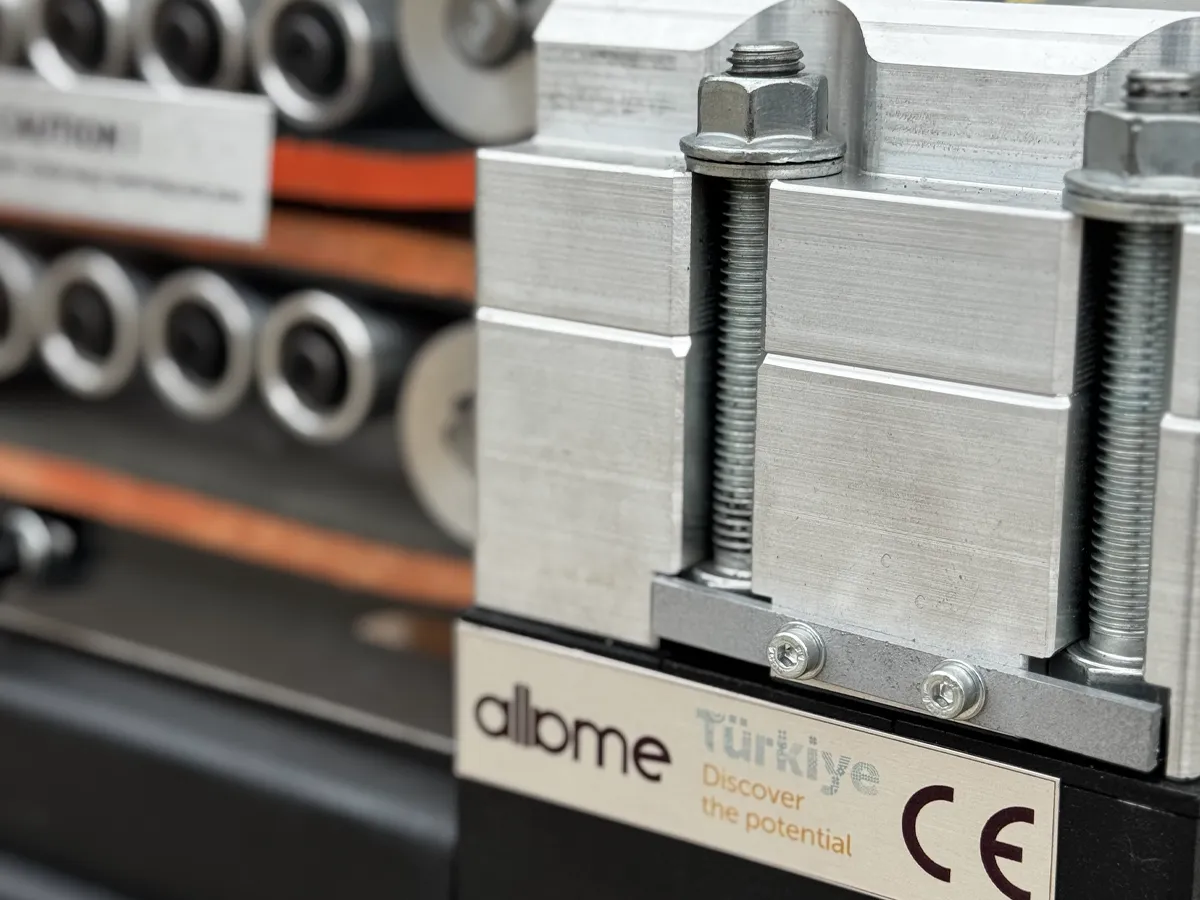

Duct Coupling Box
Provides secure duct connection and helps maintain proper air sealing during cable blowing operations.
Air Motors
Dual air motors provide stable pushing force and reliable cable movement during demanding fiber installations.

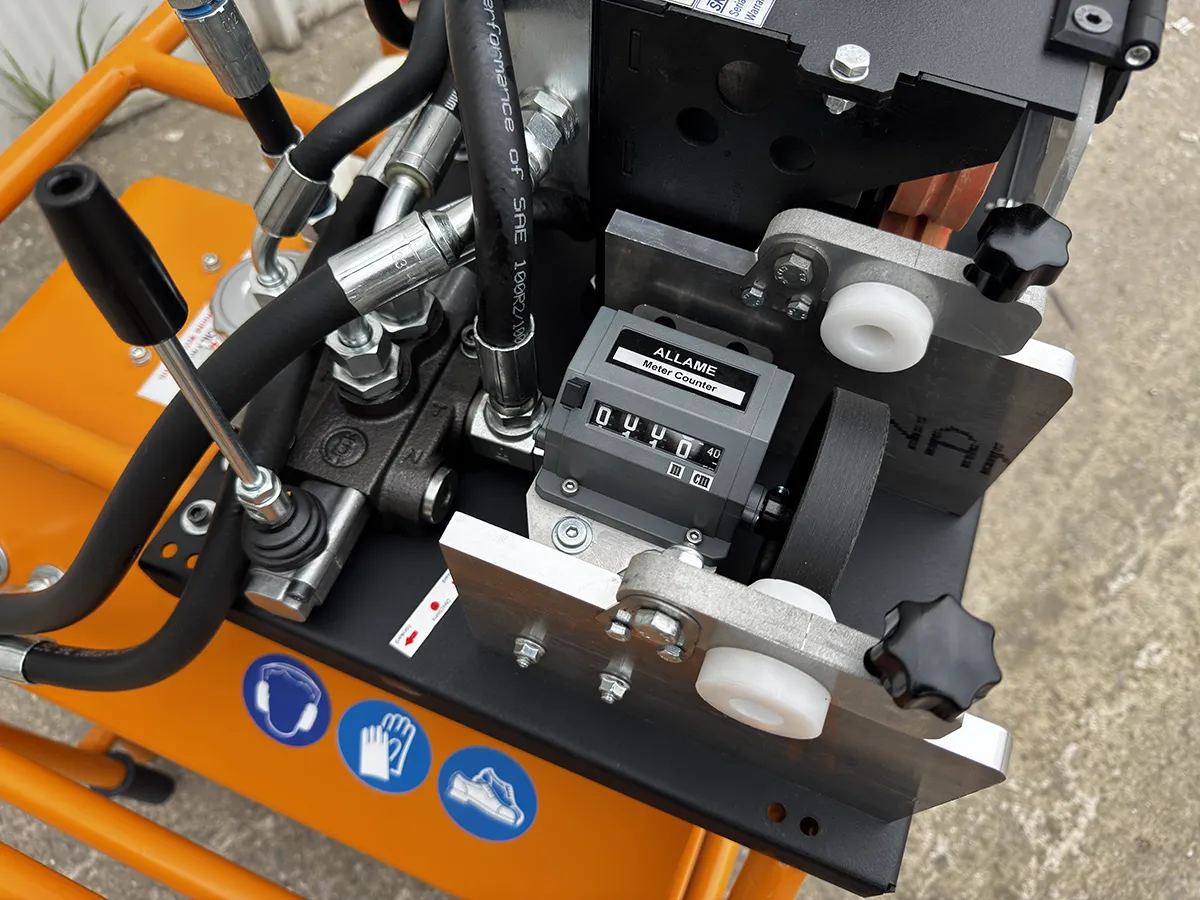

Resettable Counter
Measures cable distance during installation and can be reset easily before starting a new operation.
Direction Valve
Controls cable movement direction, allowing forward, reverse, or neutral operation during installation processes.
Speed Control
Adjusts cable pushing speed smoothly according to cable type, duct condition, and installation requirements.
Air Coupler
Connects the air supply system quickly and securely to the machine for continuous airflow.
Pressure Gauge
Displays the current system air pressure during operation for safer and more controlled cable blowing performance.

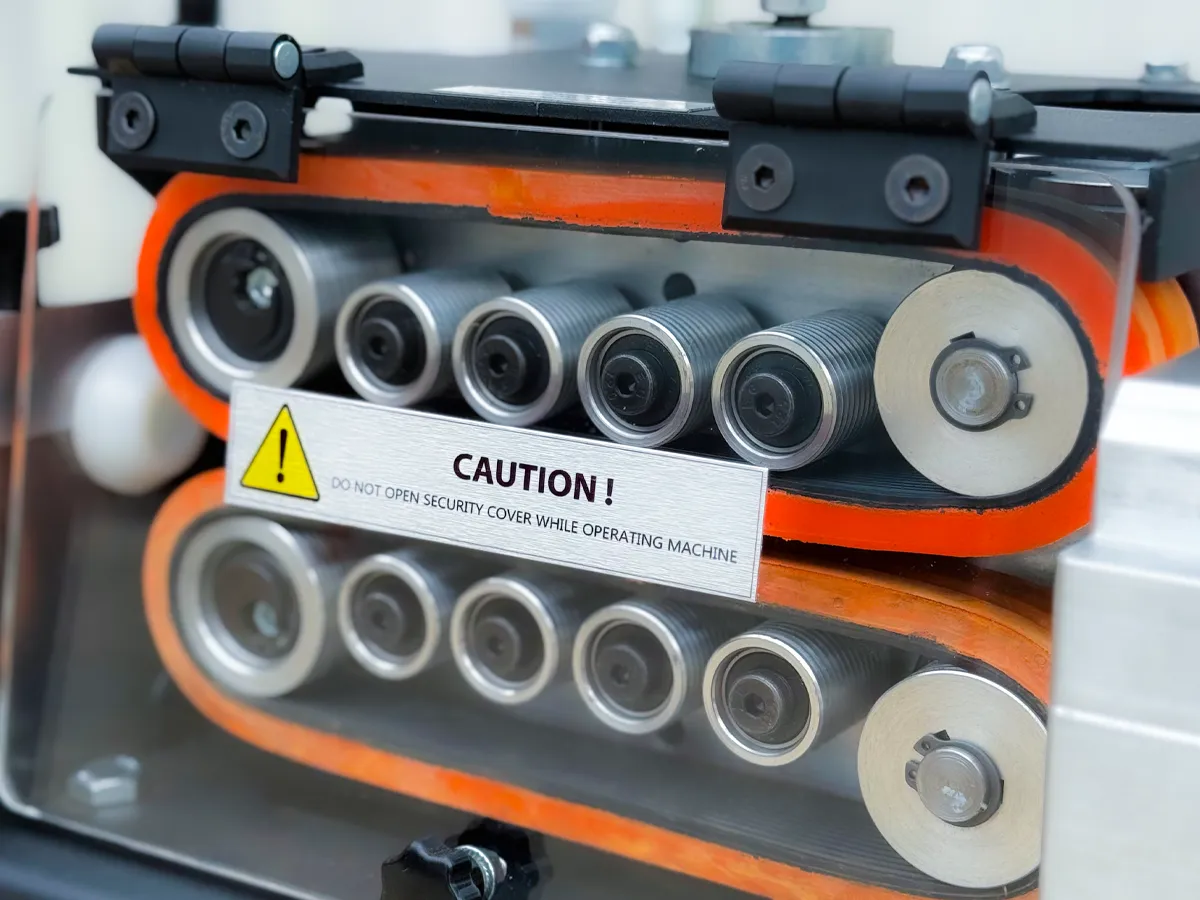

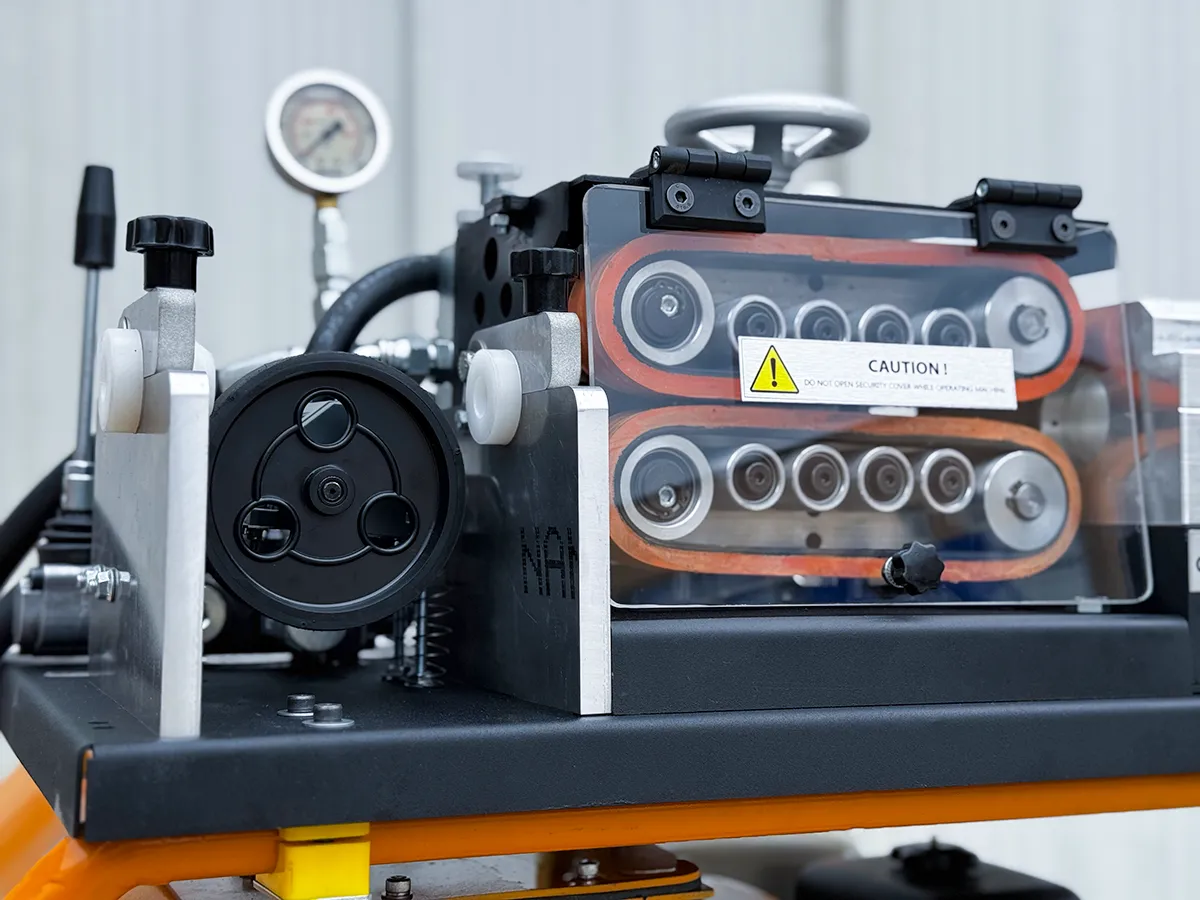

Belt Sets
Special belt system grips the cable carefully and supports smooth movement without damaging the cable surface.
Hand Wheel
Allows precise belt adjustment according to cable diameter for balanced and stable cable feeding.
