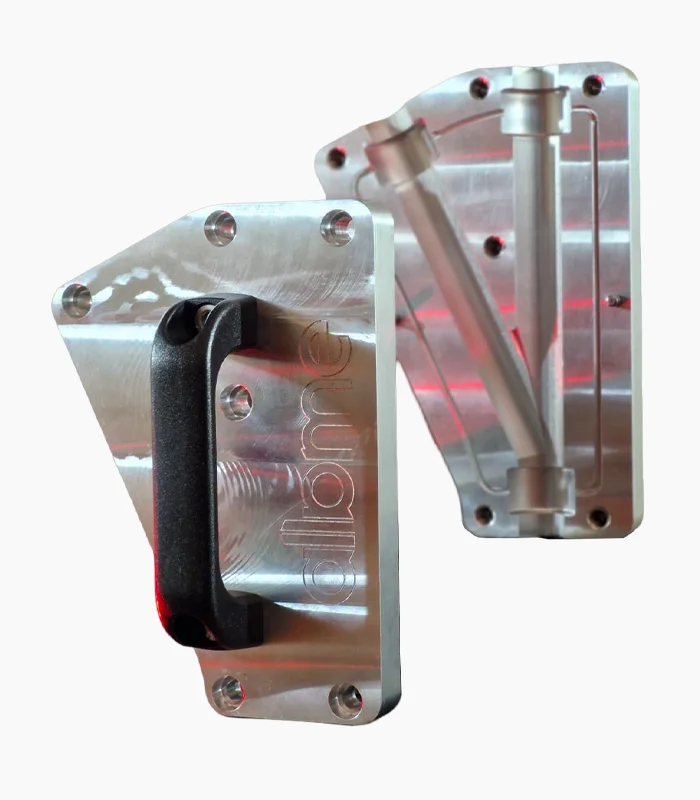

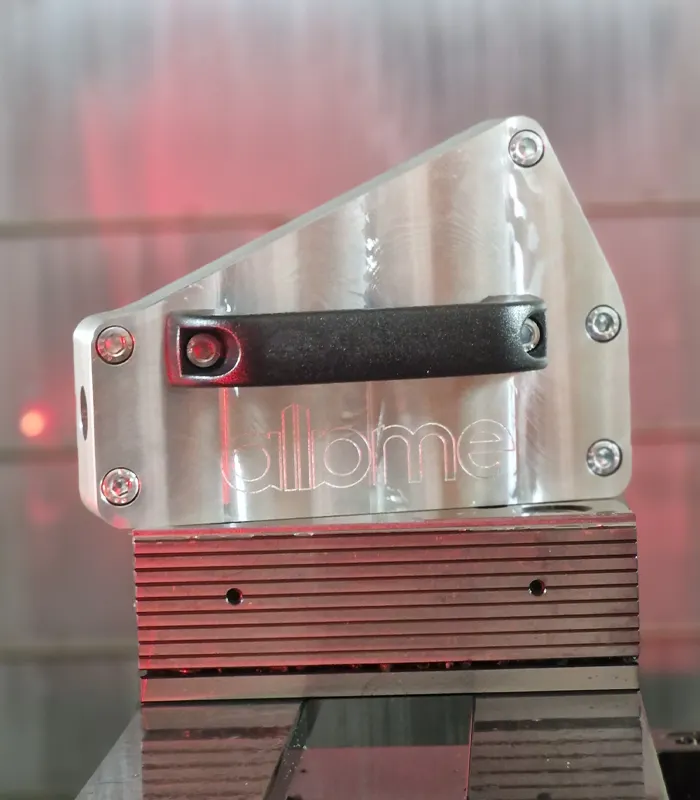

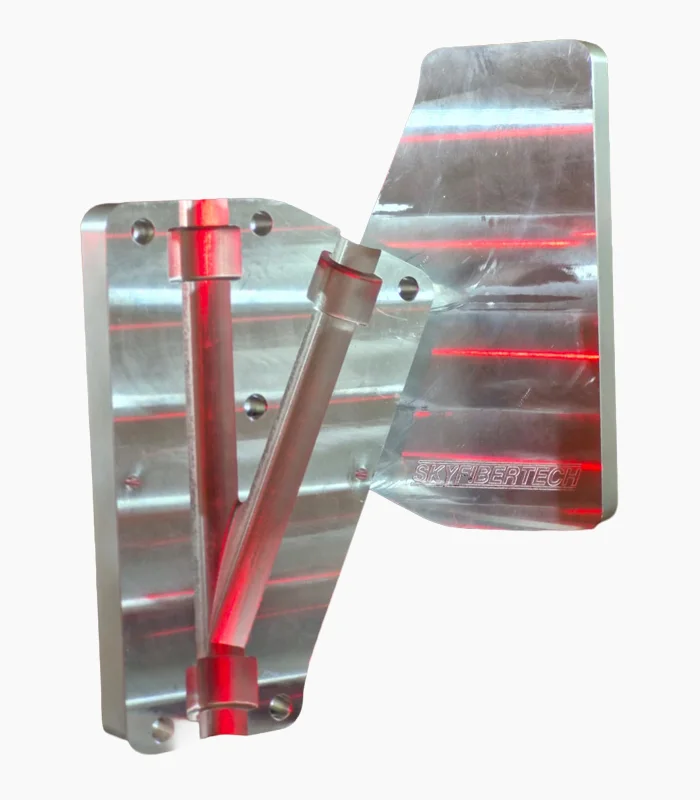

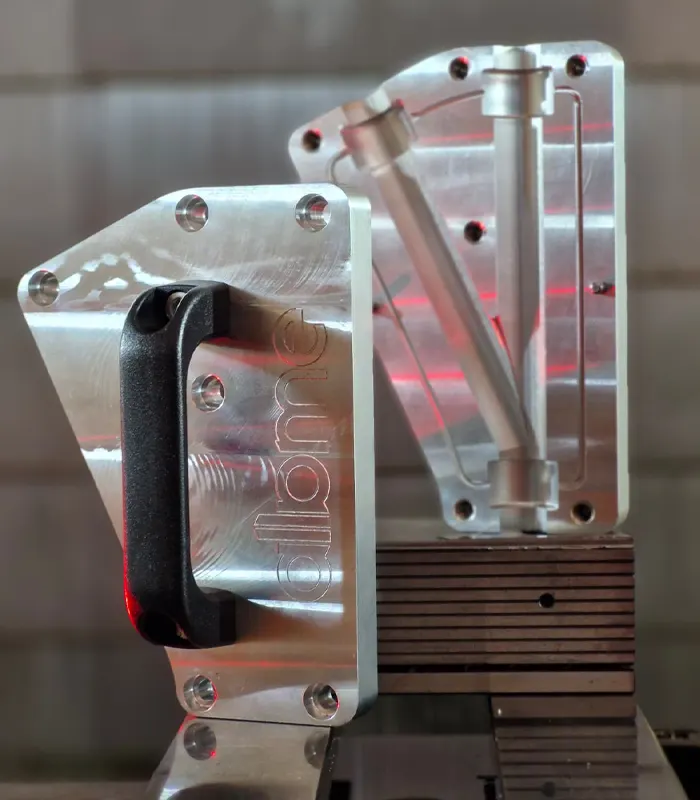

Y-Connector for Microduct

The Y-Connector is designed to make better use of ducts that already contain a cable or microduct. It helps place an extra cable or microduct into the same duct by using air-assisted jetting or floating methods.

It can be used with cables from Ø 4 mm to Ø 16 mm and ducts with an outer diameter from 7 mm to 20 mm.

One side of the Y-Connector is attached to the cable blowing machine. This connection allows the second cable to be guided safely into the duct without removing the existing line.

When two extra cables are installed, the blowing distance is still very close to the distance reached with a single cable. This makes the system useful for upgrading existing duct routes.

Main Benefits

• Small and light design
• Suitable for tight and narrow manholes
• Easy to carry between job sites
• Simple to clean and service
• Practical to handle during installation
• Helps save time on existing duct networks

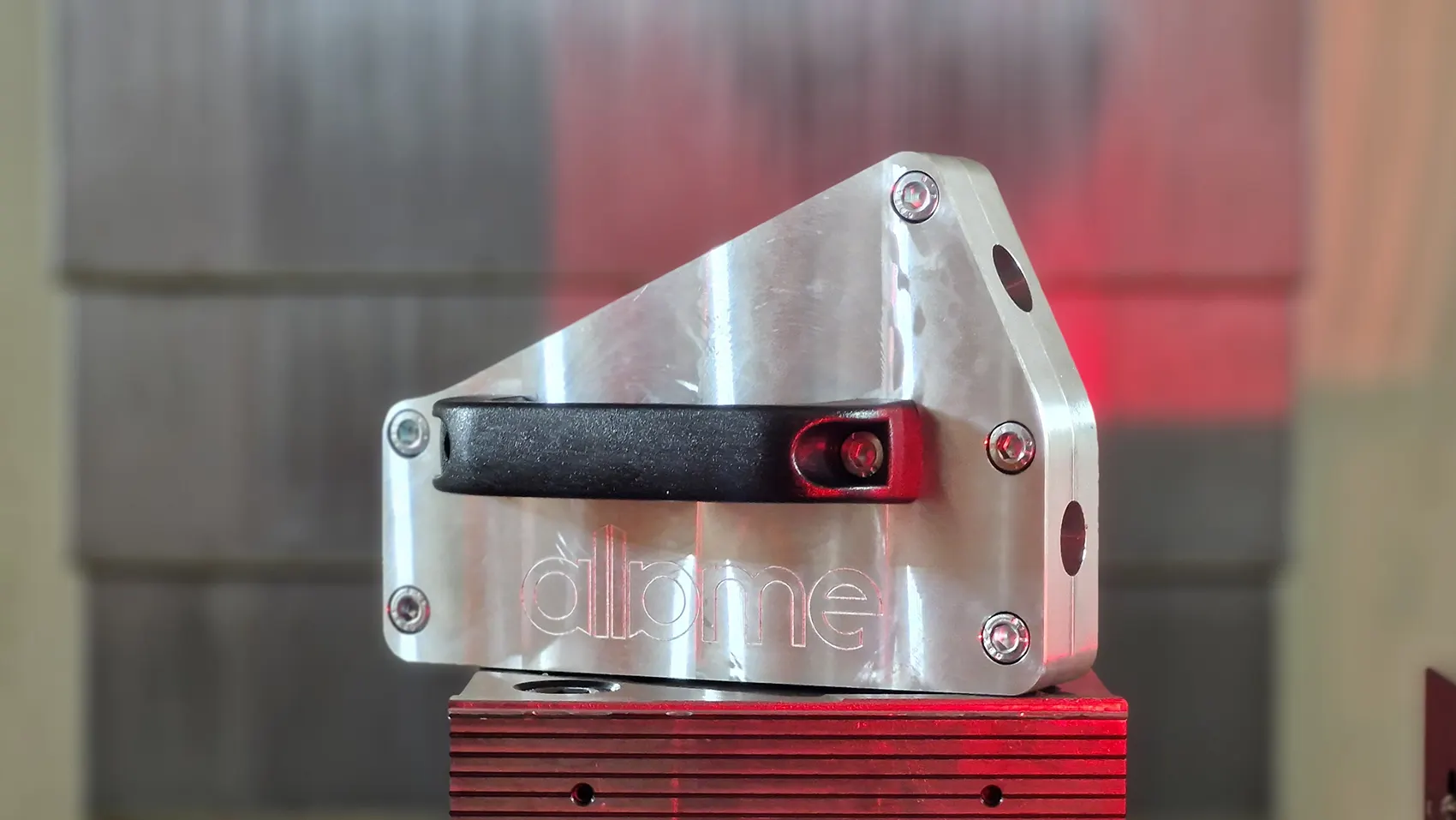

New Model: Y-Connector for Microduct

The new Y-Connector for Microduct version is now available.

This model has a more practical and easy-to-use design. It allows a new cable or microduct to be installed inside a duct that is already in use.

It also offers better flexibility on site. The connector can be adjusted according to the cable or microduct already inside the duct. This helps the operator work with different installation conditions more easily.

The design has also been improved. It needs fewer accessories to work properly. The closing system is simple and does not require any tools. This makes setup faster and daily use much easier.
