MiniSky Plus Cable Blowing Machine
MiniSKY Plus is a compact and efficient fiber blowing machine designed for precision and reliability. It is ideal for blowing fiber optic cables ranging from 2.5 mm to 16 mm into HDPE or microduct pipes.
Description
0%
MINISKY PLUS
Approved Performance
for Germany
MiniSKY Plus is a compact and efficient fiber blowing machine designed for precision and reliability. It is ideal for blowing fiber optic cables ranging from 2.5 mm to 16 mm into HDPE or microduct pipes.
Equipped with a computer-based Protokoll system, it provides real-time reporting and full compatibility with German standards. Powered by a single air motor, the system drives the belt mechanism smoothly using compressed air, ensuring consistent and safe cable installation.

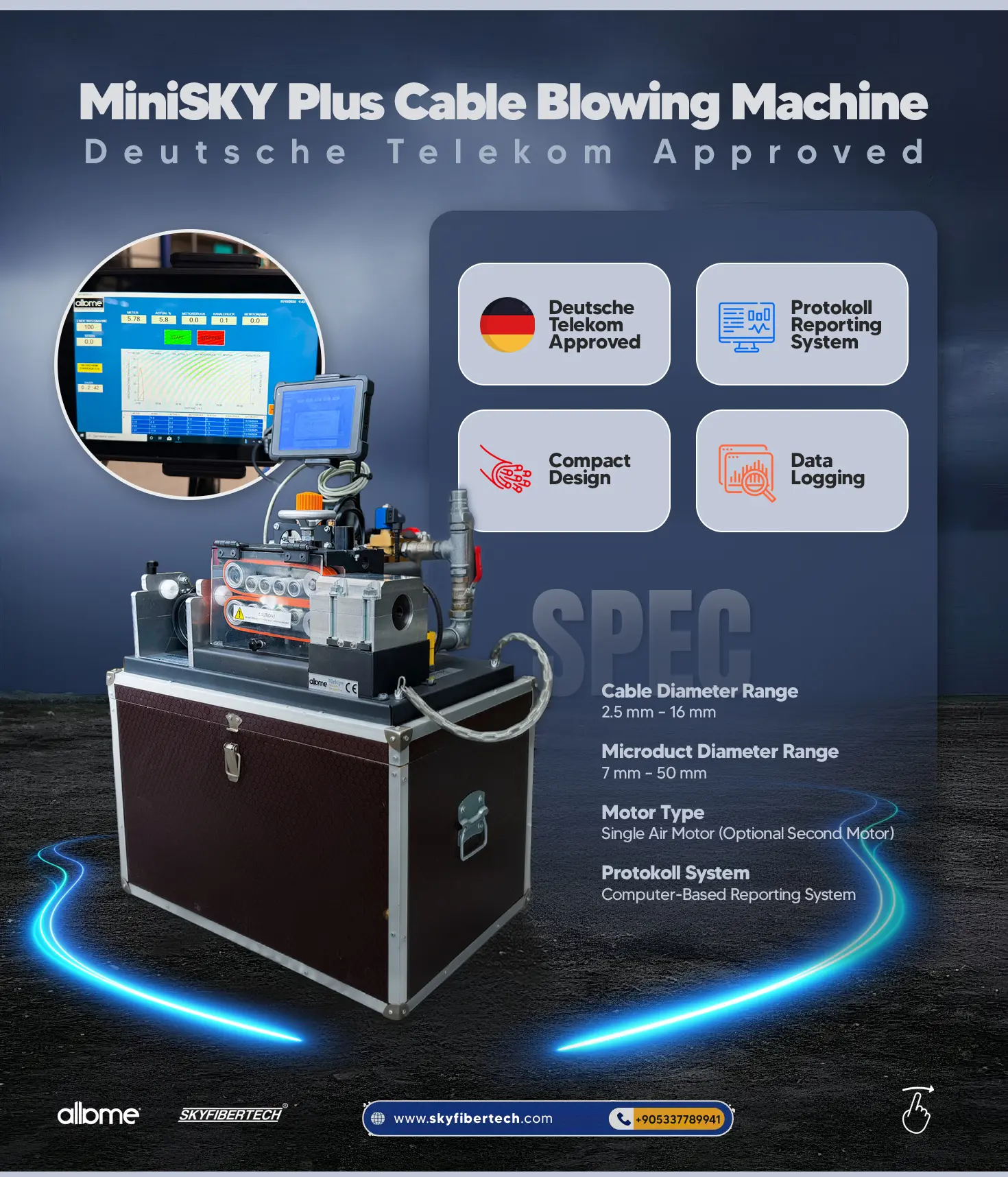

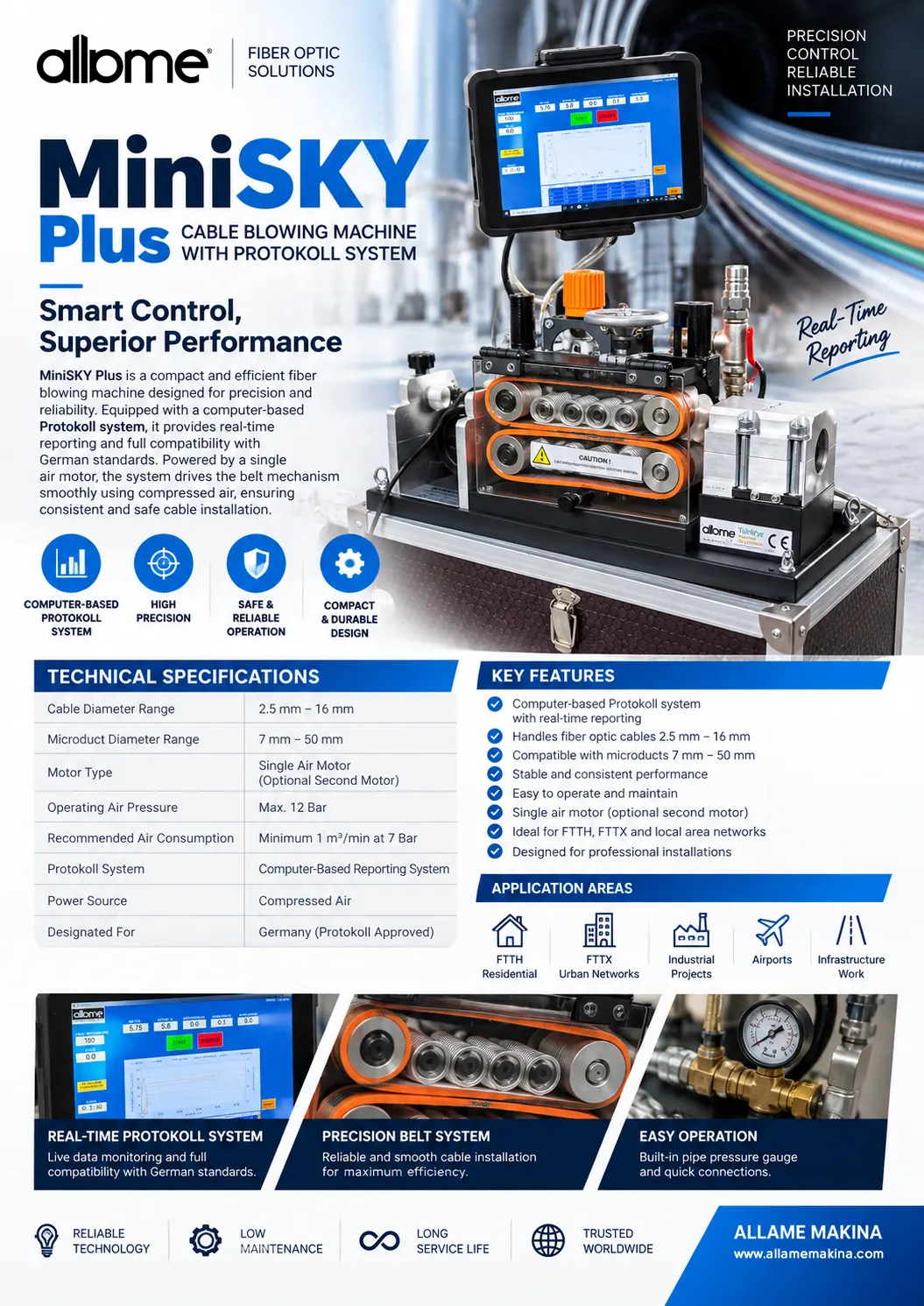

MiniSKY Plus Cable Blowing Machine with Protokoll System
MiniSKY Plus is a compact and efficient fiber blowing machine designed for precision and reliability. It is ideal for blowing fiber optic cables ranging from 2.5 mm to 16 mm into HDPE or microduct pipes.
Equipped with a computer-based Protokoll system, it provides real-time reporting and full compatibility with German standards. Powered by a single air motor, the system drives the belt mechanism smoothly using compressed air, ensuring consistent and safe cable installation.
MiniSKY Plus offers excellent control, stable performance, and easy operation—making it the perfect choice for professional fiber installation projects.
Technicial Specifications
| Technical Specifications | |
|---|---|
| Cable Diameter Range | 2.5 mm – 16 mm |
| Microduct Diameter Range | 7 mm – 50 mm |
| Motor Type | Single Air Motor (Optional Second Motor) |
| Operating Air Pressure | Max. 12 Bar |
| Recommended Air Consumption | Minimum 1 m³/min at 7 Bar |
| Protokoll System | Computer-Based Reporting System |
| Power Source | Compressed Air |
| Designated For | Germany (Protokoll Approved) |
