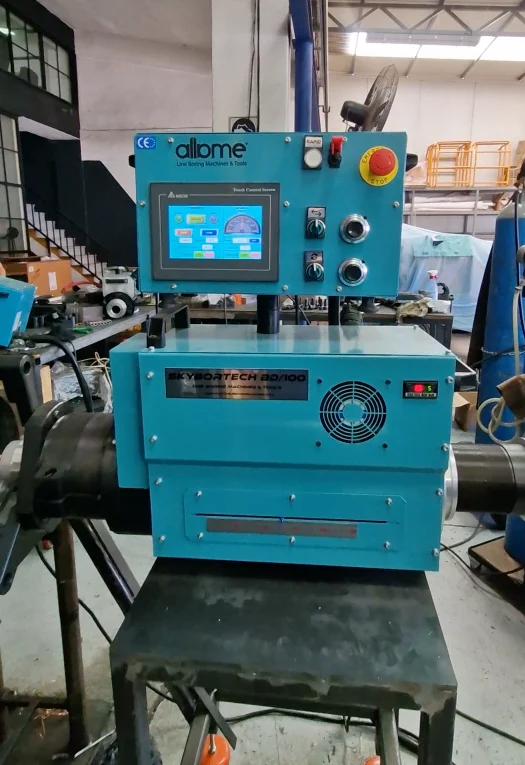

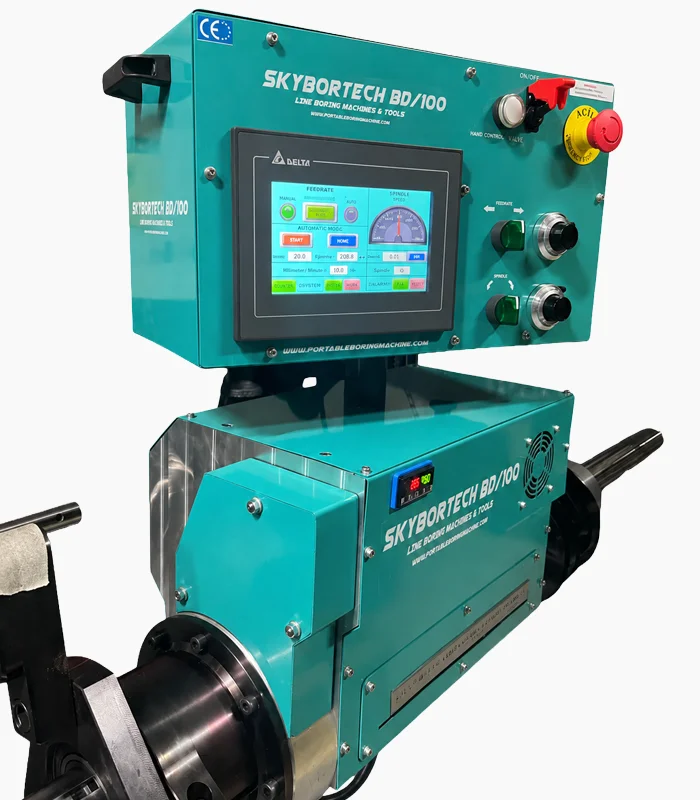

BD 100 Line Boring Machine
The BD 100 Portable Line Boring Machine is designed for heavy-duty on-site boring and in-hole welding applications. Built with a robust 100 mm bar shaft, it delivers excellent stability and consistent machining performance, even when working on large-diameter bores.
Description
BD 100 Portable Line Boring Machine
The BD 100 Portable Line Boring Machine is designed for heavy-duty on-site boring and in-hole welding applications. Built with a robust 100 mm bar shaft, it delivers excellent stability and consistent machining performance, even when working on large-diameter bores.
The machine supports boring operations from 102 mm to 1000 mm and in-hole welding from 105 mm to 1000 mm, making it suitable for a wide range of heavy equipment repairs. Powered by a 1500 Watt AC servo motor running at 2000 RPM, the BD 100 provides smooth rotation, stable torque, and precise machining control.

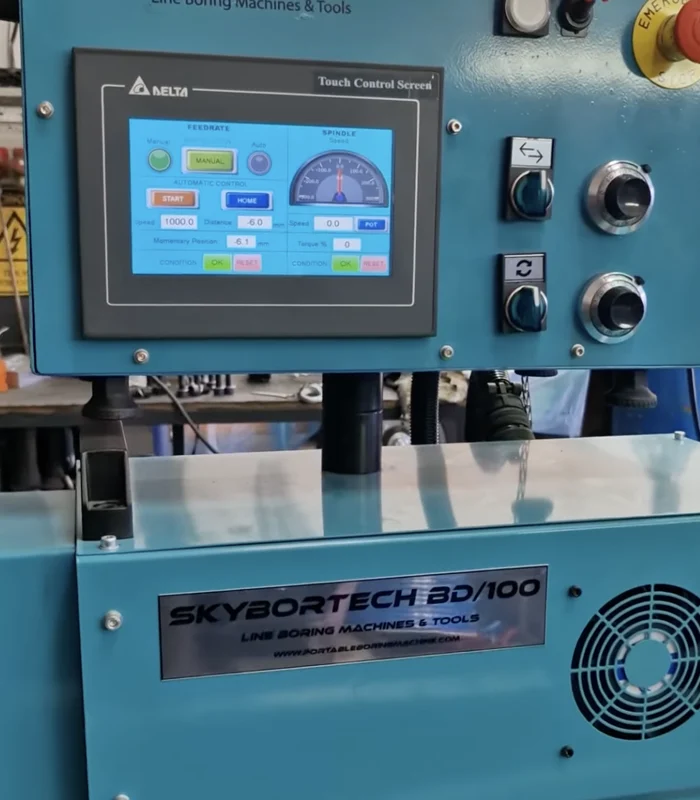

Its servo-controlled feed system offers accurate forward and reverse movement with adjustable feed rates from 0.05 mm to 95 mm, allowing operators to achieve high-quality surface finishes in different repair conditions. The 230 mm stroke provides sufficient travel for most on-site machining applications while maintaining a compact and easy-to-handle design.
Designed for construction, mining, industrial maintenance, and heavy equipment repair, the BD 100 combines power, precision, and portability in one reliable solution.
| Specification | Value |
|---|---|
| Bar Shaft Diameter | 100 mm |
| Boring Diameter Range | 102 mm – 1000 mm |
| In-hole Welding Range | 105 mm – 1000 mm |
| Bar Shaft Turn Motor | |
| Motor Power | 1500 Watts, 2000 RPM |
| Working Voltage | 220–240 VAC (Servo System) |
| Motor Gearbox | 1/10 Rotation, 72 Nm Max. |
| Electric Drive Specifications | |
| Rotation Speed | 1–140 RPM |
| Working Voltage | 220–240 VAC |
| Feed Motor | AC Servo System, 400 Watts |
| Feed Speed Adjustment | 0.05 mm – 95 mm |
| Feed Motor Voltage | 220–240 VAC |
| Feed Motor Gearbox | 1/10 Rotation, 13 Nm Max. |
| Stroke | 230 mm |
