Full Hydraulic Cable Drum Trailer 15 Ton
The 15 Ton Full Hydraulic Cable Drum Winder Trailer designed for easy and reliable cable transport and unwinding.
Description

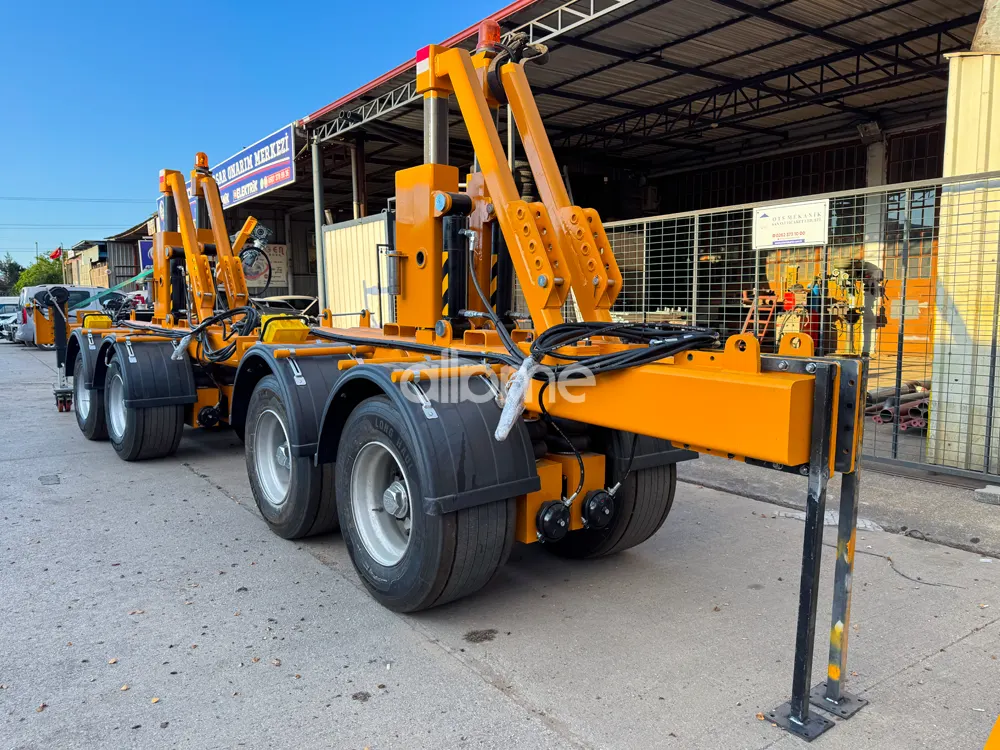

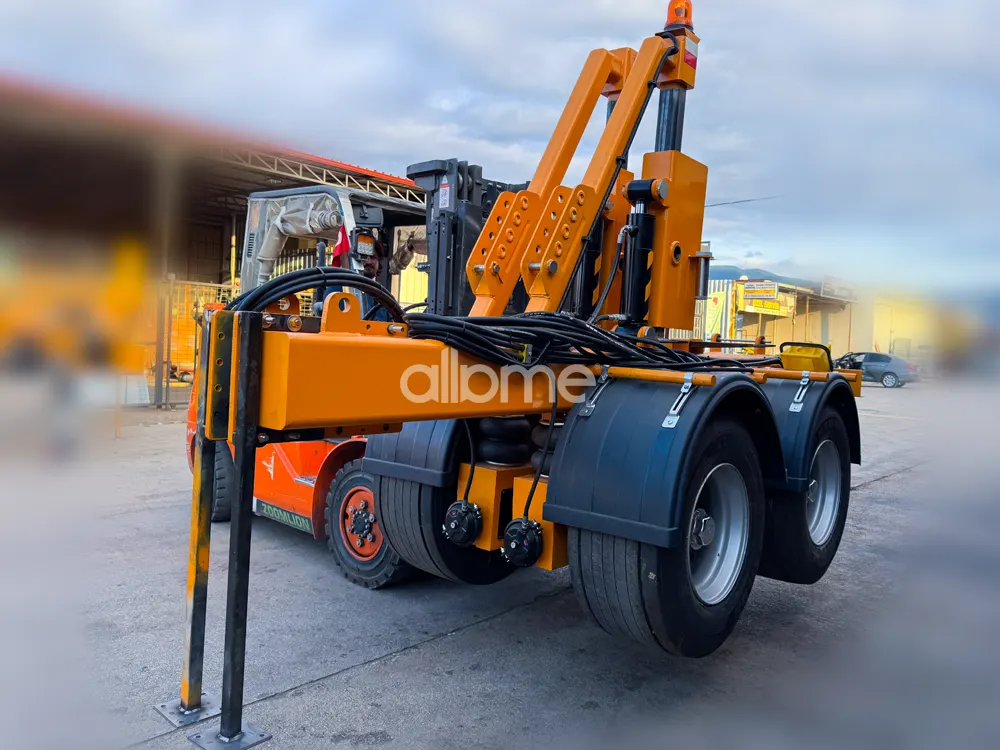

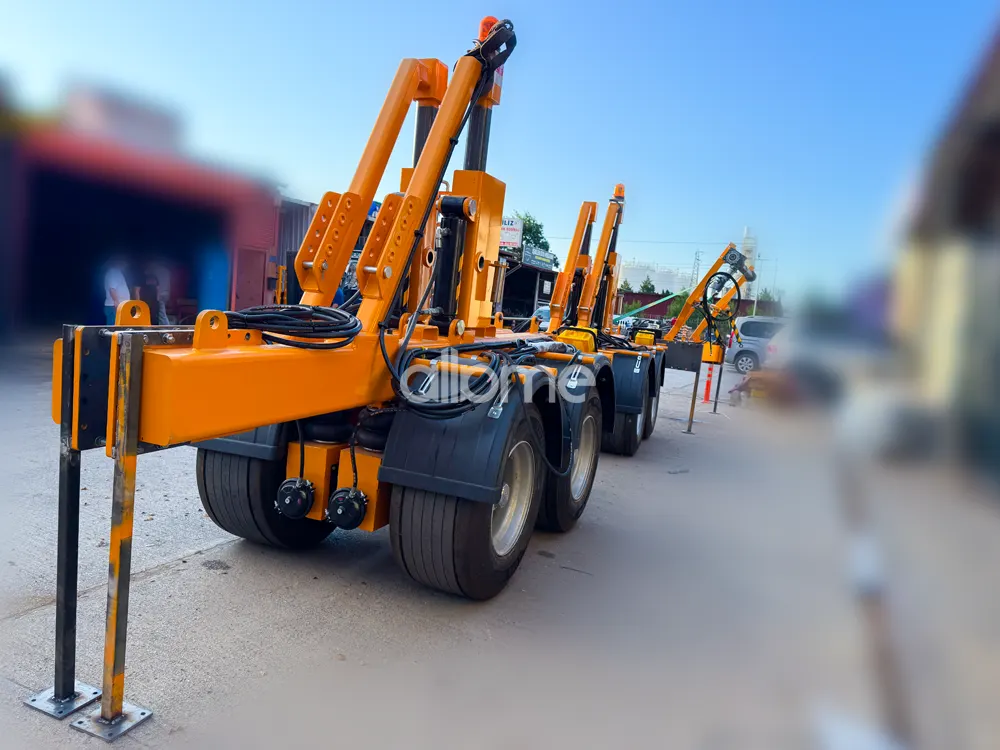

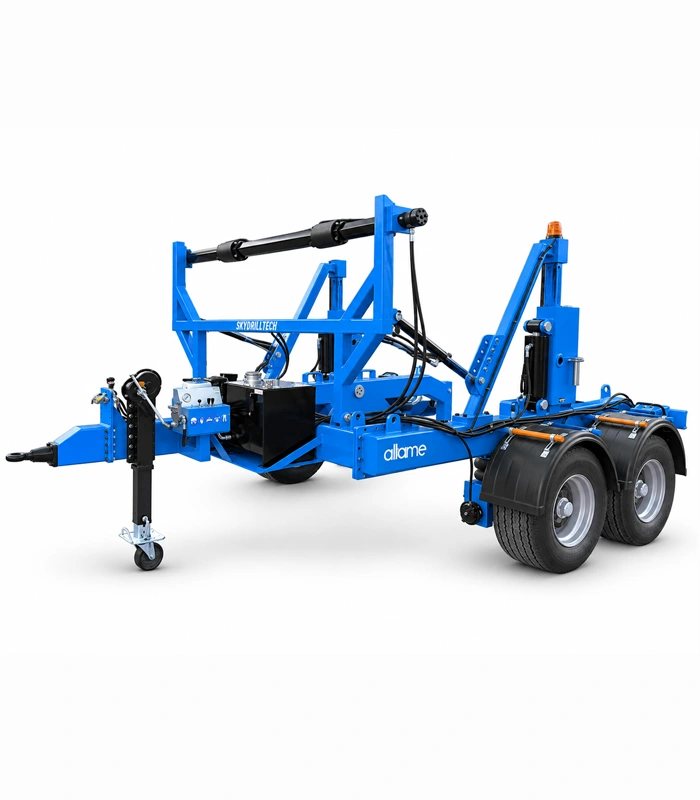

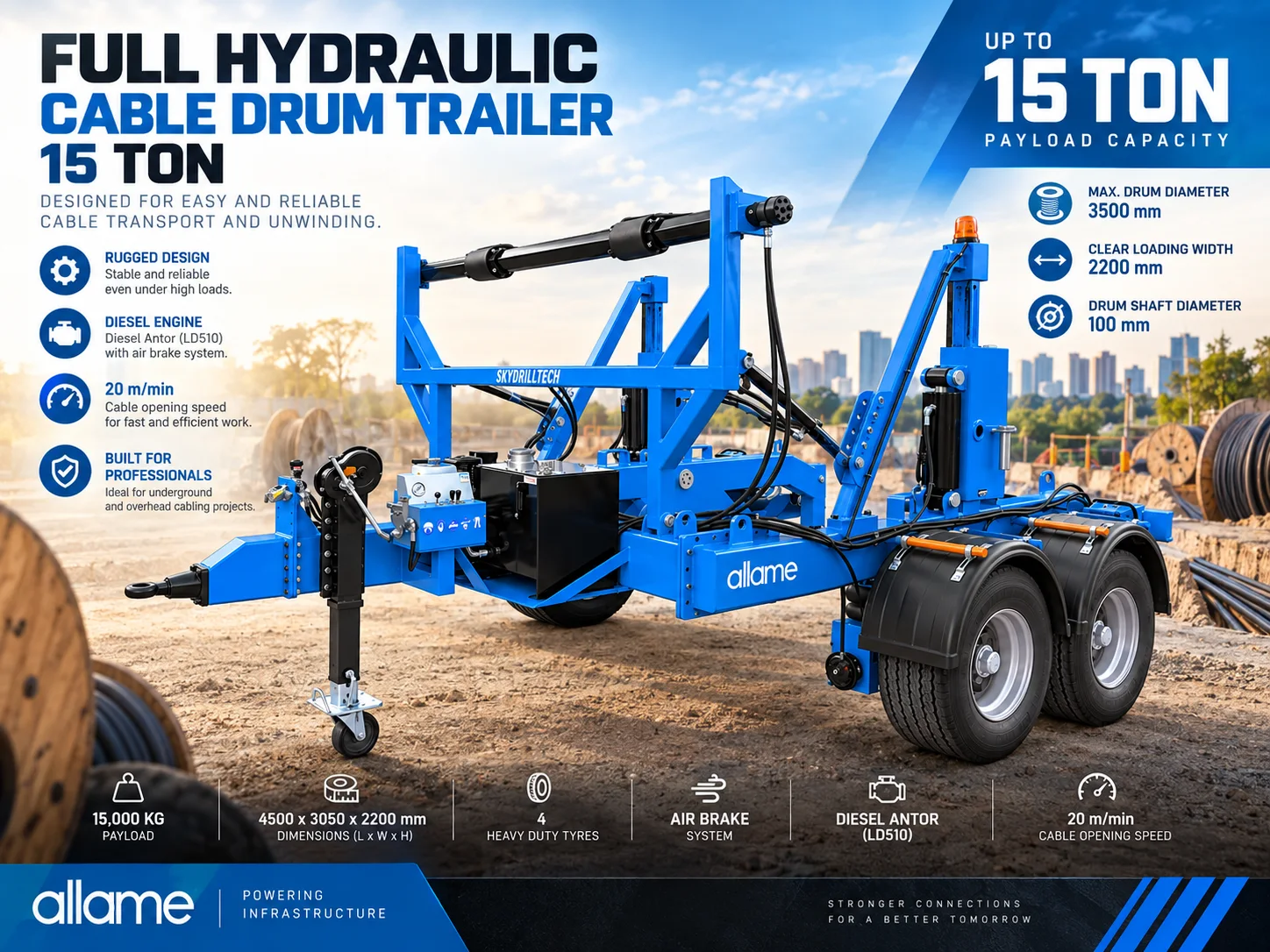

Full Hydraulic Cable Drum Trailer 15 Ton
The 15 Ton Full Hydraulic Cable Drum Winder Trailer designed for easy and reliable cable transport and unwinding.
It has rugged design and hydraulic lift for easy drum handling even under high loads.
Powered by a reliable Diesel Antor (LD510) engine with air brake system as standard, it is designed for safe and stable on ad off- site operation.
This trailer makes it easy to load large drums with a 3500 mm drum diameter capacity and 2200 mm clear loading width.

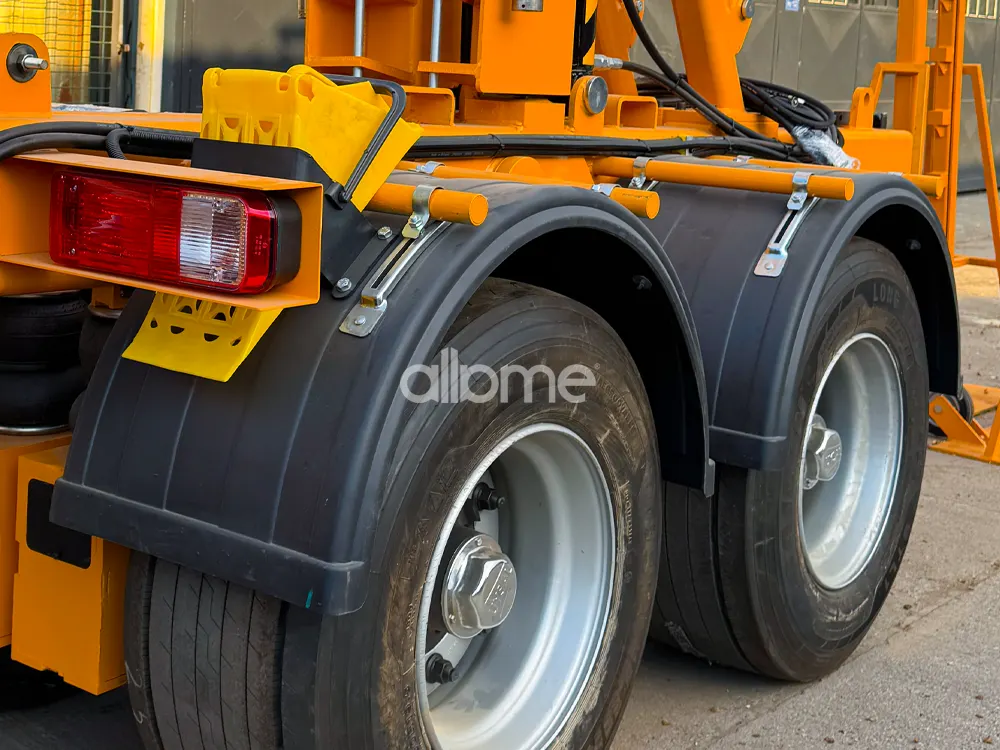

Four heavy duty wheels and strong frame provide great stability while laying cables.
Providing control and power for series/parallel operations, the model has a cable opening speed rate of 20 m/min, making it both simple to use and yet powerful enough to cope with power & telecom works.
Great for contractors working on large-quantity underground and overhead cabling sites, the 15-ton option offers strength, accuracy and security in a single machine.
Technicial Specifications
| Purchase Number | FHCDT-15 |
|---|---|
| Length (mm) | 4500 |
| Width (mm) | 3050 |
| Height (mm) | 2200 |
| Empty Weight (kg) | 2350 |
| Payload (kg) | 15000 |
| Total Weight (kg) | 17350 |
| Brake | Air Brake |
| Max. Drum Diameter (mm) | 3500 |
| Clear Loading Width (mm) | 2200 |
| Drum Shaft Diameter | 100 mm |
| Tyres | 4 |
| Tyre Size | 1000 x 22.5 |
| Cable Opening Speed | 20 m/min |
| Engine | Diesel Antor (LD510) |
