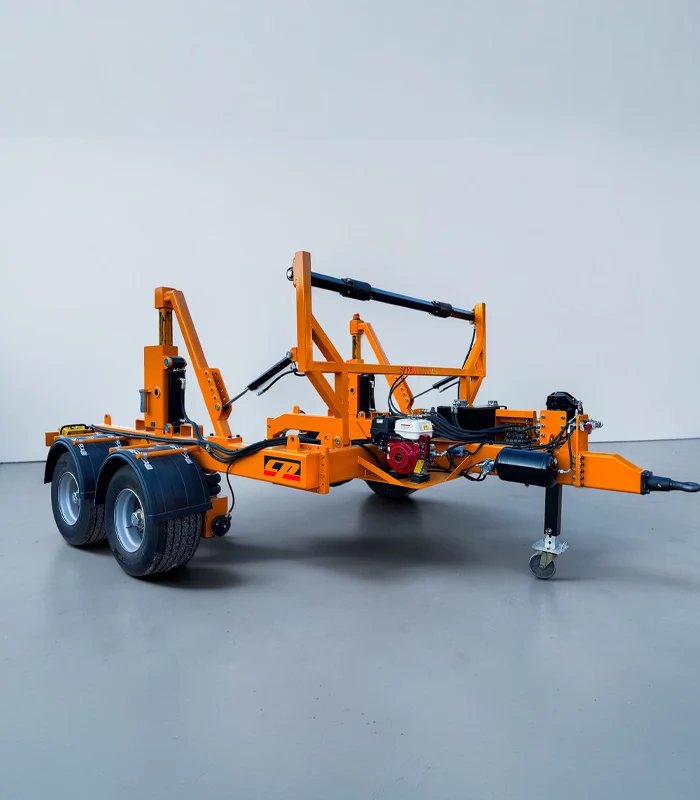

Full Hydraulic Cable Drum Trailer 20 Ton

20T Full Hydraulic Cable Drum Trailer This trailer is designed for the heaviest and most arduous cable transport and uncoiling.



Description

Full Hydraulic Cable Drum Trailer 20 Ton

20T Full Hydraulic Cable Drum Trailer This trailer is designed for the heaviest and most arduous cable transport and uncoiling.

Its strong chassis, high-performance hydraulic lifting system and durable structure offer a reliable service in all large-scale power or communication cable projects.

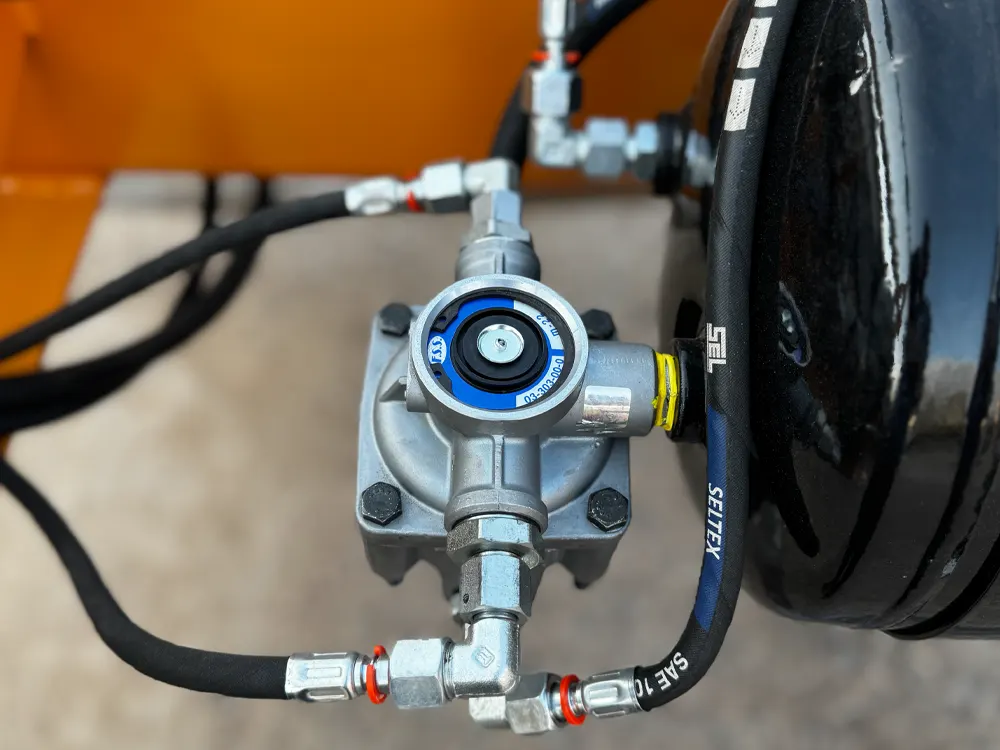

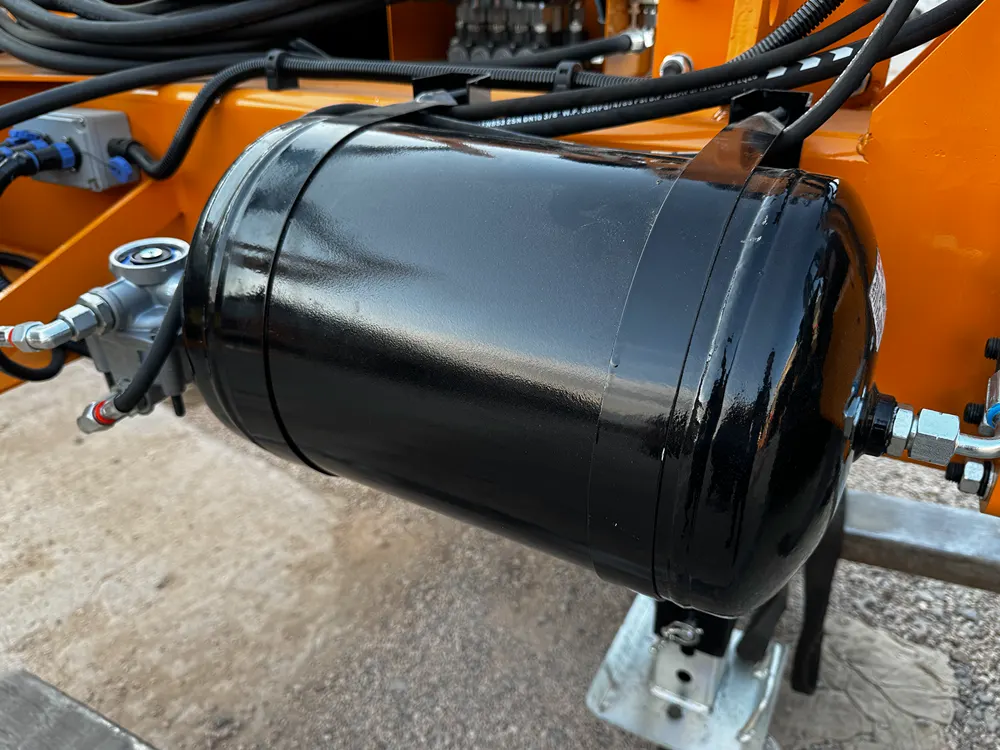

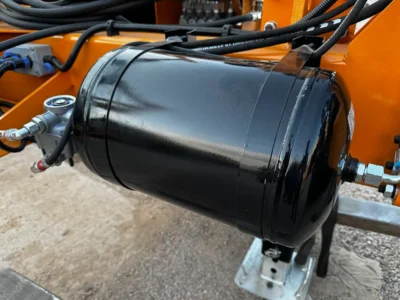

With a fuel efficient Diesel Antor (LD510) engine, as well as full air brake system you know you can safely and comfortably cover all of your field work with this trailer.

Featuring heavy load capactity (20,000kg) this is useful for accommodating extra large drums up to 4000mm in diameter.

Four heavy duty tyres combined with wide 2500mm loading width make for exceptional stability and ease of driving.

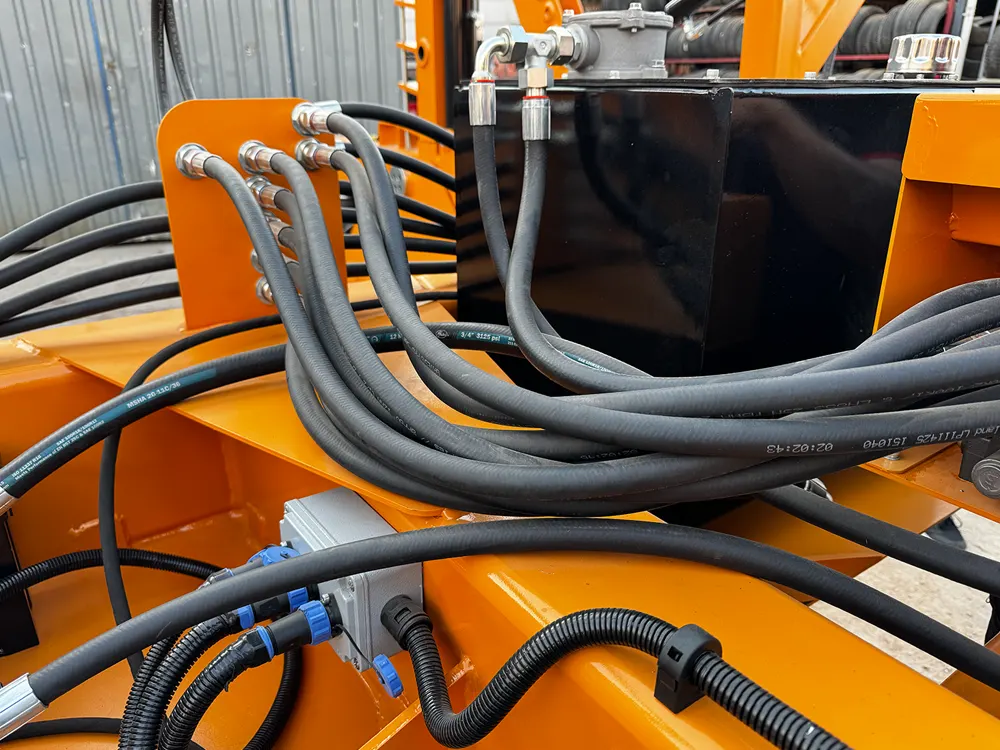

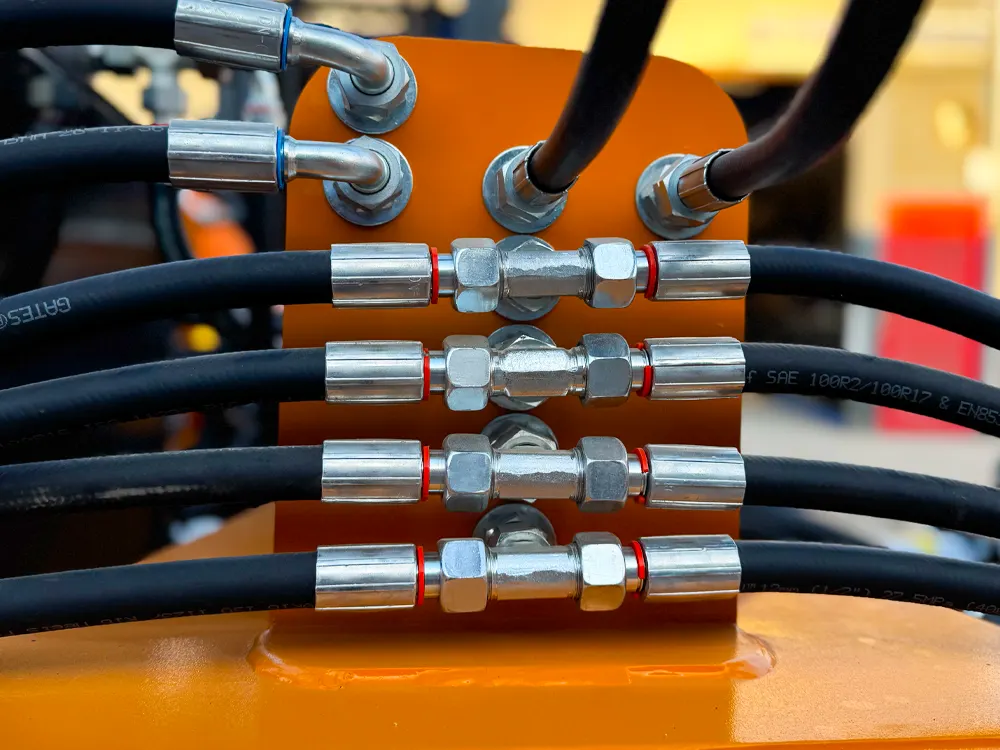

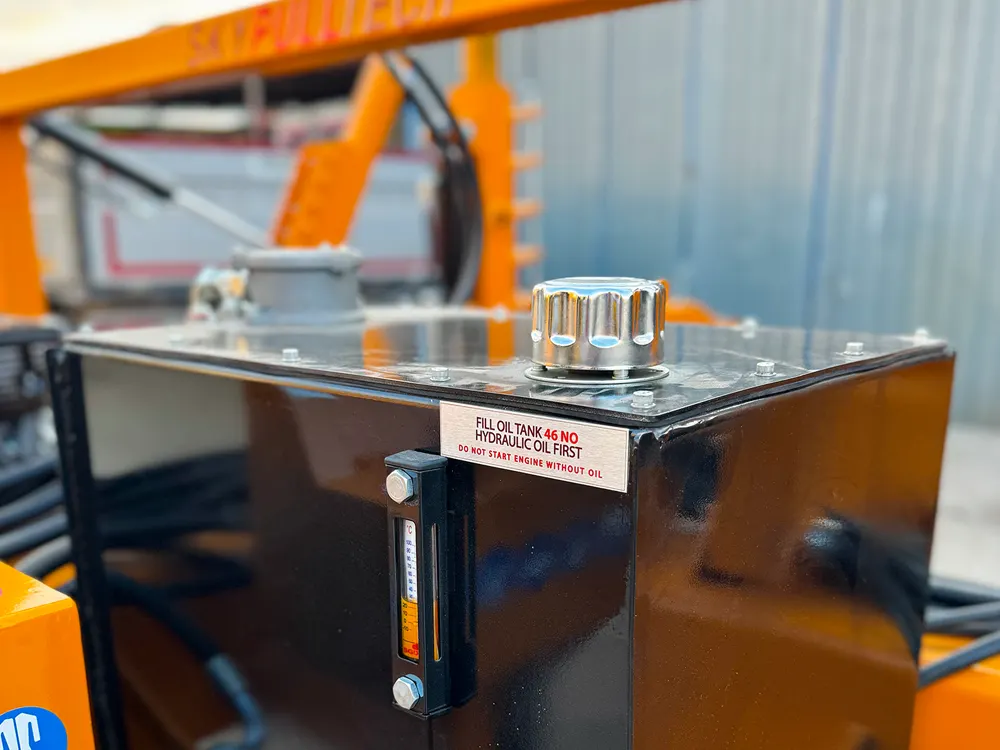

Through advanced hydraulic control system of its lifting and releasing device, as well as a speedy cable releasing speed of 20m/min, this machine is used for long-distance laying.

Constructed for durability and lasting performance, the FHCDT-20 is a rugged efficient and durable solution for all your heavy duty cable handling.

Technicial Specifications

Purchase Number FHCDT-20
Length (mm) 5000
Width (mm) 4000
Height (mm) 2500
Empty Weight (kg) 3500
Payload (kg) 20000
Total Weight (kg) 23500
Brake Air Brake
Max. Drum Diameter (mm) 4000
Clear Loading Width (mm) 2500
Drum Shaft Diameter 125 mm
Tyres 4
Tyre Size 1100 x 22.5
Cable Opening Speed 20 m/min
Engine Diesel Antor (LD510)

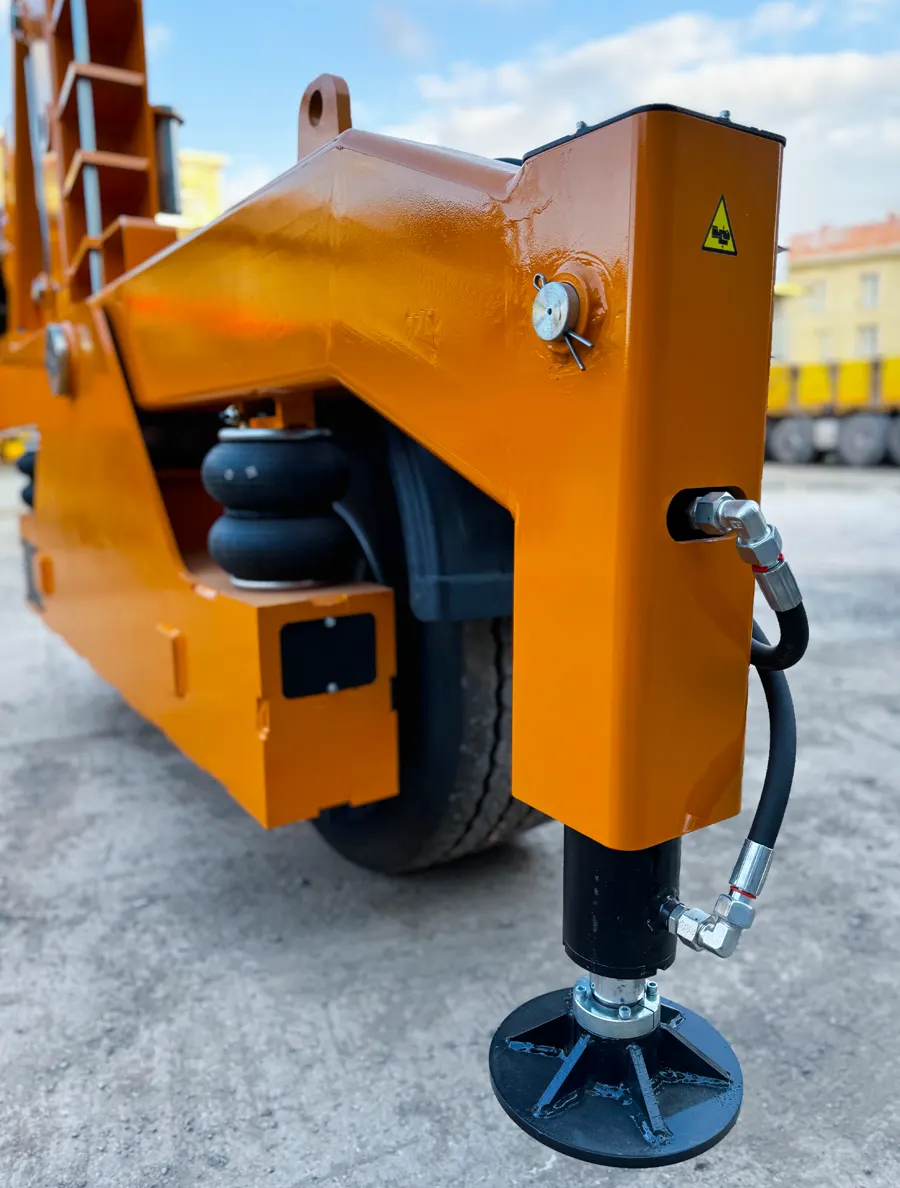

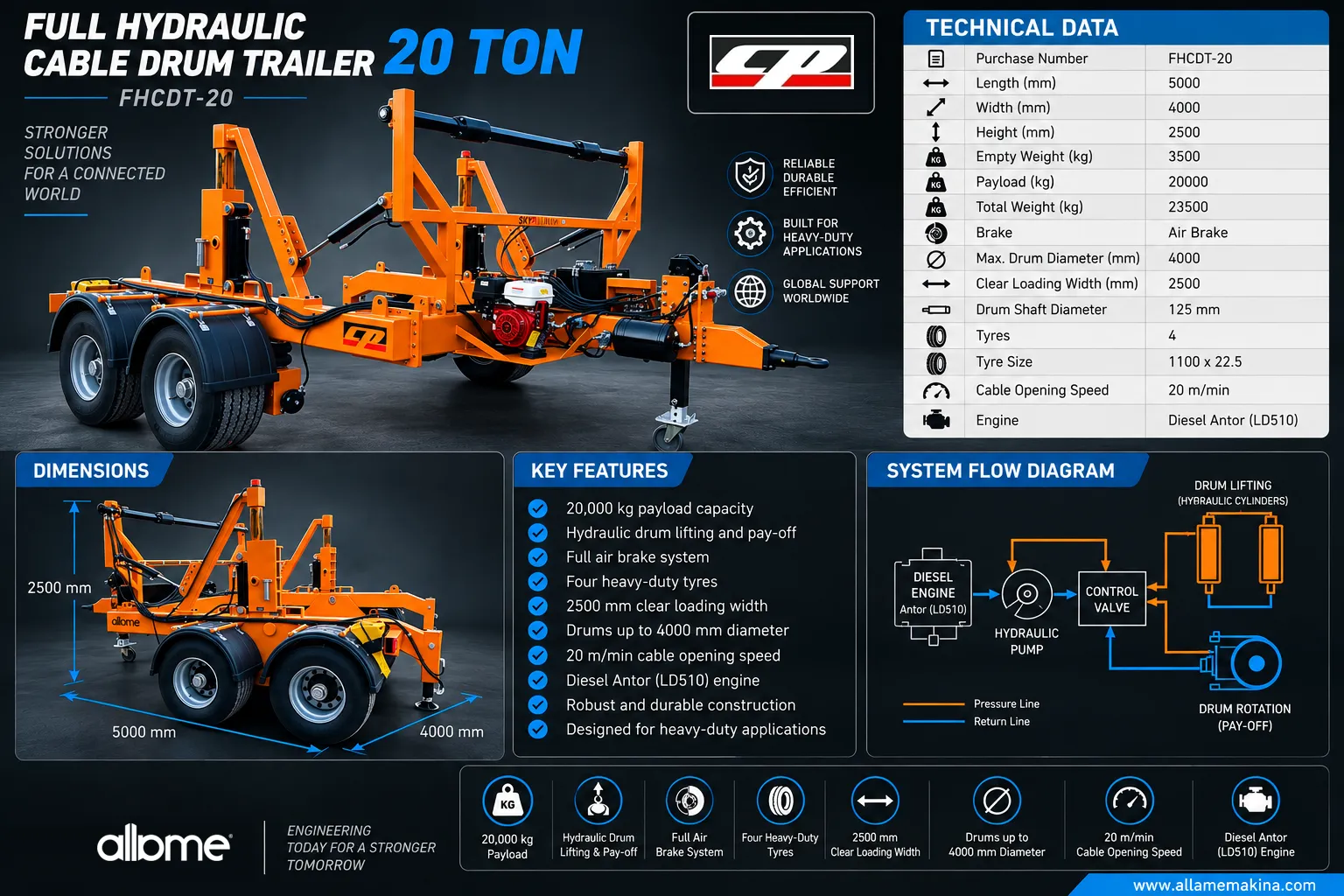

Full Hydraulic Cable Drum Trailer Details
