Full Hydraulic Cable Drum Trailer 30 Ton
30 ton full hydraulic cable drum trailer is designed for heavy construction projects that requires strength and accuracy.
Description

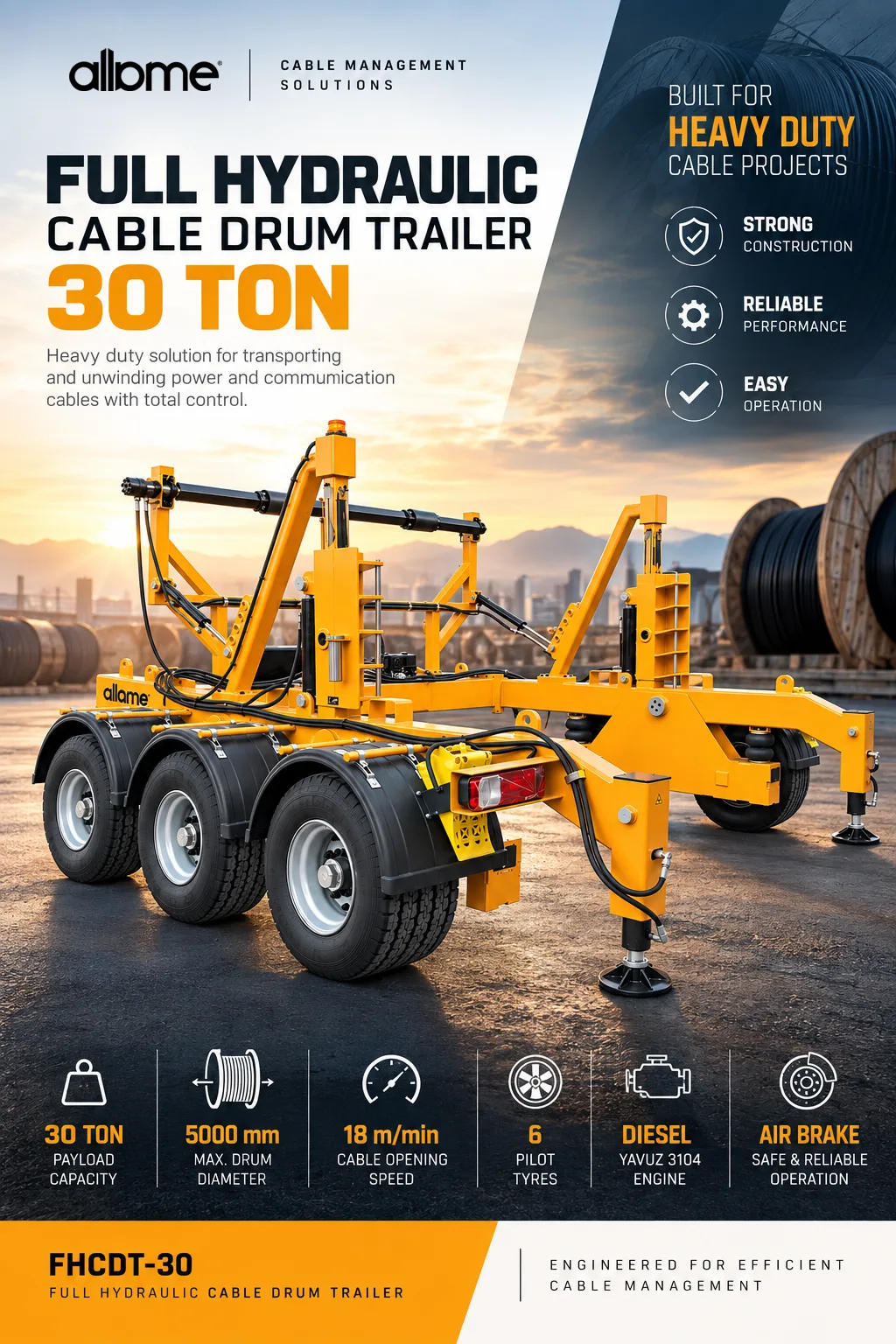

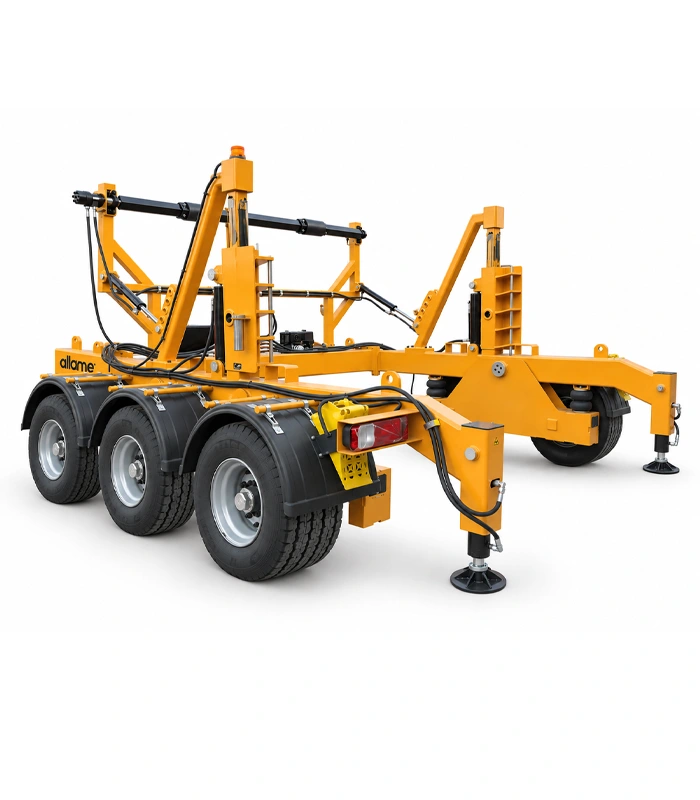

Full Hydraulic Cable Drum Trailer 30 Ton
30 ton full hydraulic cable drum trailer is designed for heavy construction projects that requires strength and accuracy.
This sturdy unit gives superior performance when transporting and unwinding cables, even heavy power or communication cable can be transported and unreeled easily with total control.
Powered by a Diesel Yavuz 3104 engine and complete with full air brakes, it guarantees power, performance and safety in any conditions.
Thanks to a payload capacity of 30,000 kg and a drum diameter up to 5000 mm, no assignment is too heavy for this trailer.
Paulson offers six pilot tires for stability and smooth travel on rough terrain, plus hydraulic lifting system for quick and precise bracket loads.
A cable opening speed (18 m/min) of this MRE ensures even performance in multistretching cables laying process.
Constructed to withstand a steel frame and designed for long-term performance, the FHCDT-30 is the ideal mix of rugged sturdiness and efficient ease of use — a trusty ally in any heavy-duty cable-management application.
Technicial Specifications
| Purchase Number | FHCDT-30 |
|---|---|
| Length (mm) | 6000 |
| Width (mm) | 4500 |
| Height (mm) | 2500 |
| Empty Weight (kg) | 6500 |
| Payload (kg) | 30000 |
| Total Weight (kg) | 36500 |
| Brake | Air Brake |
| Max. Drum Diameter (mm) | 5000 |
| Clear Loading Width (mm) | 2800 |
| Drum Shaft Diameter | 125 mm |
| Tyres | 6 |
| Tyre Size | Pilot Tyres |
| Cable Opening Speed | 18 m/min |
| Engine | Diesel (Yavuz 3104) |
