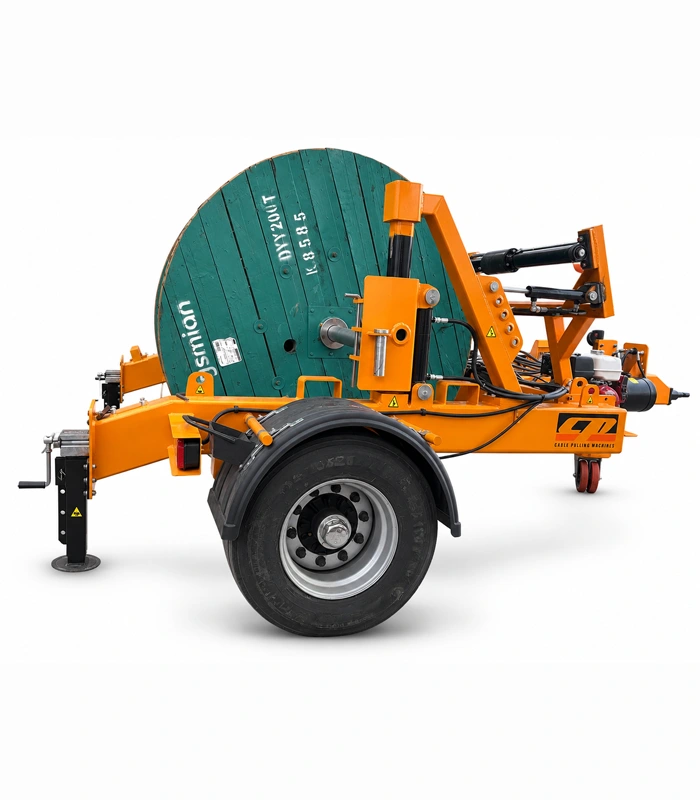

Full Hydraulic Cable Drum Trailer 7 Ton
The Full Hydraulic 7-ton Cable Drum Pay-off Stand And Trailer is used for lifting and laying cable drum during the cable-laying construction. Featuring a durable steel frame and remarkable hydraulics, this trailer provides secure Tilting / lowering / Rotating the drum for easy cable pulls.
Description
Full Hydraulic Cable Drum Trailer 7 Ton
The Full Hydraulic 7-ton Cable Drum Pay-off Stand And Trailer is used for lifting and laying cable drum during the cable-laying construction. Featuring a durable steel frame and remarkable hydraulics, this trailer provides secure Tilting / lowering / Rotating the drum for easy cable pulls.

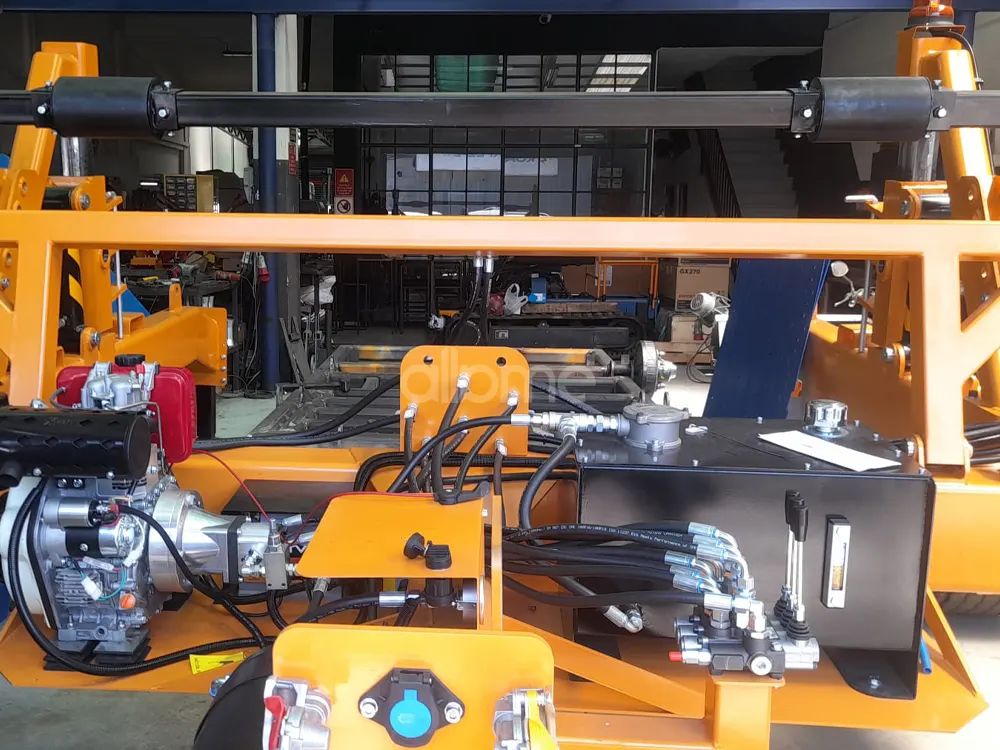

Powered by a durable gas engine, get the portability you need to take your audio anywhere on the farm. The hydraulic power in the trailer maintains a smooth motion of the drum permitting exact cable laying speeds up to 40 meters per minute.
For added towing security, the STC uses an over-run brake system; the drum is mounted on a heavy duty 83mm shaft. It also has wide load area and two durable wheels to suit the rugged road and work situations.
Whether as a hard working addition to your energy project, telecom installation or large scale cable work, this 7-ton hydraulic trailer is built to perform just about any task thrown at it and keep on going.

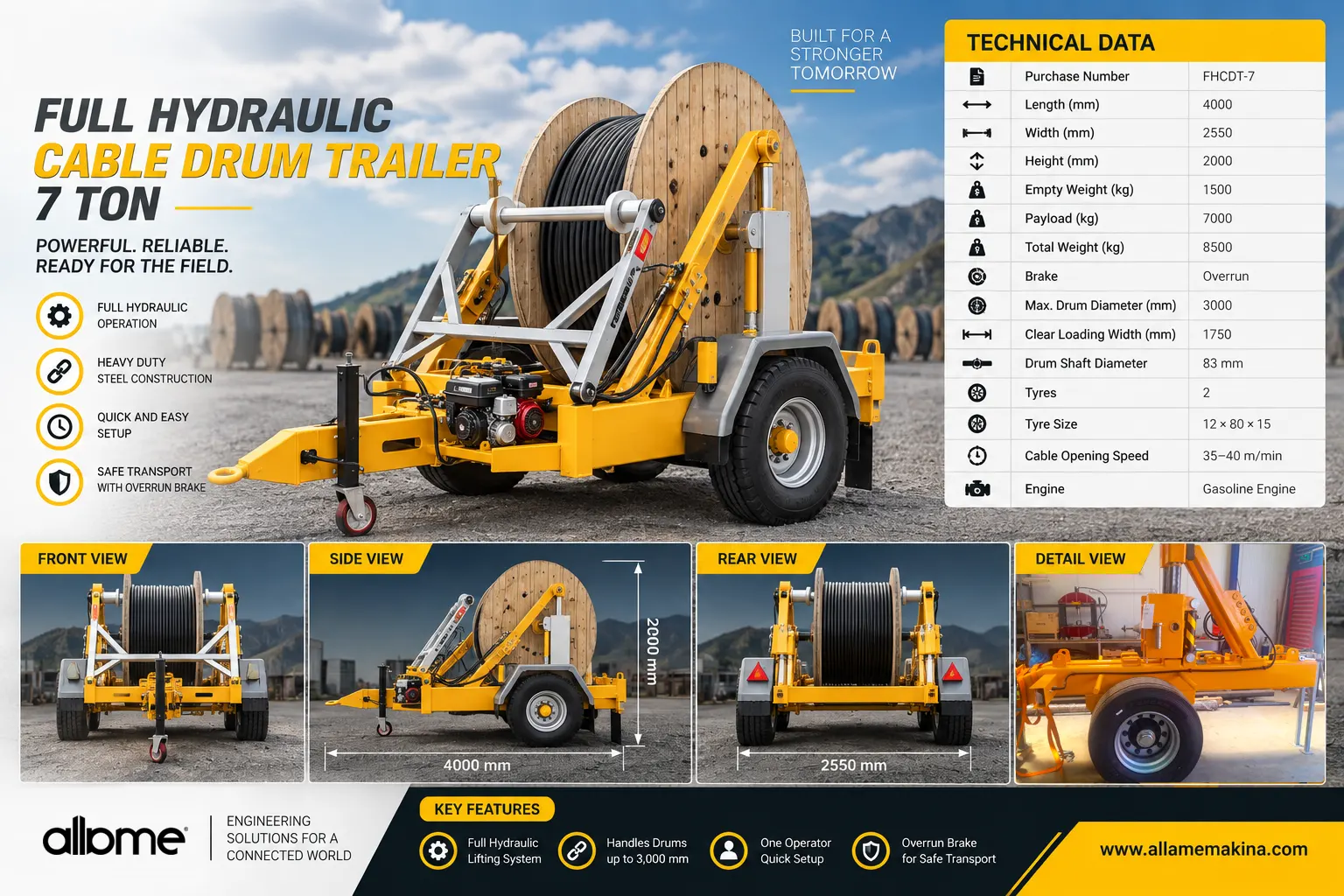

Technicial Specifications
| Purchase Number | FHCDT-7 |
|---|---|
| Length (mm) | 4000 |
| Width (mm) | 2550 |
| Height (mm) | 2000 |
| Empty Weight (kg) | 1500 |
| Payload (kg) | 7000 |
| Total Weight (kg) | 8500 |
| Brake | Overrun |
| Max. Drum Diameter (mm) | 3000 |
| Clear Loading Width (mm) | 1750 |
| Drum Shaft Diameter | 83 mm |
| Tyres | 2 |
| Tyre Size | 12 x 80 x 15 |
| Cable Opening Speed | 35–40 m/min |
| Engine | Gasoline Engine |
