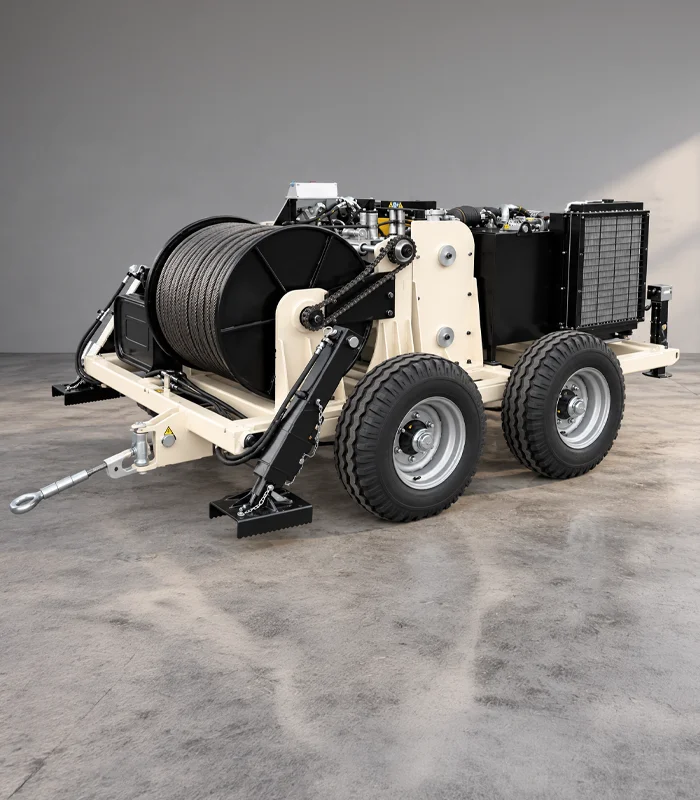

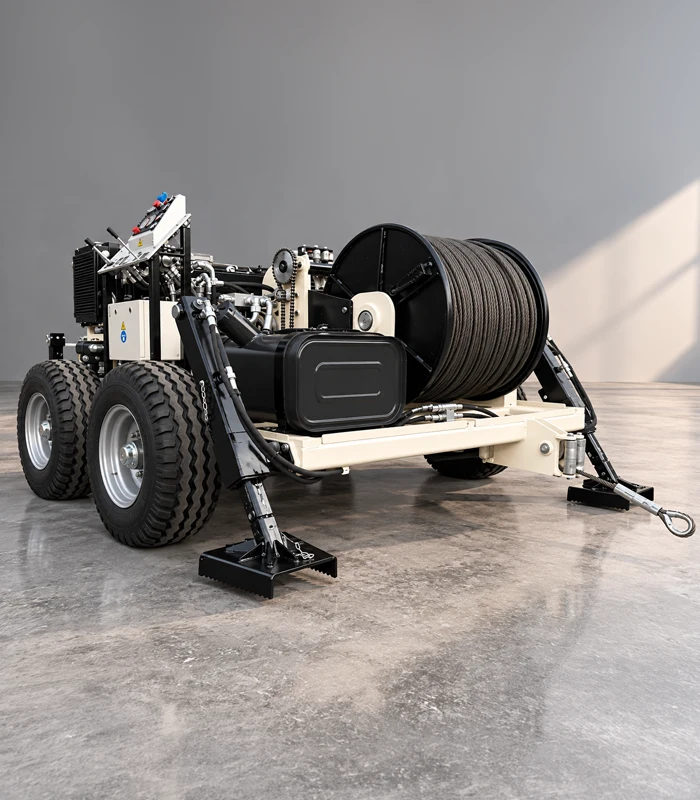

Hydraulic Cable Pulling Winch 10 Ton
10 Ton Hydraulic Cable Pulling Machine 10 Ton Hydraulic Cable Puller for pulling cable in underground trench and wire installation.
Description
Hydraulic Cable Pulling Winch 10 Ton
10 Ton Hydraulic Cable Pulling Machine 10 Ton Hydraulic Cable Puller for pulling cable in underground trench and wire installation.
It provides force of 100 kN at most, thus perfect for heavy cables found in power and communications projects.
The hydraulic system is driven by a Diesel engine and the performance is smooth and constant even under heavy loads.
Water cooled engine stabilizes the system during long working hours and guarantees enduring use in all situtation.
The dual axle chassis provides better weight distribution and balance under heavy load, while the metal housing shields all vital components from dirt and elements.
It provides the combination of precision and strength for a working supply application with speeds 30 m/min and more.
Engineered with Allame’s engineering prowess, this 10-tonne model brings three things together: strength, control and ease of use – and is the contractor’s choice globally.
Technicial Specifications
| Purchase Number | HCPM10 |
|---|---|
| Pulling Force | 100 kN |
| Rope Length | 500 m |
| Rope Diameter | 16 mm |
| Cable Pulling Speed | 30 m/min |
| Driving Unit | Hydraulic |
| Engine | Diesel |
| Engine Power | 85 kW |
| Engine Cooling | Water Cooled |
| Chassis | Double Axle |
| Brake System | Hand Brake ( optional air brake) |
| Enclosure | Standard Metal Enclosure |
| Color | Standard RAL 1028 or RAL 1034 (Optional RAL 3020) |
| Length (mm) | 4300 |
| Width (mm) | 2220 |
| Height (mm) | 1720 |
| Tyres | 4 |
| Empty Weight (kg) | 3900 |
