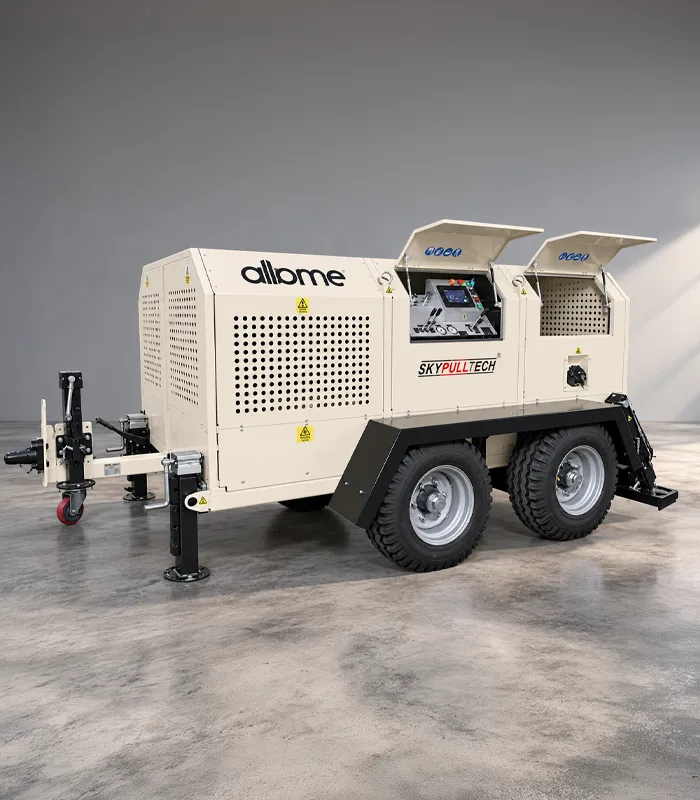

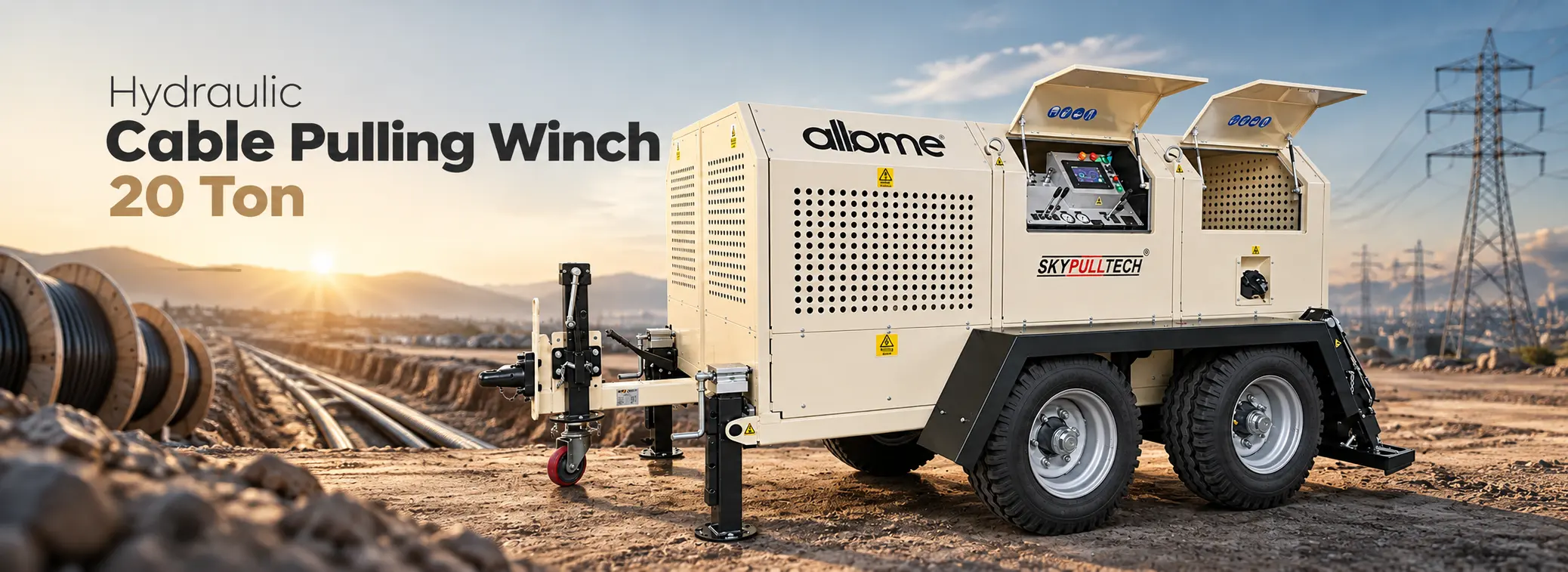

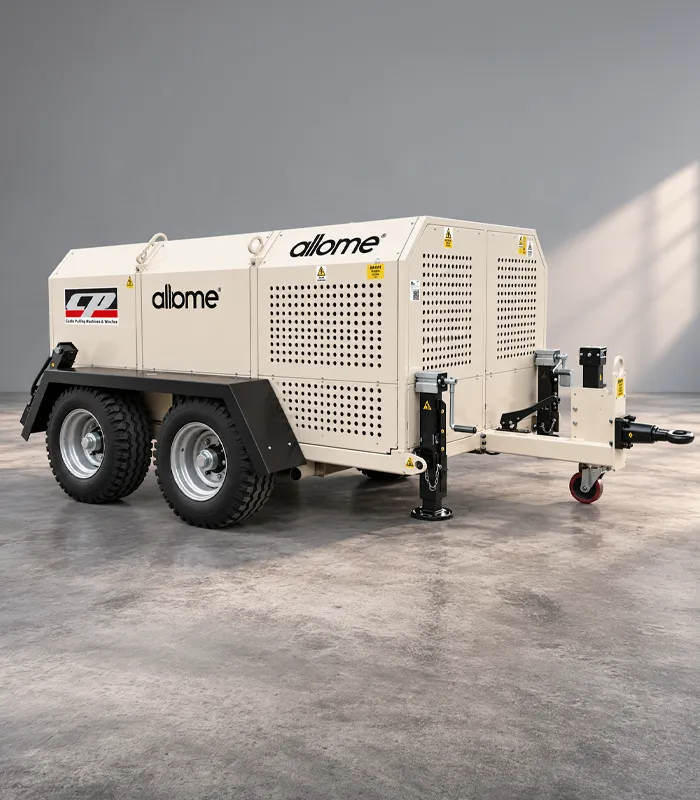

Hydraulic Cable Pulling Winch 20 Ton
The 20 Ton Hydraulic Cable Pulling Machine is designed for large-scale underground cable installations.
Description
Hydraulic Cable Pulling Winch 20 Ton
The 20 Ton Hydraulic Cable Pulling Machine is designed for large-scale underground cable installations.
It provides a pulling force of 200 kN, making it ideal for long-distance and high-tension cable pulling.
Powered by a diesel Yavuz 6304 engine, it ensures strong hydraulic flow and stable performance.
The double axle chassis gives excellent road stability, while the metal enclosure offers full protection.
With smooth operation and low maintenance, this model guarantees efficiency and durability in field work.
Technicial Specifications
| Purchase Number | HCPM20 |
|---|---|
| Pulling Force | 200 kN |
| Rope Length | 500 m |
| Rope Diameter | 22 mm |
| Cable Pulling Speed | 0–25 m/min |
| Driving Unit | Hydraulic |
| Engine | Diesel (Yavuz 6304) |
| Engine Power | 60 kW |
| Engine Cooling | Water Cooled |
| Chassis | Double Axle |
| Brake System | Overrun Brake |
| Enclosure | Standard Metal Enclosure |
| Color | RAL 1028 or RAL 1034 (Optional RAL 3020) |
| Length (mm) | 5000 |
| Width (mm) | 2100 |
| Height (mm) | 1600 |
| Tyres | 4 |
| Empty Weight (kg) | 5200 |
