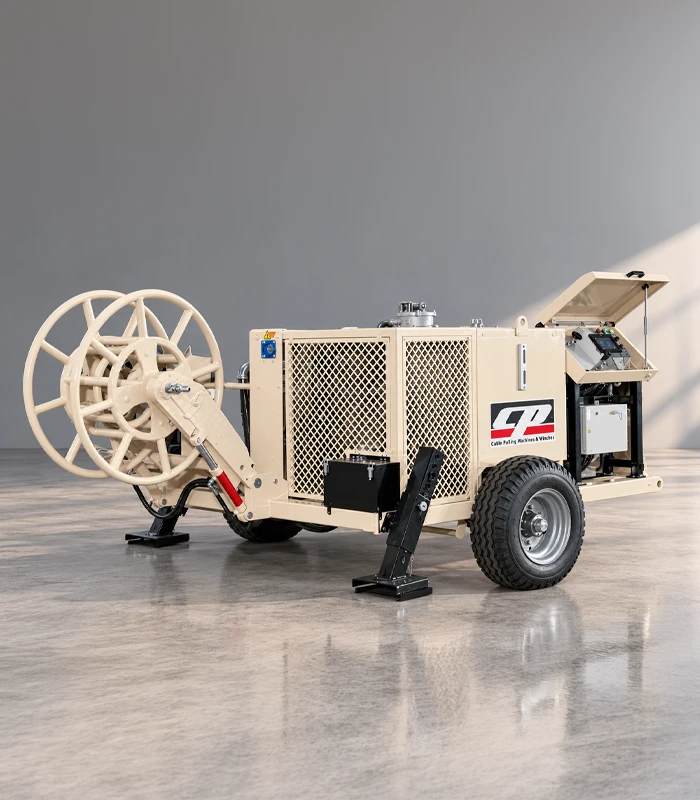

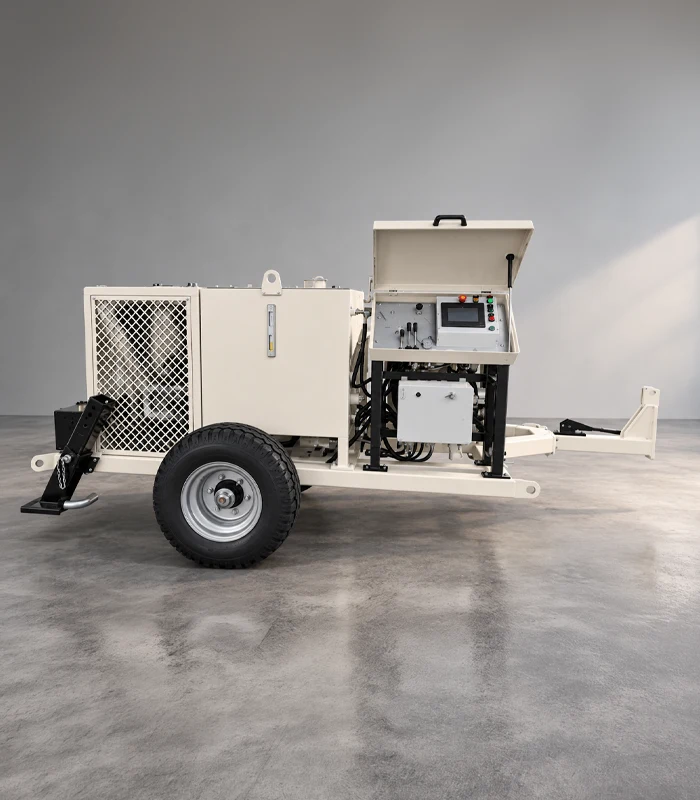

Hydraulic Cable Pulling Winch 5 Ton
The 5 Ton Hydraulic Cable Puller Machine is designed for the installation of cable or conductor.
Description
Hydraulic Cable Pulling Winch 5 Ton
The 5 Ton Hydraulic Cable Puller Machine is designed for the installation of cable or conductor.
It provides reliable pulling with a 50 kN (11,240 lbf) maximum pulling force perfect for power and communication line projects.
With the diesel engine, hydraulic drive unit design, this model allow stable power supply and reliable operation in heavy duty working conditions.
Its elegant design with air-cooler engine, long lasting power can be ensured and needs minimal maintenance; the single Axle chassis provide excellent maneuverability.
Its short wheelbase, sturdy body and optional metal casing is ideal for the city as well as off-road.
Delivering a Pulling Speed of 50 m/min and a Distance of 500 meters, you can ensure great control as well as consistent performance when laying cable.
Built to last, and engineered for efficiency, the 5-ton unit is everything you would expect from Allame – reliable performance in an attractive package.
Technicial Specifications
| Purchase Number | HCPM5 |
|---|---|
| Pulling Force | 50 kN |
| Rope Length | 500 m |
| Rope Diameter | 10 mm |
| Cable Pulling Speed | 30m/min |
| Driving Unit | Hydraulic |
| Engine | Diesel |
| Engine Power | 44 kW |
| Engine Cooling | Water Cooled |
| Chassis | Single Axle |
| Brake System | Hand Brake ( optional air brake) |
| Enclosure | Standard Brenda Enclosure (Optional Metal Enclosure) |
| Color | Standard RAL 1028 or RAL 1034 (Optional RAL 3020) |
| Length (mm) | 4200 |
| Width (mm) | 2100 |
| Height (mm) | 1600 |
| Tyres | 2 |
| Empty Weight (kg) | 2100 |
