The MiniSky is designed for blowing fiber optic cables with ease and precision. It supports cable sizes from 2.5 mm to 16 mm and works with microducts ranging from 7 mm to 50 mm. Powered by an air motor, it can also run with an additional second air motor for higher performance.
MINISKY

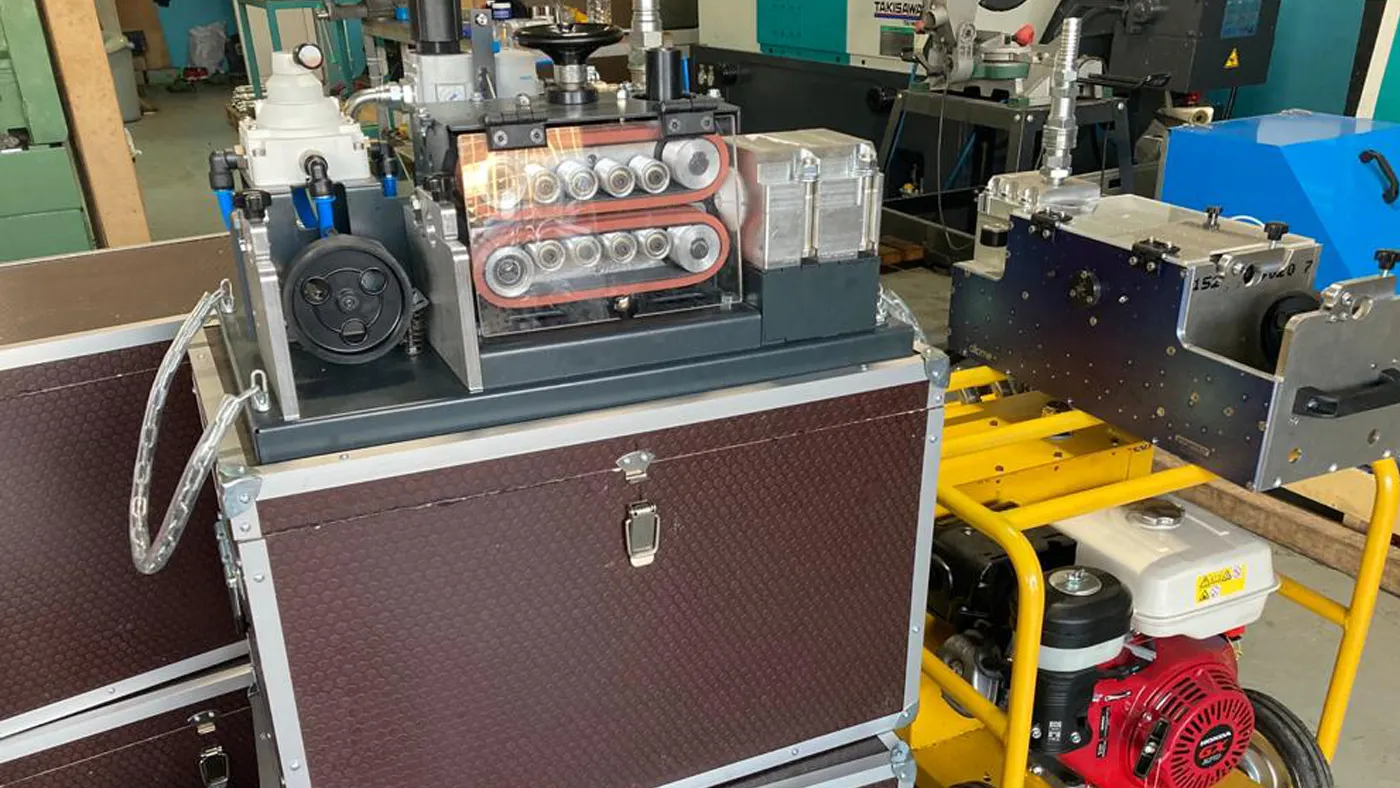

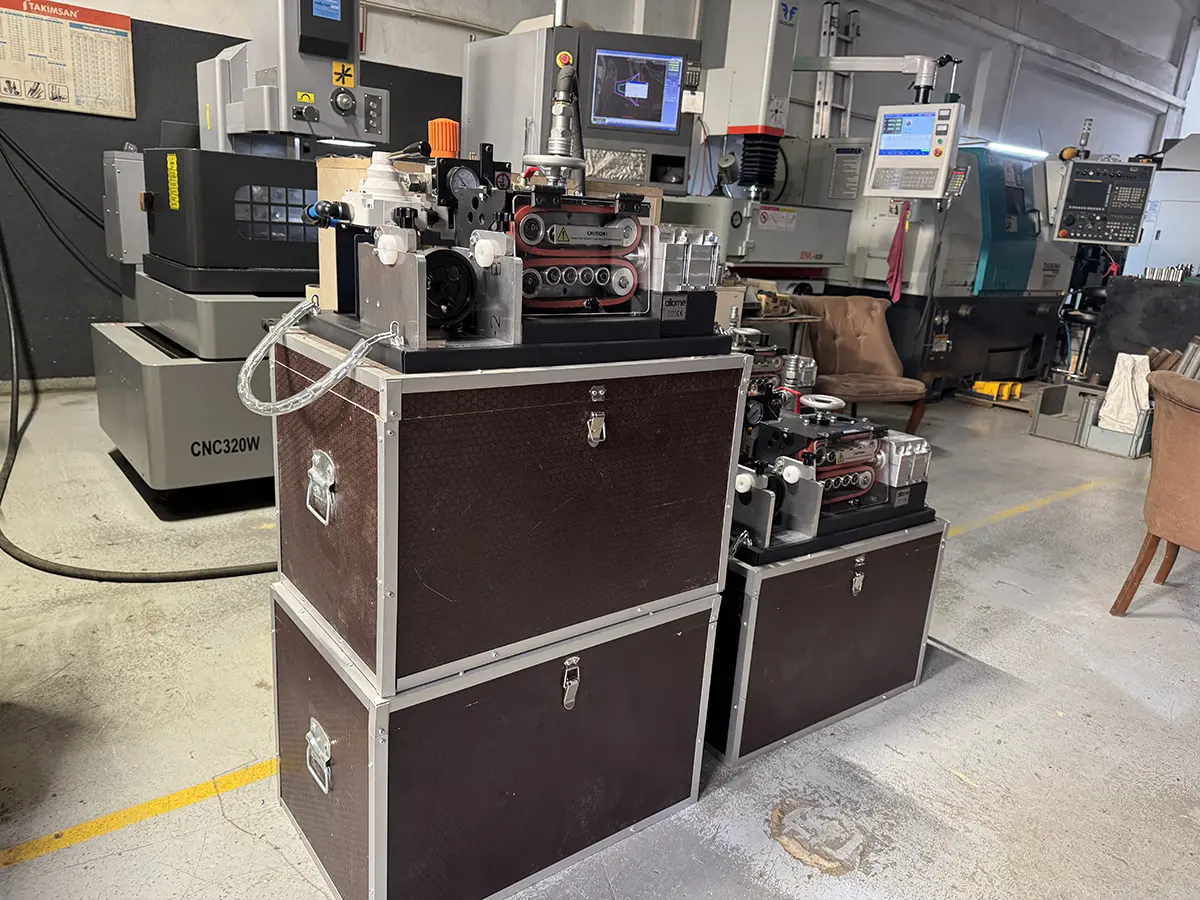

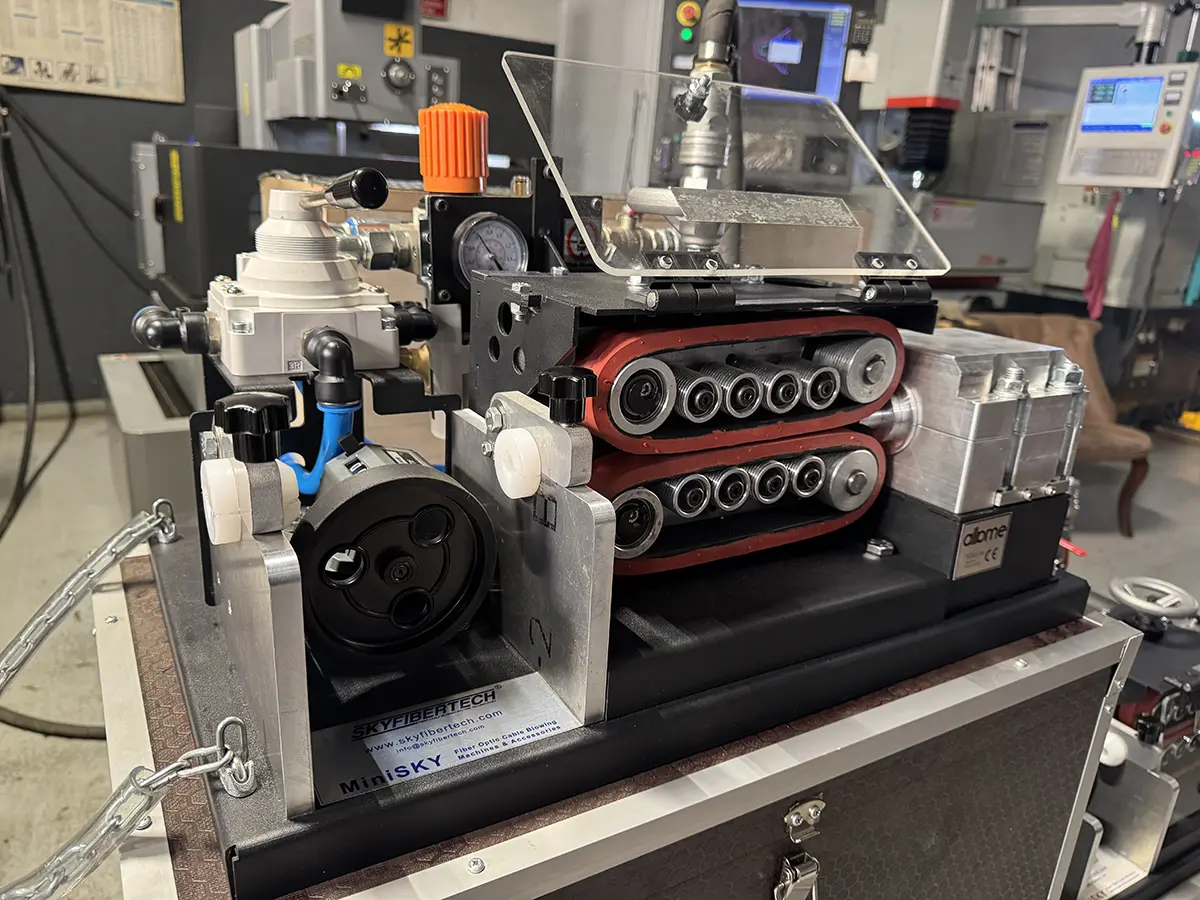

The MiniSky Cable Blowing Machine is built to push fiber optic cable into HDPE ducts. It handles cables from 2.5 mm up to 16 mm in diameter. It fits into microducts ranging from 7 mm to 50 mm.

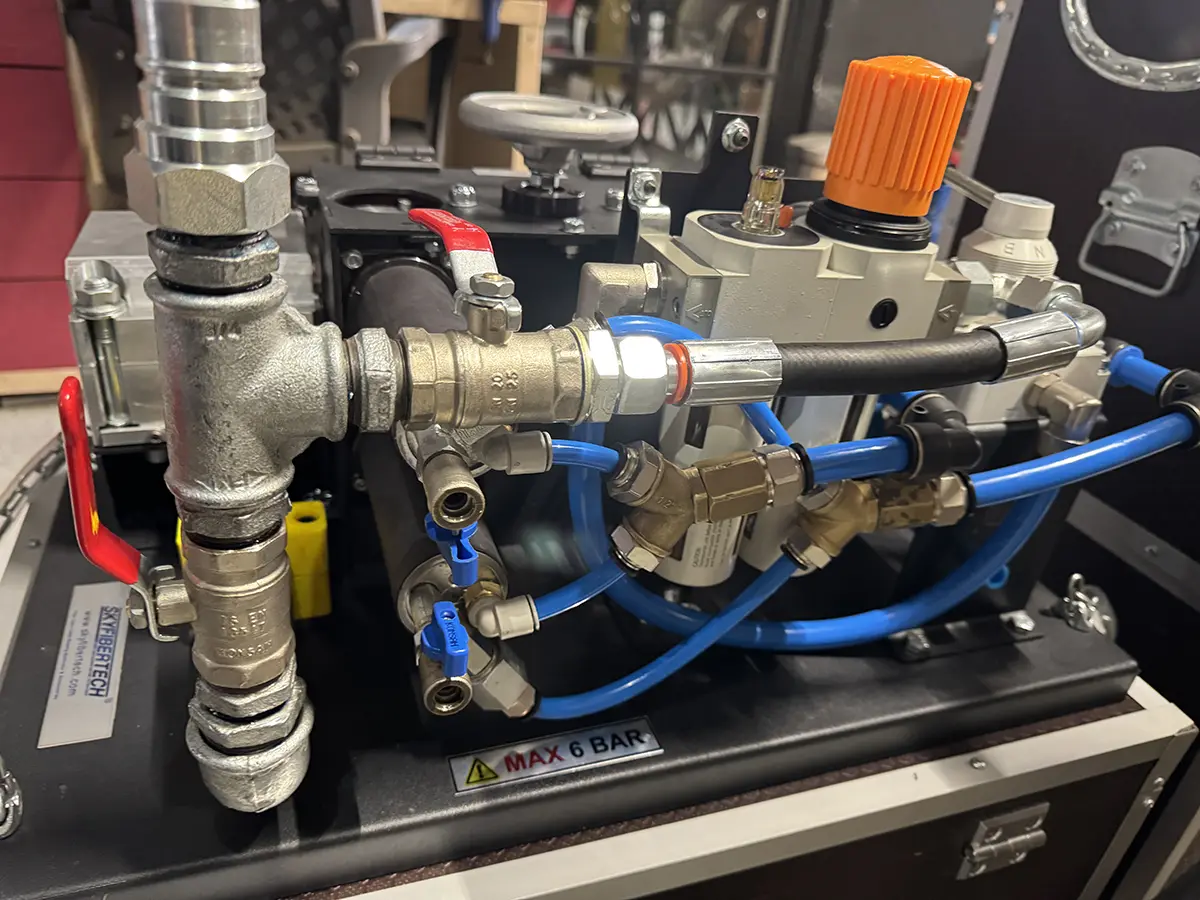

It uses an air motor to drive the belt system. You can choose to add a second air motor for more power. With a minimum air supply of 12 bar and about 1 m³/min (depending on cable and duct size), it works with common air compressors.
2.5 – 4 mm
5 – 8 mm
9 – 12 mm
13 – 16 mm

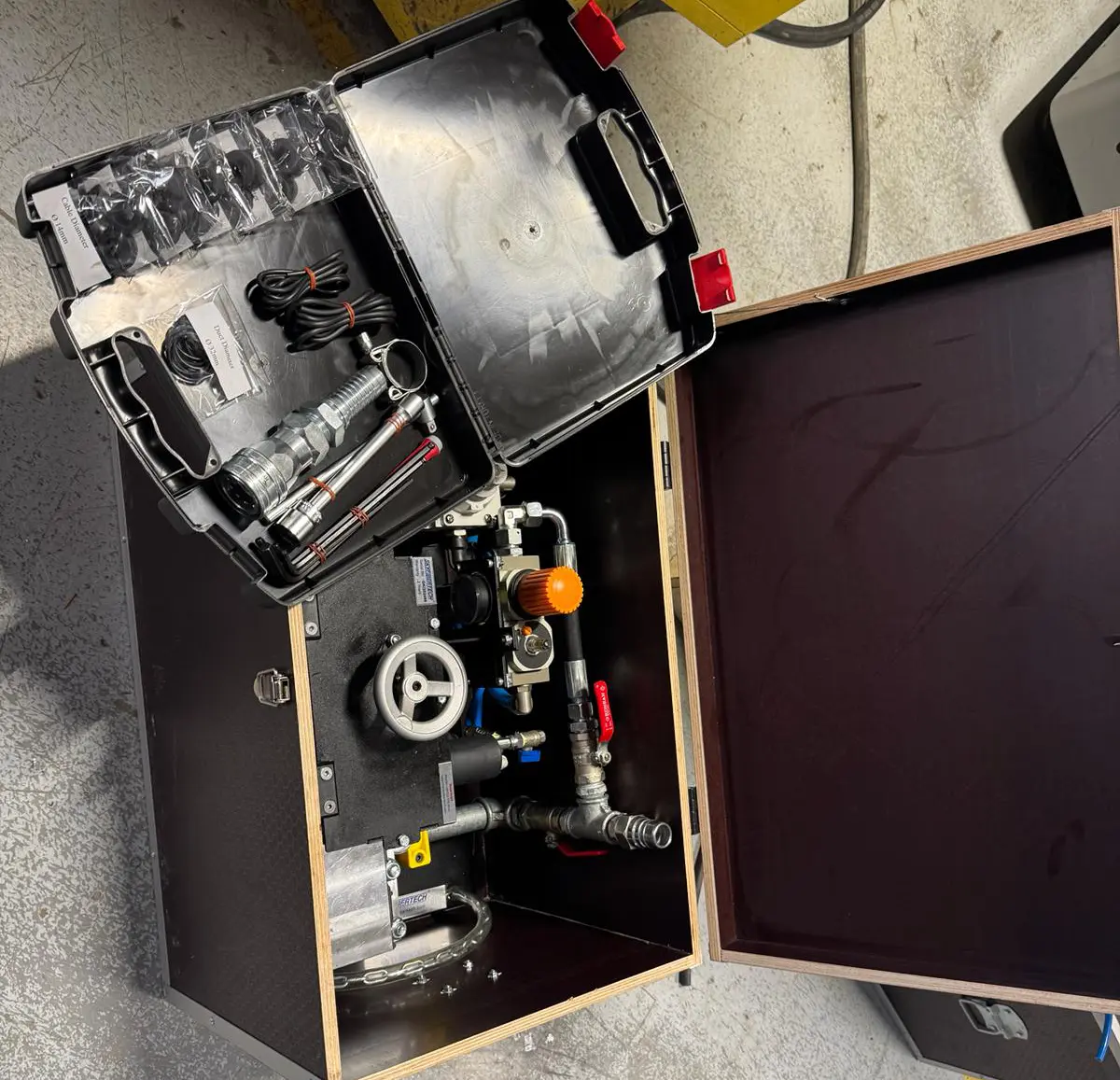

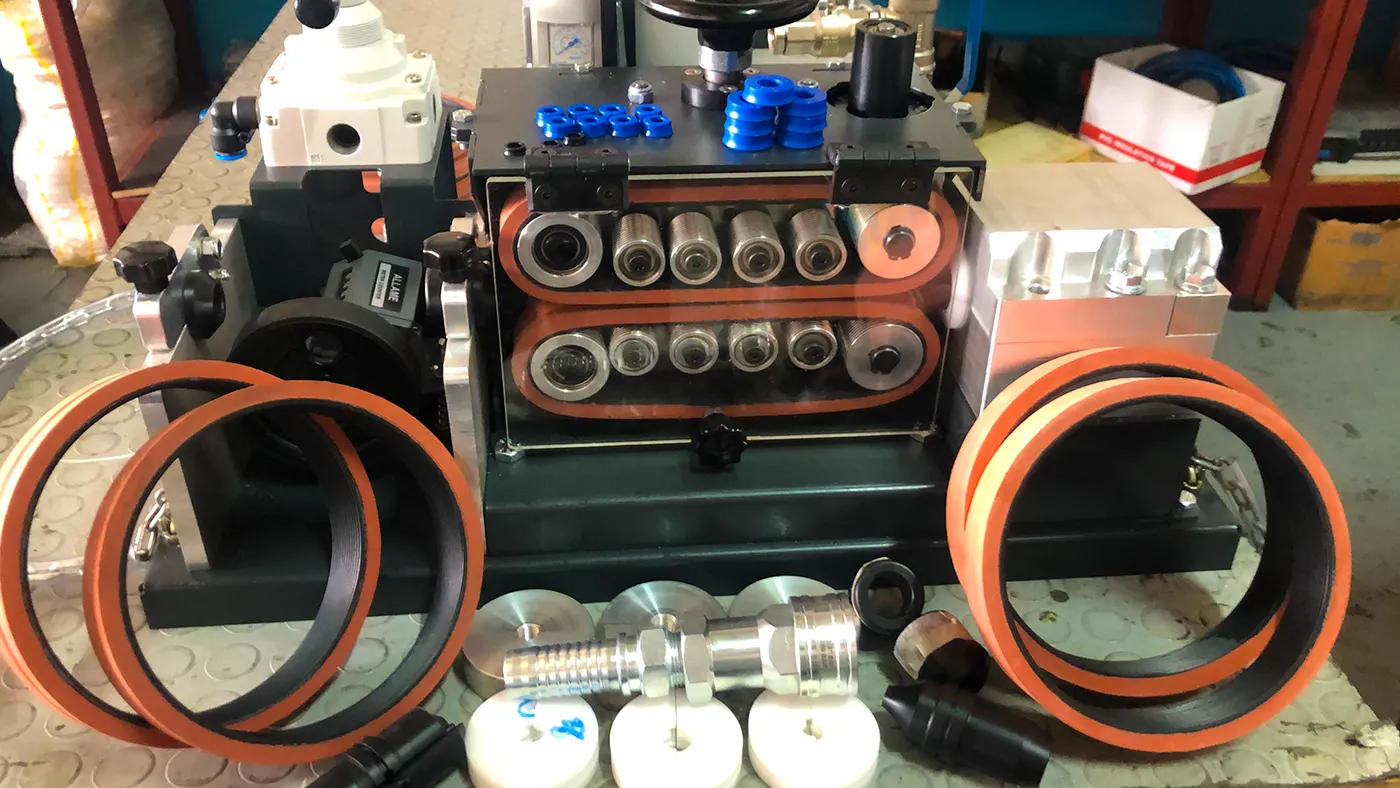

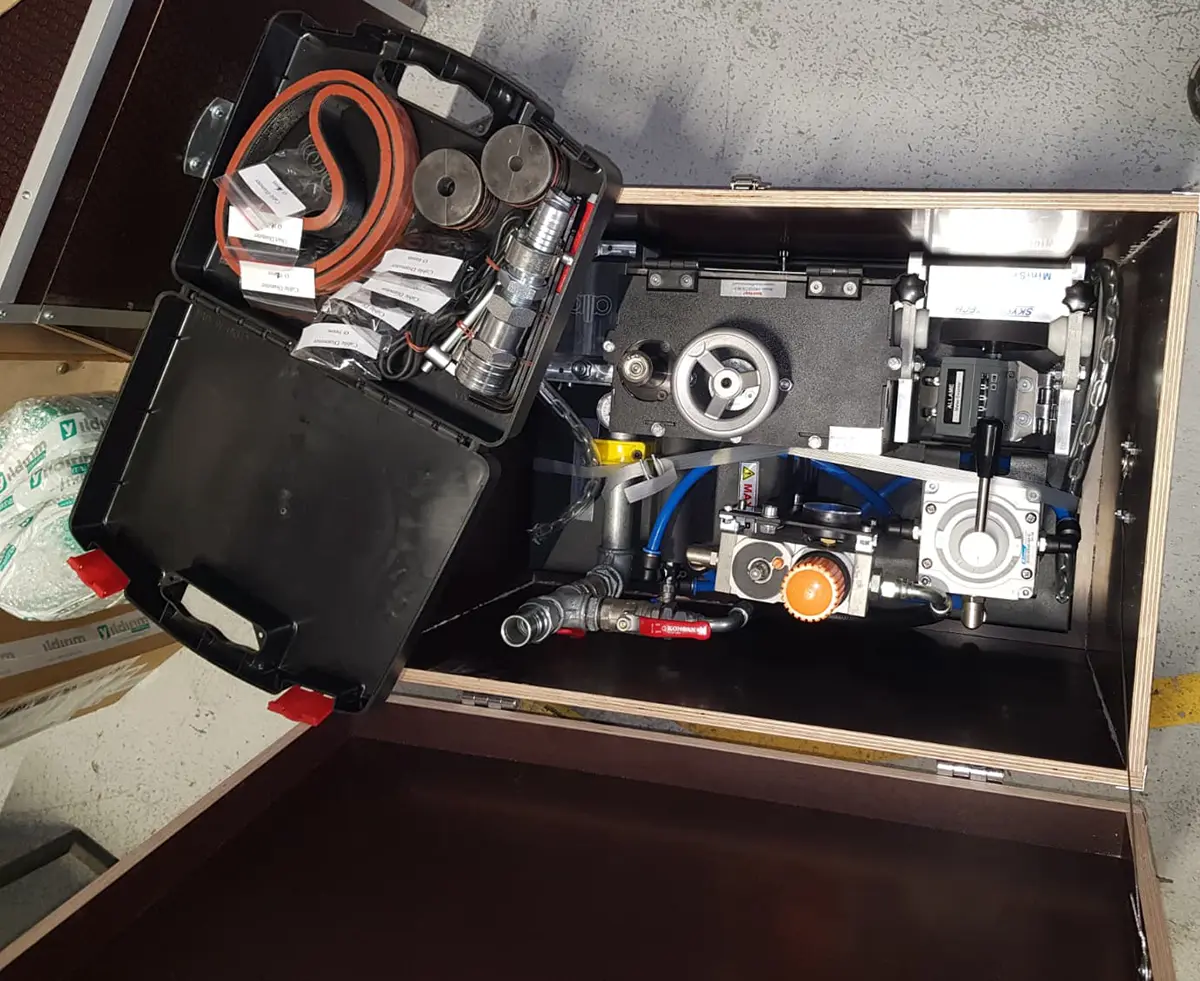

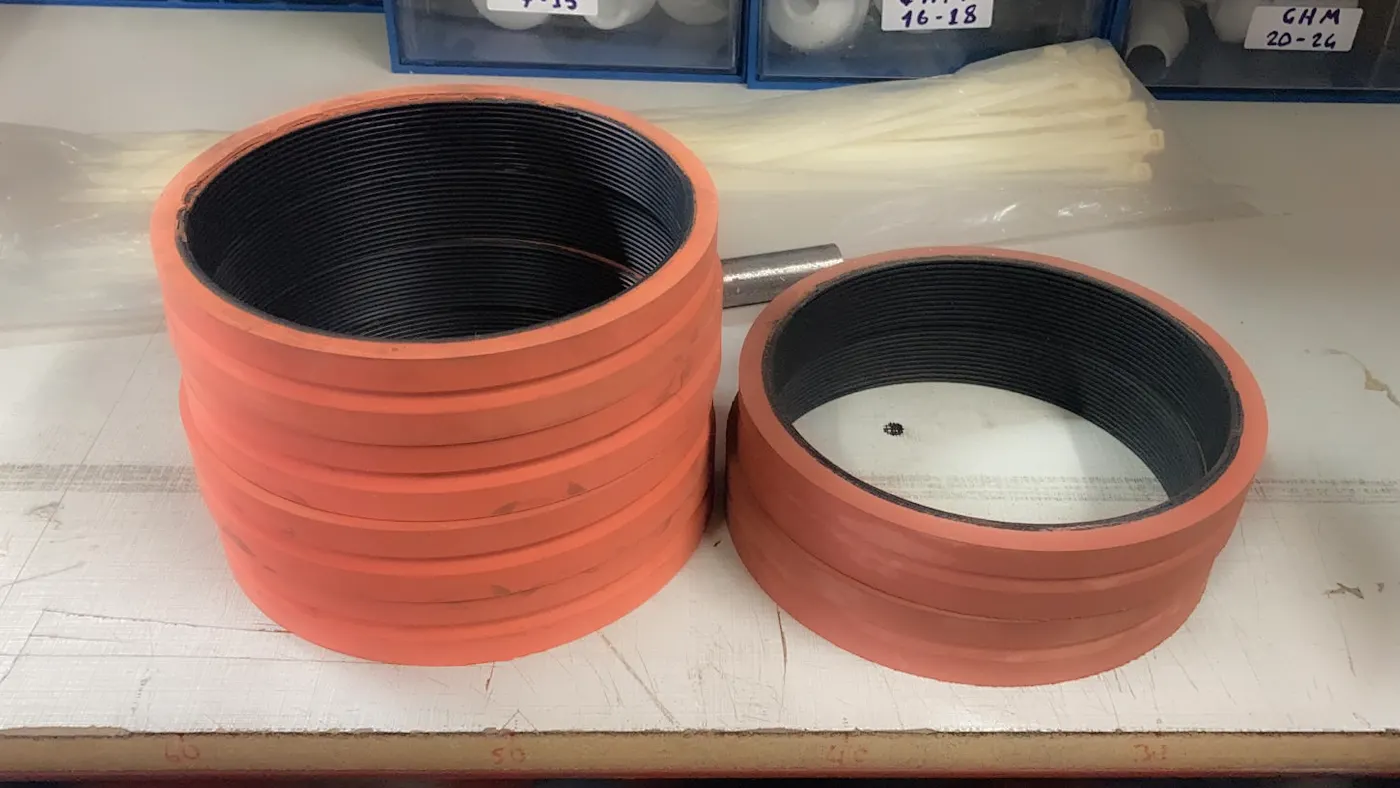

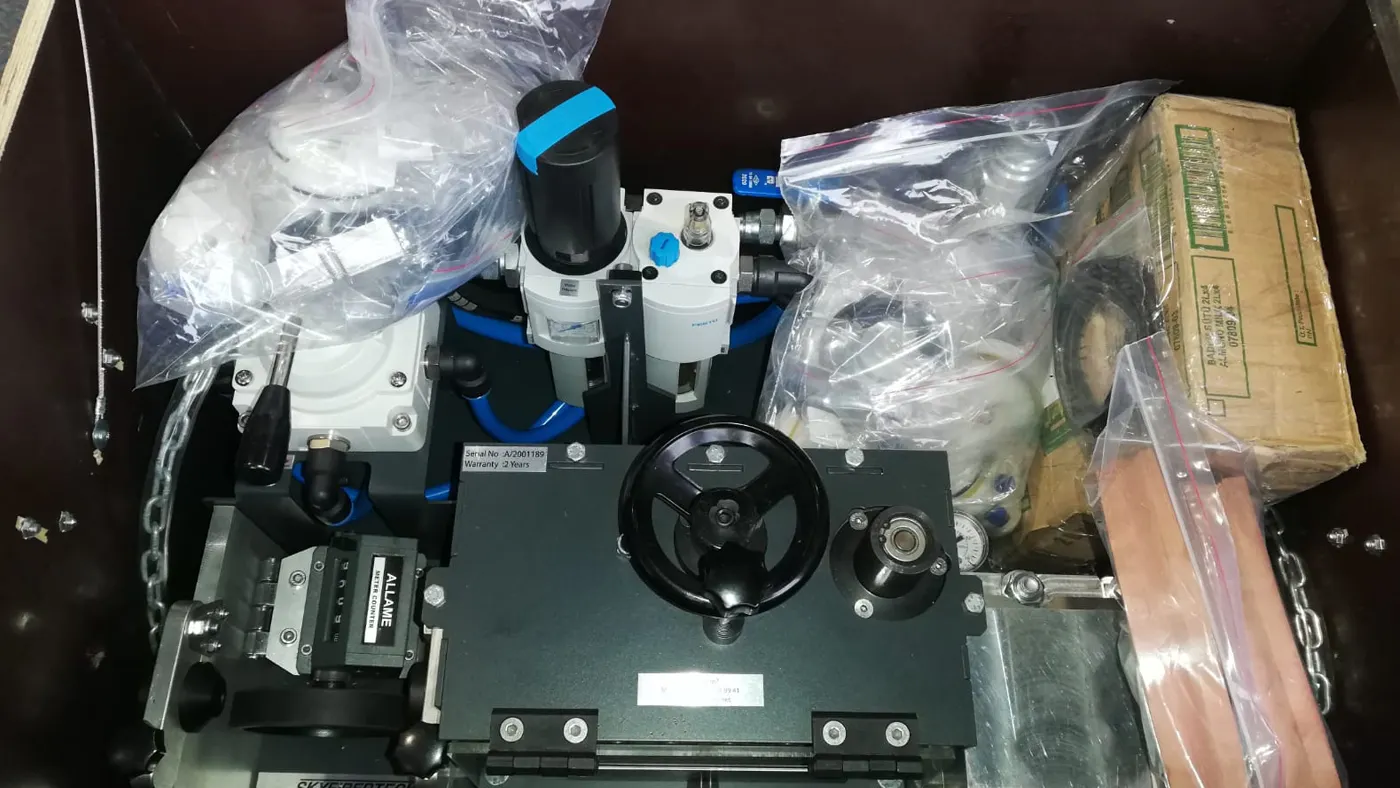

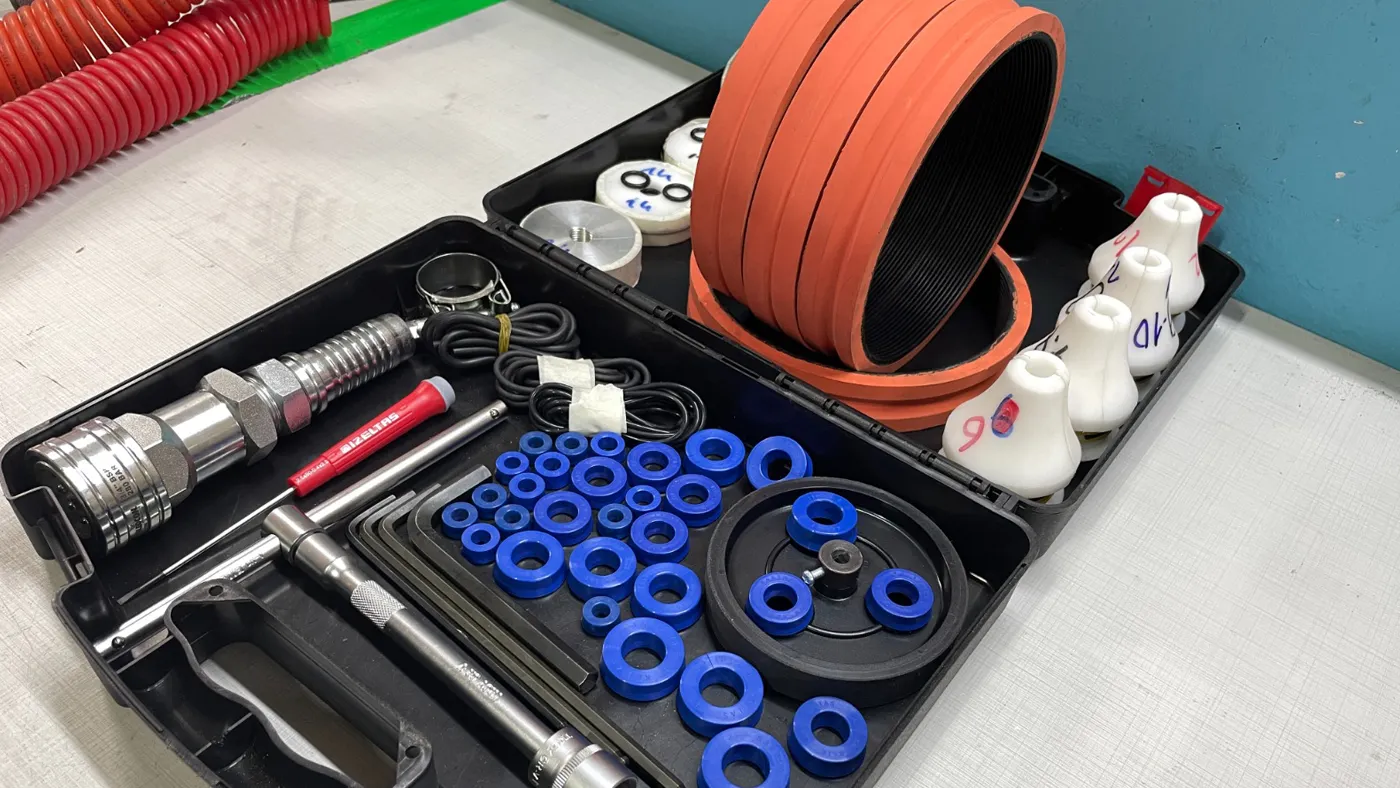

Belts are quick to swap. The MiniSky Cable Blowing Machine includes seals, adapters, and spare parts for each supported size. It supports both forward and backward motion.
Digital counter (speed and length)
Easy belt change system
Pipe pressure gauge
Quick-connect parts

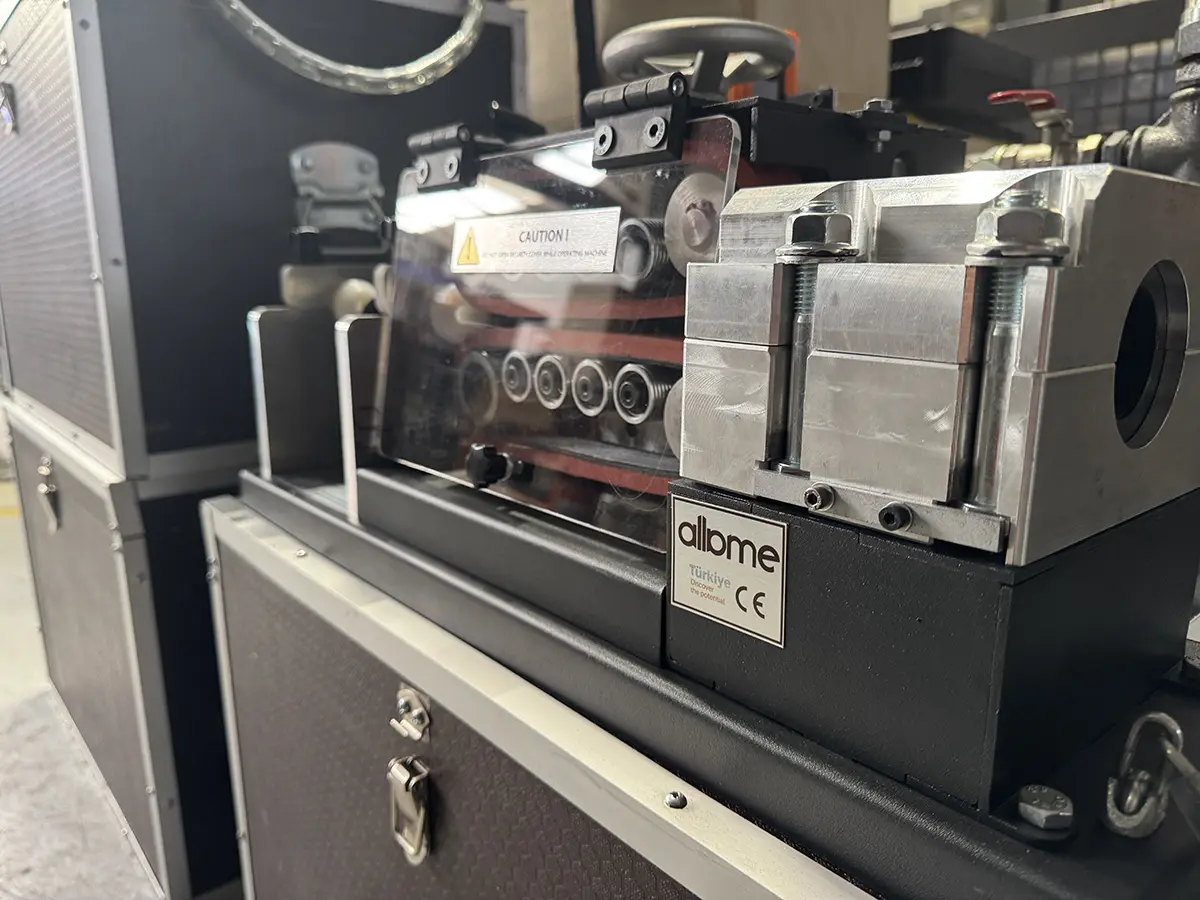

Safety hood
HDPE connectors for pipes from 8 mm up to 63 mm

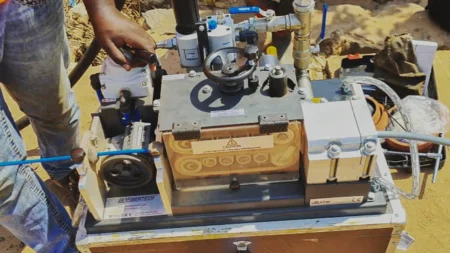

It is ideal for telecom, FTTH / FTTX, industrial networks, airports, pipeline projects, and infrastructure work.

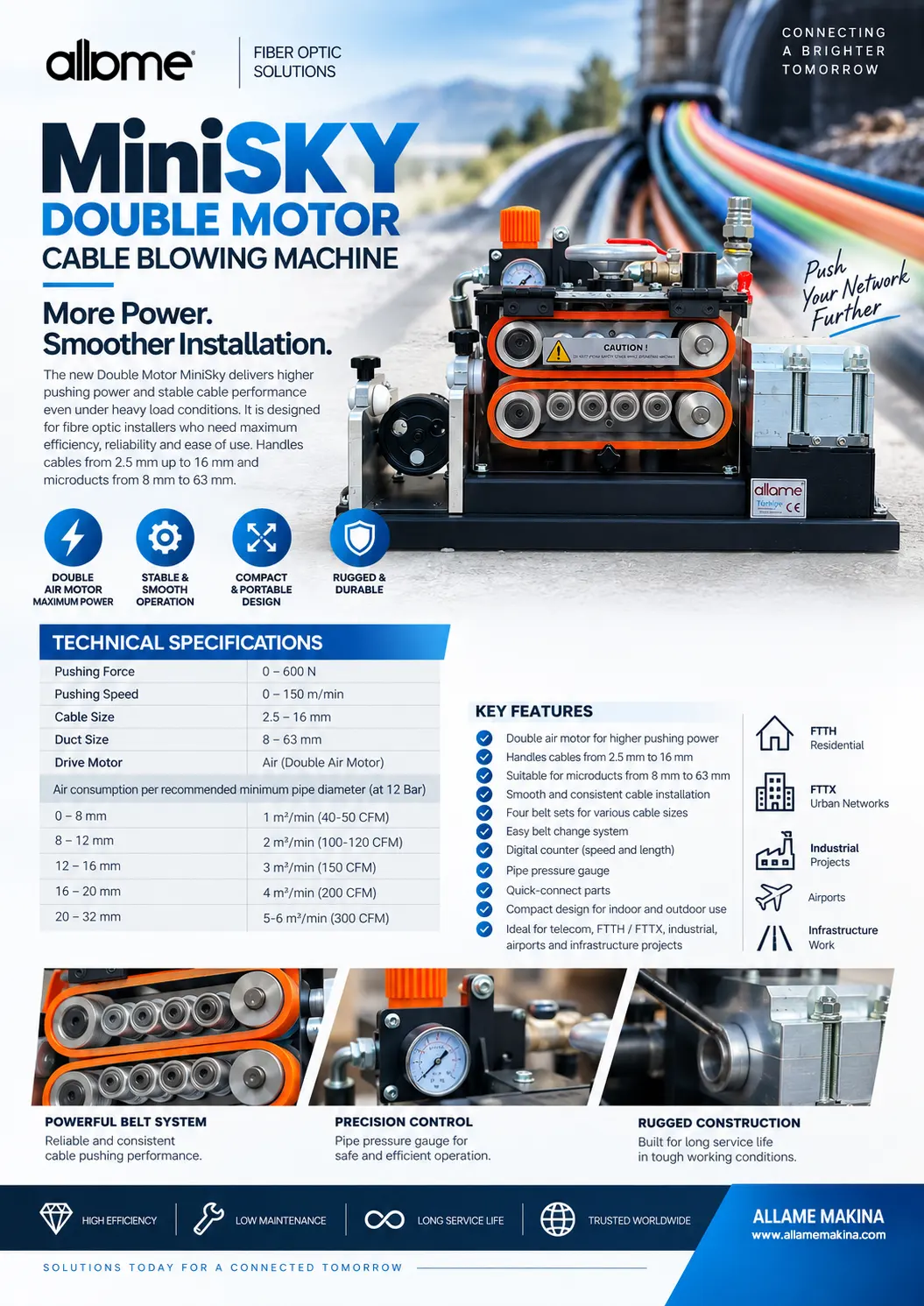

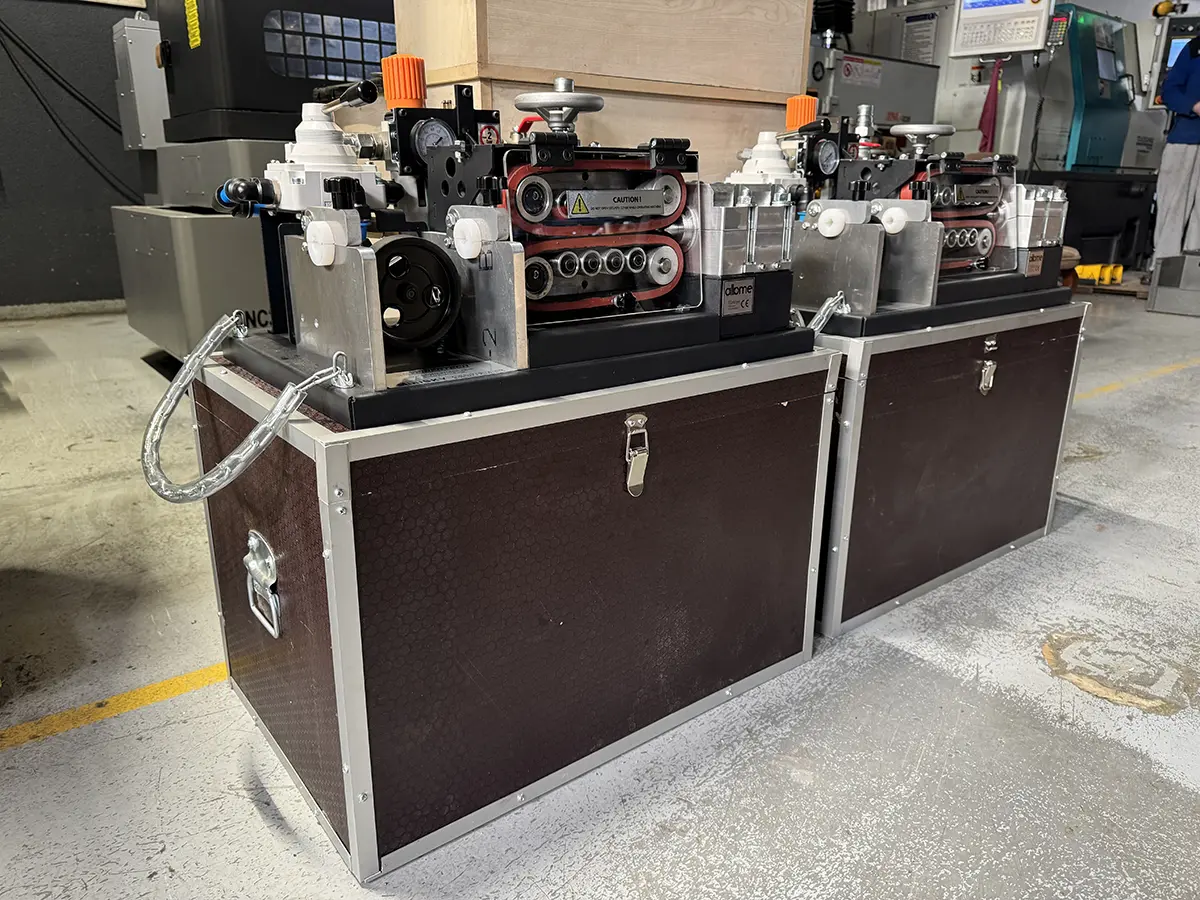

DOUBLE MOTOR MINISKY
The Double Motor option delivers more power and smoother cable blowing for tough or long-distance jobs. With two synchronized air motors, MiniSky keeps steady air pressure and ensures consistent performance even under heavy load. This setup improves speed, control, and overall efficiency during fiber cable installation.
If you need extra power, you can also order the MiniSky in its Double Motor version for enhanced performance.
| Pushing Force: | 0 – 300 N |
| Pushing Speed: | 0 – 150 m/min |
| Cable Size : | 2,5 – 16 mm |
| Duct Size : | 8 – 63 mm |
| Drive Motor : | Air |
| Air consumption per recommended minimum pipe diameter (at 12Bar): | |
| 0 – 8mm : | 1m³/min 40-50 CFM |
| From 8 to 12mm: | 2m³/min 100-120 CFM |
| From 12mm to 16mm : | 3m³/min 150 CFM |
| From 16mm to 20mm : | 4m³/min 200 CFM |
| From 20mm to 32mm : | 5-6m³/min 300 CFM |
Skyfibertech is Allame Makina’s brand dedicated to advanced fiber optic cable blowing technology. Built with precision and durability, our machines deliver maximum efficiency in fiber installation projects. From air blowing machines to cable blowing accessories and testing equipment, Skyfibertech provides a complete range of solutions. Trusted worldwide, it simplifies and accelerates fiber network construction with powerful performance, easy operation, and long-lasting reliability.
