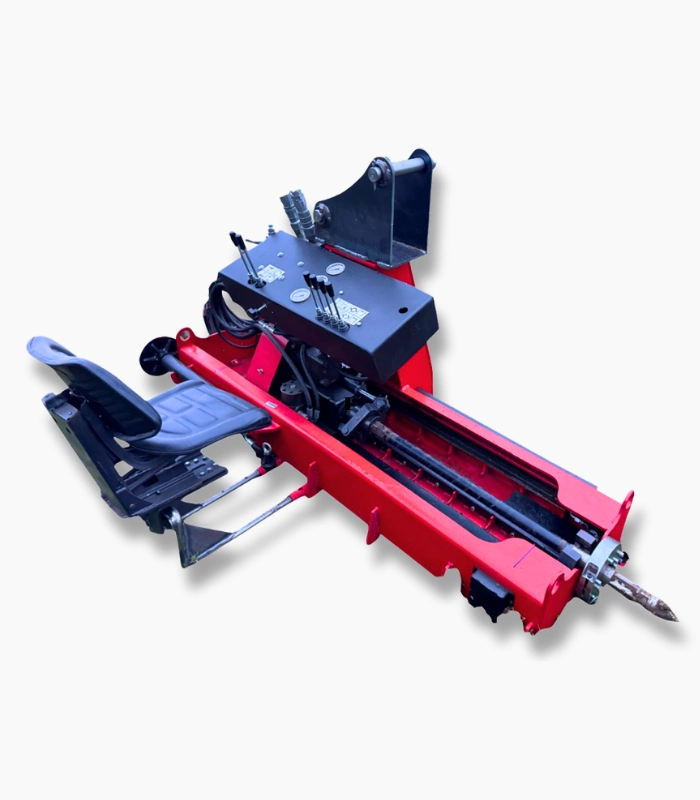

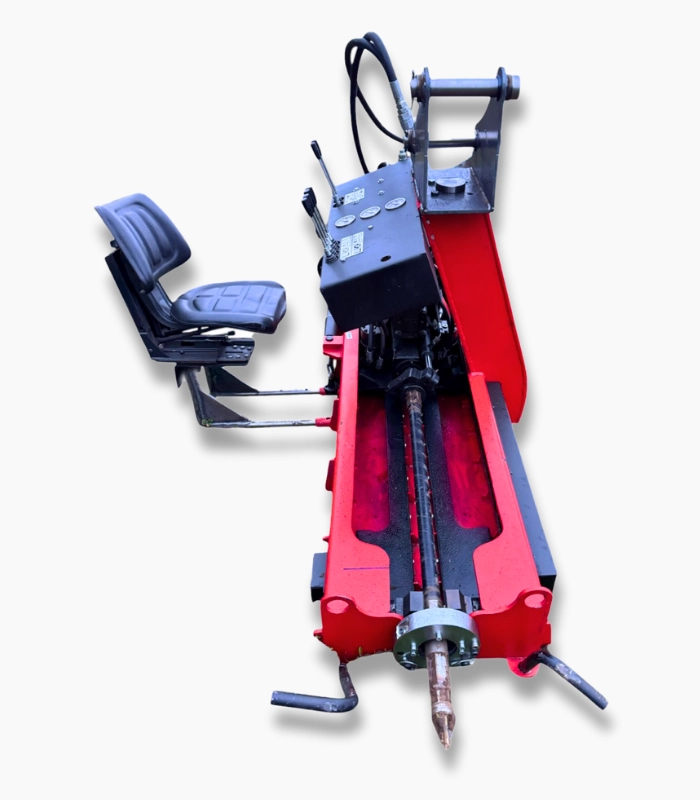

Drilljet HD60
The DRILLJET HD60 by SKYDRILLTECH is an advanced Horizontal Directional Drilling (HDD) machine designed to deliver exceptional performance in a compact and durable package. With cutting-edge engineering and robust features, the DRILLJET HD60 is the perfect choice for urban areas, confined spaces, and challenging ground conditions.
Description
Powerful and Compact Horizontal Directional Drilling (HDD) Solution
The DRILLJET HD60 by SKYDRILLTECH is an advanced Horizontal Directional Drilling (HDD) machine designed to deliver exceptional performance in a compact and durable package. With cutting-edge engineering and robust features, the DRILLJET HD60 is the perfect choice for urban areas, confined spaces, and challenging ground conditions.
Unmatched Power and Precision
The DRILLJET HD60 is working (suggested) 55 kW power unit or simililar excavator, delivering a pullback and thrust force of 9.3 tons (46.4 kN) each. Its high spindle torque of 1426 Nm and rotation speed of 350 RPM ensure efficient and precise drilling operations.
Optimized Drilling Fluid System
The DRILLJET HD60 features a high-capacity drilling fluid pump capable of delivering a maximum volume of 85 liters per minute at 80 bar pressure. This system ensures optimal performance even in tough ground conditions.
Technicial Specifications
| Parameter | Value |
|---|---|
| Pullback Force | 9 Ton (93 kN) |
| Thrust Force | 9 Ton (93 kN) |
| Driving Power | 55 kW |
| Spindle Torque | 1426 Nm |
| Spindle Rod Rotation Speed | 350 RPM |
| Drilling Fluid Max Volume | 85 l/min |
| Drilling Fluid Max Pressure | 80 Bar |
| Drilling Speed | 85 m/min |
| Pilot Bore Diameter | Ø100 mm |
| Max Backream Diameter | Ø180 mm |
| Max Drilling Length | 80 m |
| Drill Rods Diameter | Ø52 mm |
| Drill Rods Length | 1000 mm |
| Min Turning Radius (Bend) | 15 m |
| Weight | 656 Kg |
| Machine Dimensions (LxWxH) | 2050 x 850 x 1250 mm |
